TPT7740-S 4-Channel Enhanced High-Performance Digital Isolator

TPT7740-S Description

TPT774x-S 4-Channel Enhanced High-Performance Digital Isolator .
150-Mbps Data Rate. 5-kV RMS Isolation Rating (WSOP). ±200-kV/μs typ Static CMTI, ±150-kV/μs typ Dynamic CMTI. L.

TPT7740-S Applications

* with AEC-Q100 Reliability Test Applications The TPT774x devices are high-performance, 4-channel digital isolators with 5000-VRMS (WSOP16), and 3750-VRMS (SOP16, QSOP16) isolation ratings per UL 1577. These devices are also to be certified by VDE, UL, CSA, TUV, CQC, and CB. The TPT774x devices provi

📥 Download Datasheet

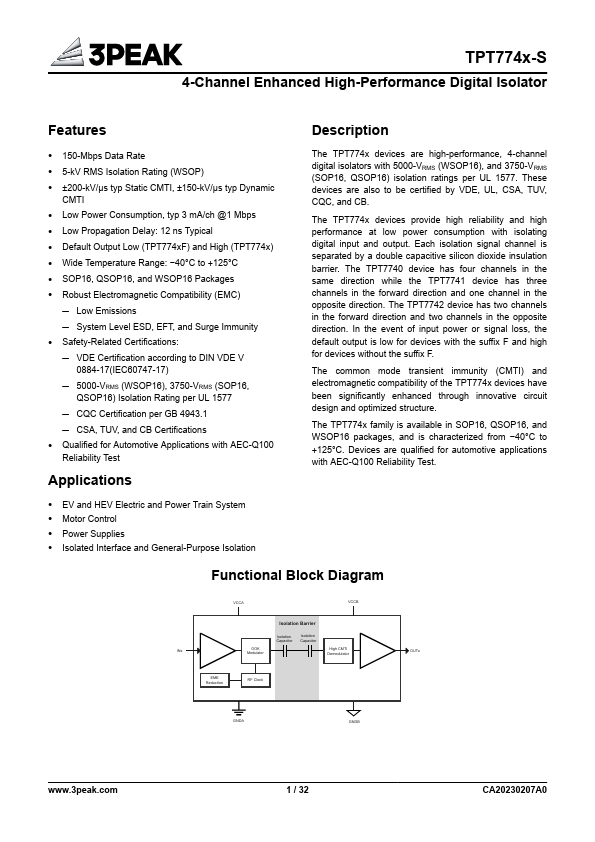

Preview of TPT7740-S PDF

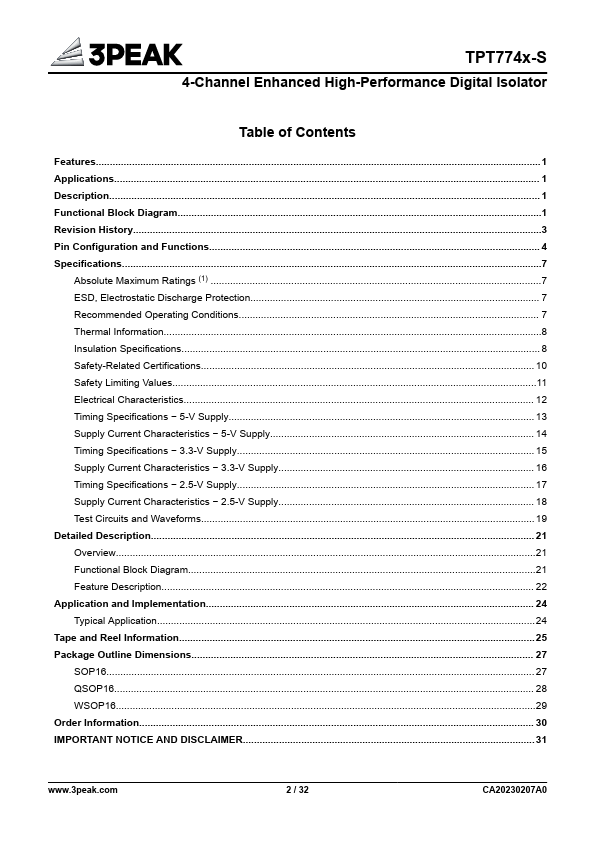

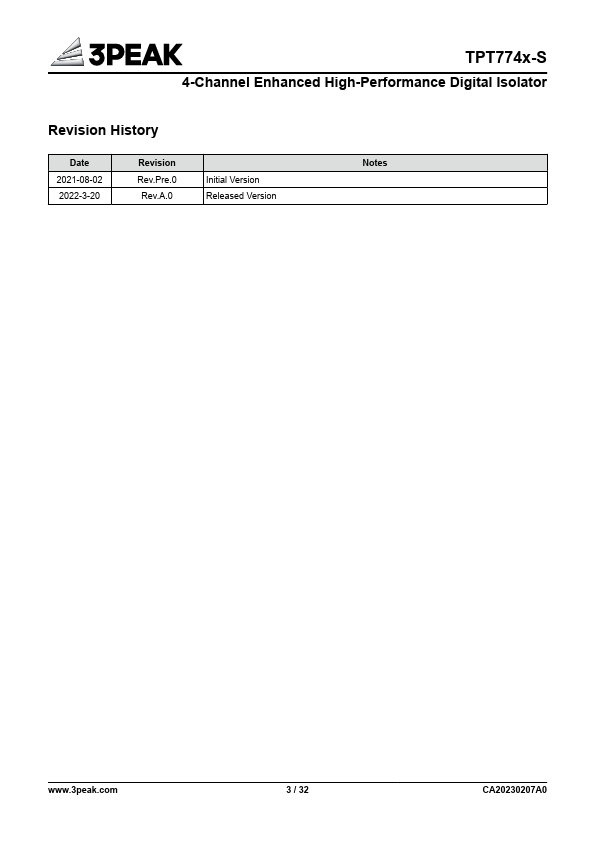

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT7740-S
Manufacturer
3PEAK
File Size
1.35 MB
Datasheet
TPT7740-S-3PEAK.pdf
Description
4-Channel Enhanced High-Performance Digital Isolator
