TPT7740 4-Channel Enhanced High-Performance Digital Isolator

TPT7740 Description

TPT774x 4-Channel Enhanced High-Performance Digital Isolator .
150-Mbps Data Rate. 5-kV RMS Isolation Rating (WSOP). ±200-kV/μs typ Static CMTI, ±150-kV/μs typ Dynamic CMTI. L.

TPT7740 Applications

* The TPT774x devices are high-performance, 4-channel digital isolators with 5000-VRMS (WSOP16), and 3750-VRMS (SOP16, QSOP16) isolation ratings per UL 1577. These devices are also to be certified by VDE, UL, CSA, TUV, CQC, and CB. The TPT774x devices provide high reliability and high performance at

📥 Download Datasheet

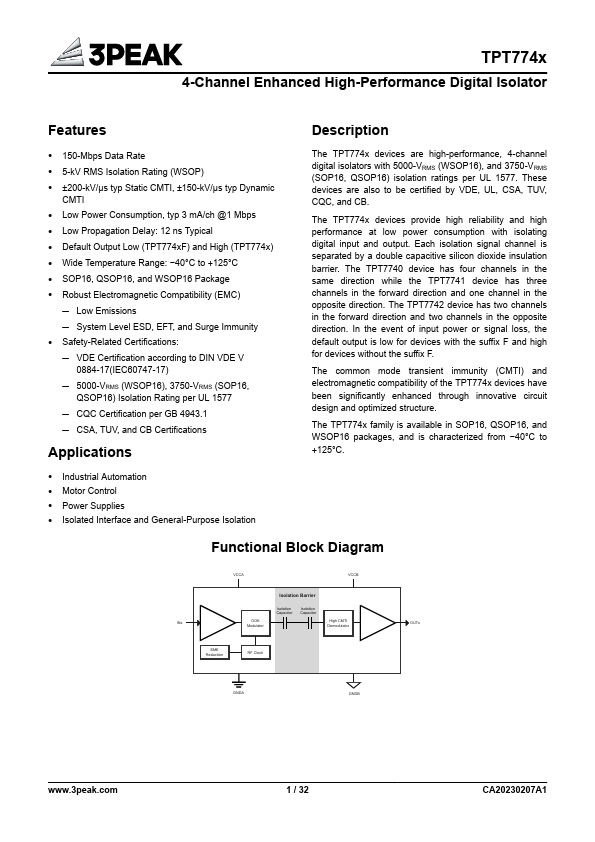

Preview of TPT7740 PDF

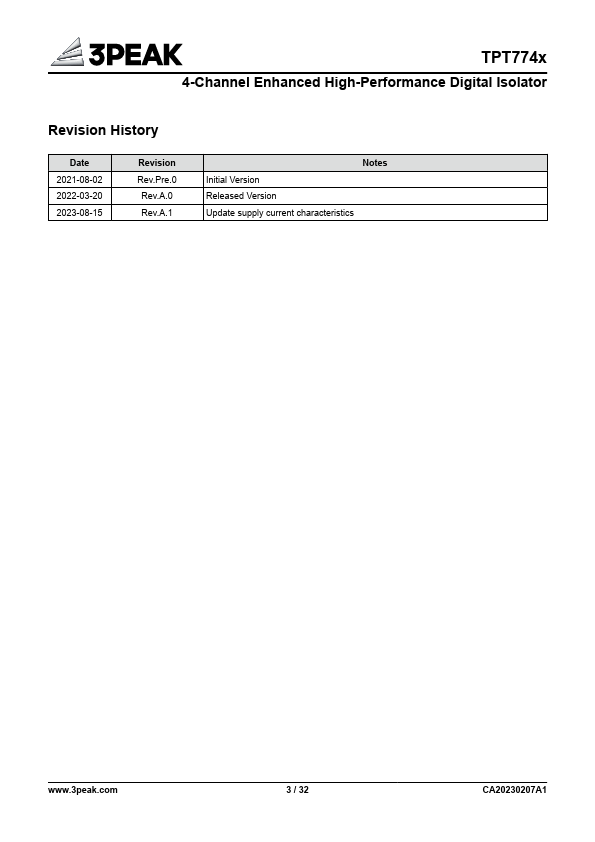

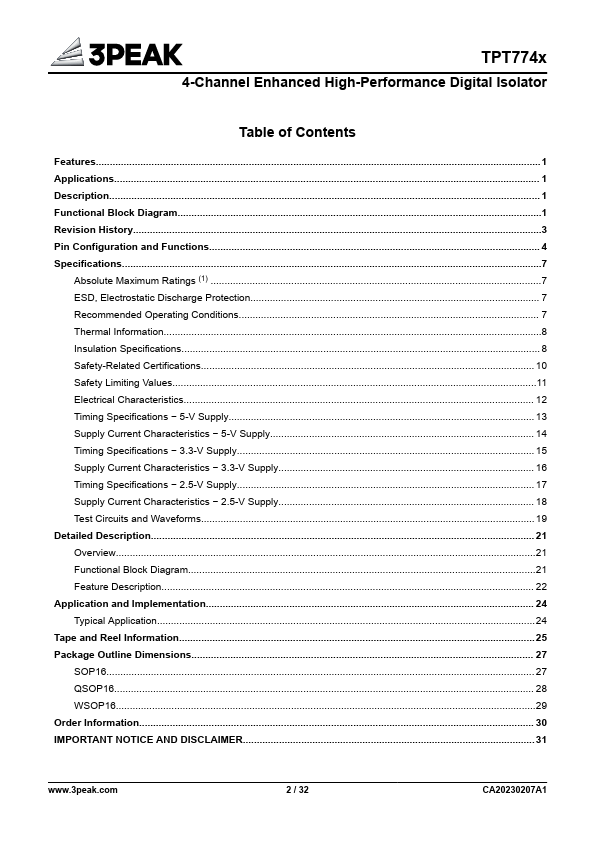

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT7740
Manufacturer
3PEAK
File Size
1.35 MB
Datasheet
TPT7740-3PEAK.pdf
Description
4-Channel Enhanced High-Performance Digital Isolator
