TPT7742, TPT7740 4-Channel Enhanced High-Performance Digital Isolator

TPT7742 Description

TPT774x 4-Channel Enhanced High-Performance Digital Isolator .
150-Mbps Data Rate. 5-kV RMS Isolation Rating (WSOP). ±200-kV/μs typ Static CMTI, ±150-kV/μs typ Dynamic CMTI. L.

TPT7742 Applications

* The TPT774x devices are high-performance, 4-channel digital isolators with 5000-VRMS (WSOP16), and 3750-VRMS (SOP16, QSOP16) isolation ratings per UL 1577. These devices are also to be certified by VDE, UL, CSA, TUV, CQC, and CB. The TPT774x devices provide high reliability and high performance at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPT7742, TPT7740. Please refer to the document for exact specifications by model.

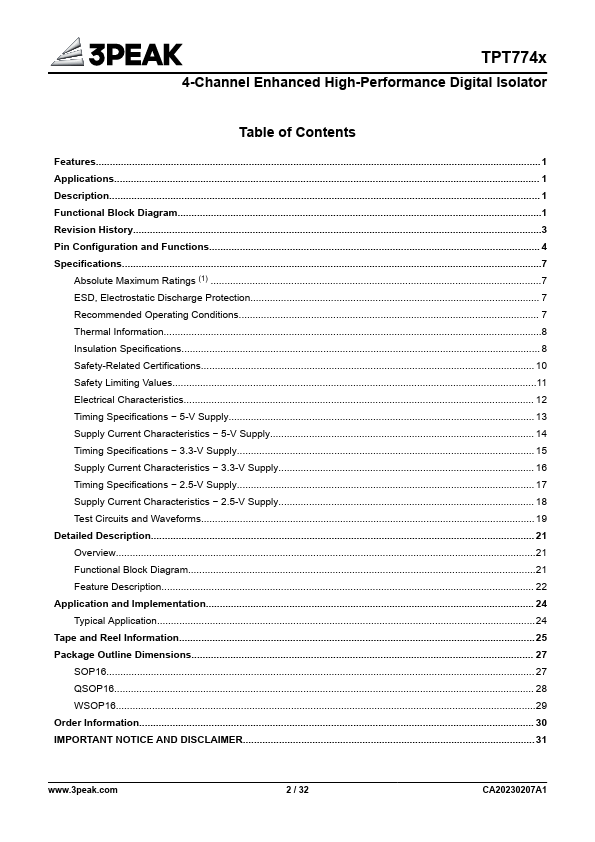

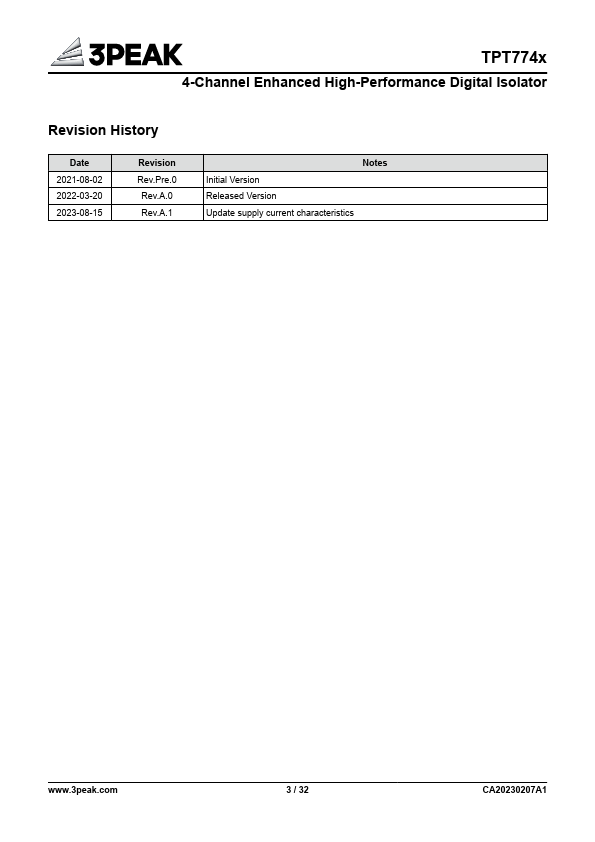

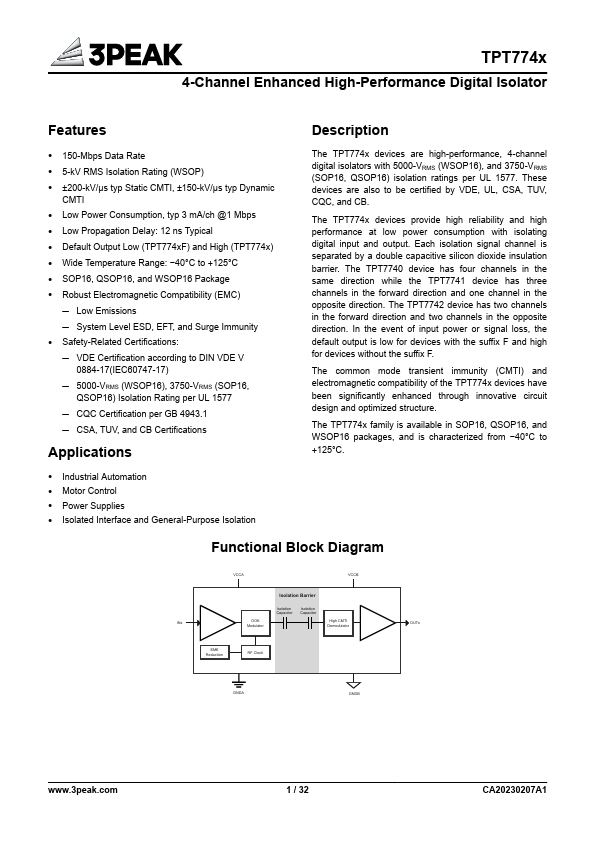

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT7742, TPT7740
Manufacturer
3PEAK
File Size
1.35 MB
Datasheet
TPT7740-3PEAK.pdf
Description
4-Channel Enhanced High-Performance Digital Isolator
Note
This datasheet PDF includes multiple part numbers: TPT7742, TPT7740.
Please refer to the document for exact specifications by model.
