TPT29555 I2C to 16-bit GPIO Expander

TPT29555 Description

TPT29555 I2C to 16-bit GPIO Expander with Interrupt .
The TPT29555 is a 16-bit GPIO expander with interrupt and weak pull-up resistors for I2C-bus applications.

TPT29555 Features

* I2C-bus to 16-bit GPIO expander
* Operating power supply voltage from 1.65 V to 5.5 V
* Low standby current consumption:
* 3.0 μA (typical at 5 V VCC)
* 1.5 μA (typical at 3.3 V VCC)
* 400 kHz Fast-mode I2C-bus
* 5 V tolerant I/Os
* Open-drain active LOW int

TPT29555 Applications

* Servers/Storages
* Routers (Telecom Switching Equipment)

📥 Download Datasheet

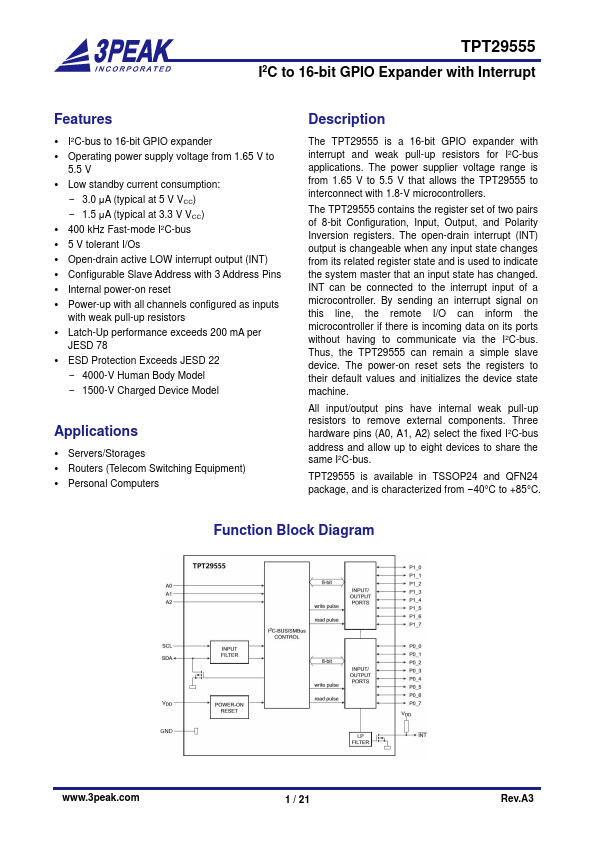

Preview of TPT29555 PDF

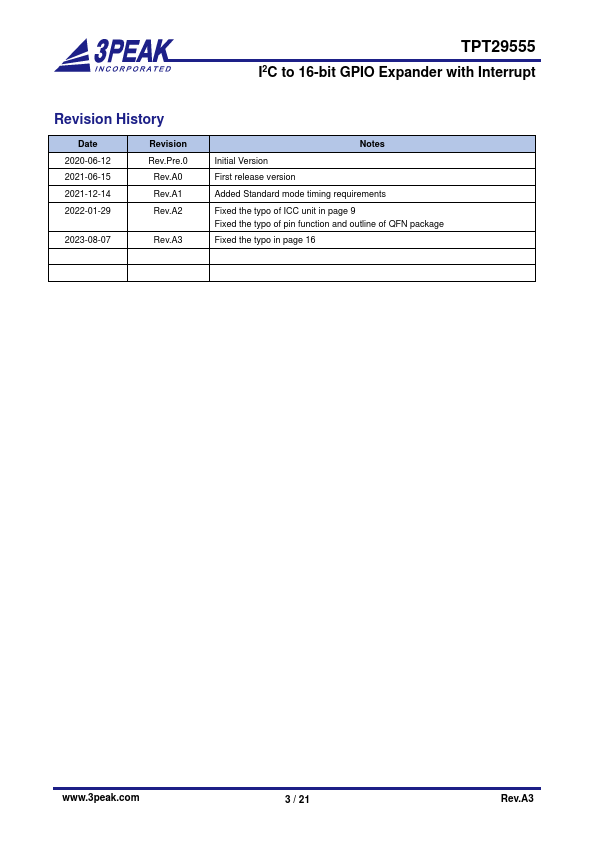

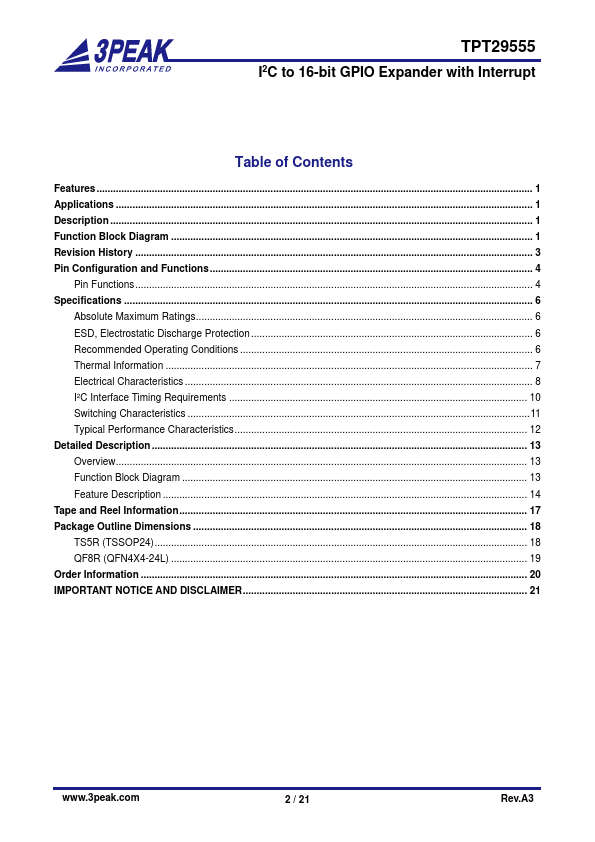

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT29555
Manufacturer
3PEAK
File Size
959.28 KB
Datasheet
TPT29555-3PEAK.pdf
Description
I2C to 16-bit GPIO Expander
