TPT29511B Hot-Swap I2C-BUS Buffer

TPT29511B Description

TPT29511B Hot-Swap I2C-BUS Buffer .
Bidirectional Translator of I2C Applications and SMBus Compatible. Support Fast-mode Plus, up to 1-Mbps Data Rate. High-I.

TPT29511B Applications

* and SMBus Compatible
* Support Fast-mode Plus, up to 1-Mbps Data Rate
* High-Impedance SCL1, SDA1, SCL2, and SDA2 Pins for EN = LOW
* 1-V Pre-Charge on All SDA and SCL Lines Prevents Corruption during Live Board Insertion
* Operating Power Supply Range from 2.3 V to 5

📥 Download Datasheet

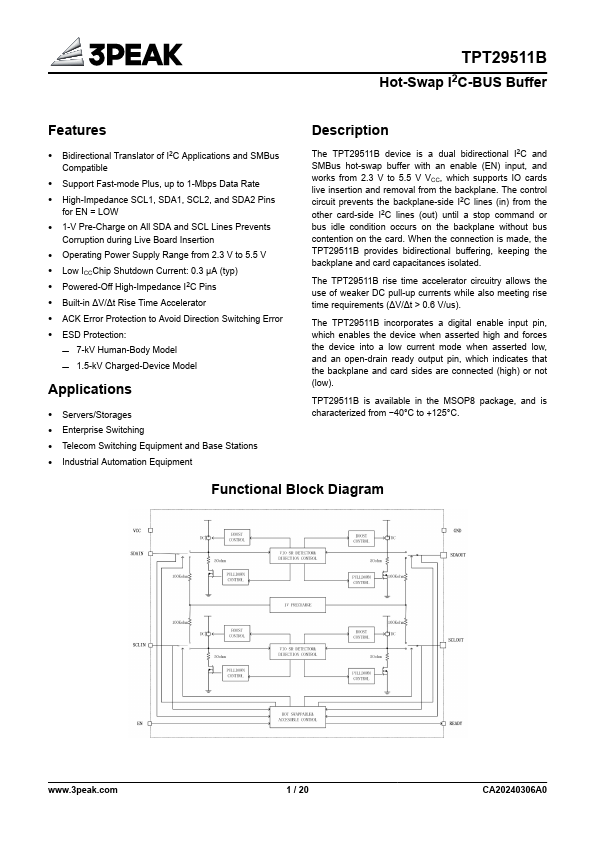

Preview of TPT29511B PDF

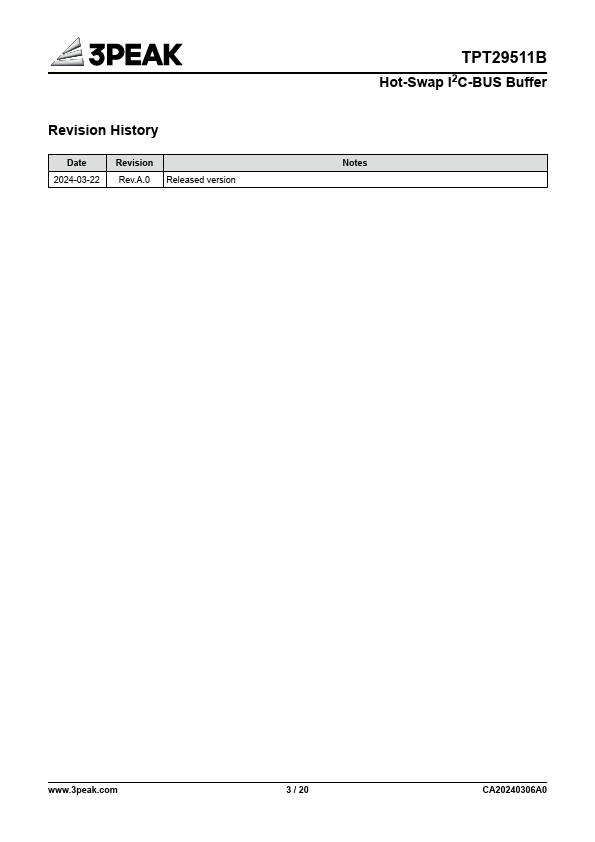

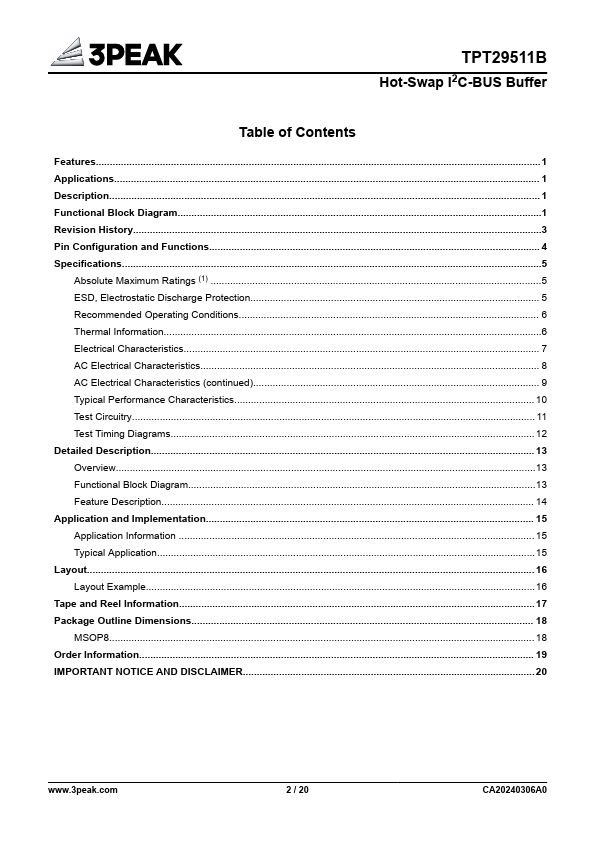

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT29511B
Manufacturer
3PEAK
File Size
1.79 MB
Datasheet
TPT29511B-3PEAK.pdf
Description
Hot-Swap I2C-BUS Buffer
