TPT29545 4-channel I2C Switch

TPT29545 Description

TPT29545 4-channel I2C Switch with Interrupt and Reset .
The TPT29545 is a 1:4 bidirectional translating I2C switch.

TPT29545 Features

* Bidirectional Translator of 1:4 I2C Switch
* Four Active-Low Interrupt Inputs
* Active-Low Interrupt Output and Active-Low Reset Input
* Two Address Terminals, Allowing up to Four Devices on the I2C Bus
* Operating Power-Supply Voltage Range of 2.3 to 5.5V
* Allow Voltage-L

TPT29545 Applications

* Servers/Storages
* Routers (Telecom Switching Equipment)
* Factory Automation

📥 Download Datasheet

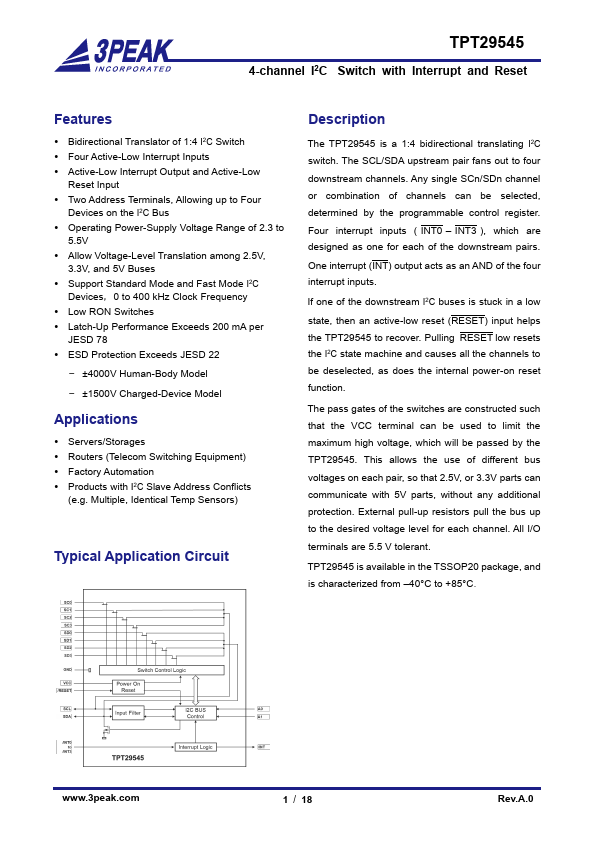

Preview of TPT29545 PDF

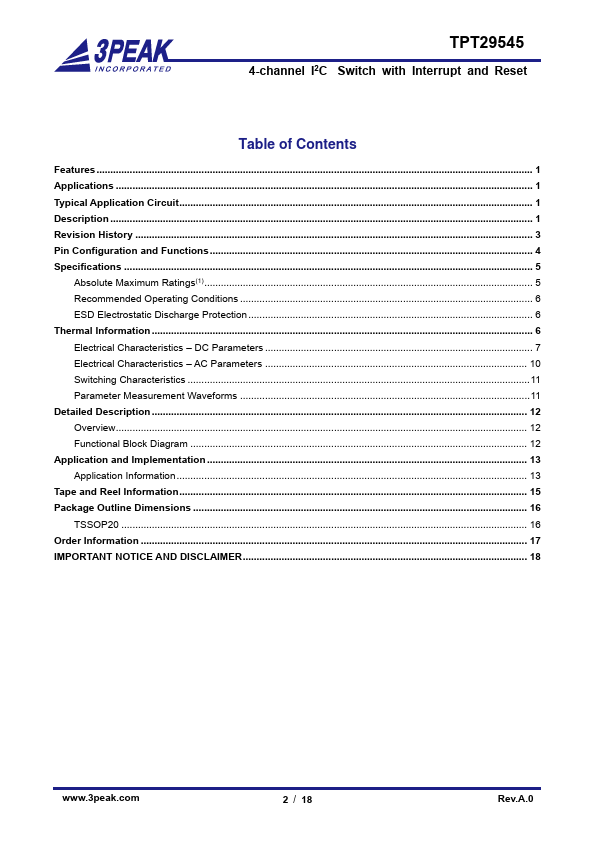

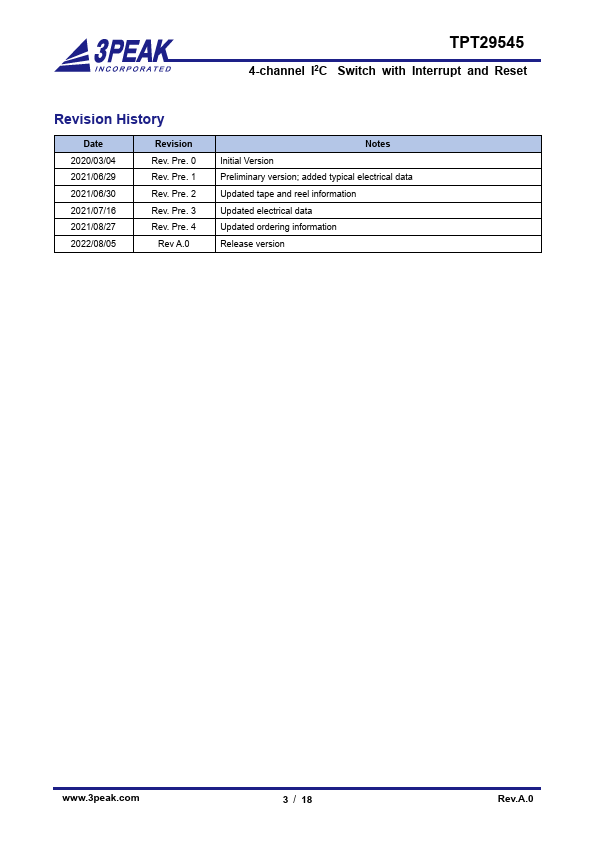

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT29545
Manufacturer
3PEAK
File Size
698.49 KB
Datasheet
TPT29545-3PEAK.pdf
Description
4-channel I2C Switch
