TPT29546A 4-channel I2C Switch

TPT29546A Description

TPT29546A 4-channel I2C Switch with Reset .
The TPT29546 is a 1:4 bidirectional translating I2C switch.

TPT29546A Features

* Bidirectional Translator of 1:4 I2C Switch
* Active-Low Reset Input
* Two Address Terminals, Allowing up to Four Devices on the I2C Bus
* Operating Power-Supply Voltage Range of 2.3 to 5.5V
* Allow Voltage-Level Translation among 2.5V, 3.3V, and 5V Buses
* Support Standard

TPT29546A Applications

* Servers/Storages
* Routers (Telecom Switching Equipment)
* Factory Automation

📥 Download Datasheet

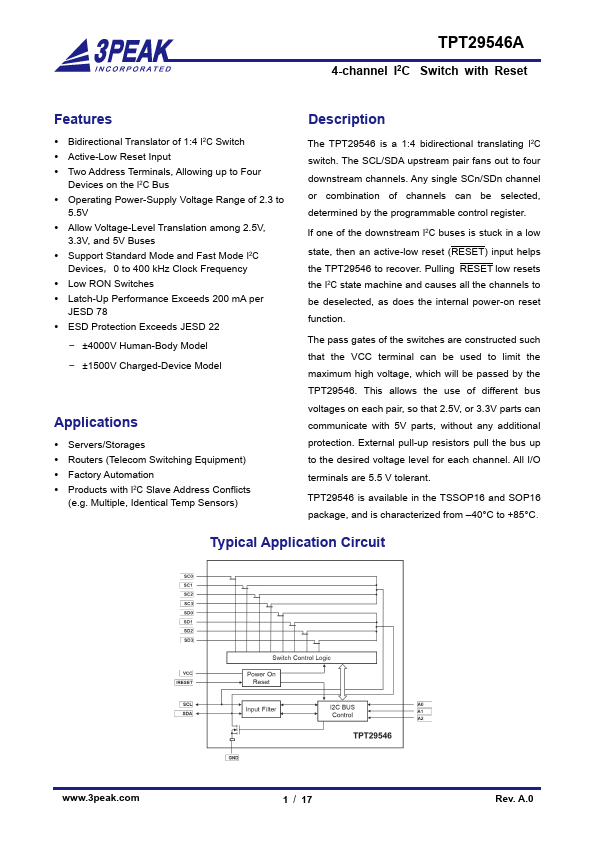

Preview of TPT29546A PDF

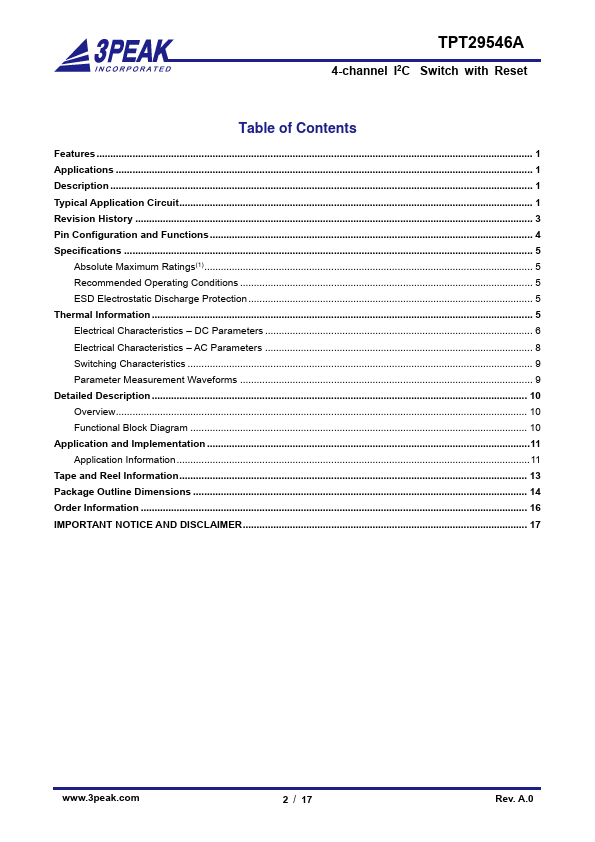

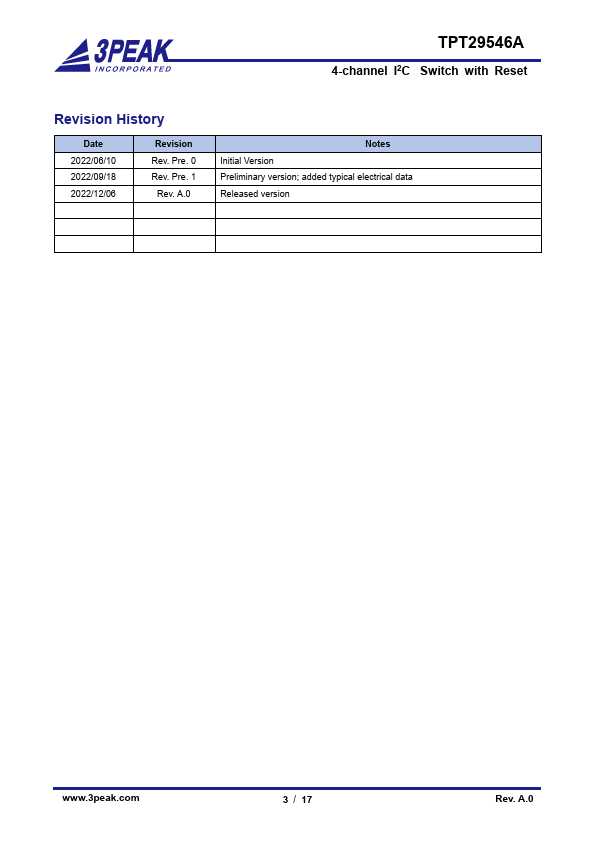

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT29546A
Manufacturer
3PEAK
File Size
655.23 KB
Datasheet
TPT29546A-3PEAK.pdf
Description
4-channel I2C Switch
