TPT24857 memory card Voltage-Level Translator

3PEAK

Description

TPT24857 SD 3.0-SDR104 compliant memory card Voltage-Level Translator .
The TPT24857 is an SD 3.

📥 Download Datasheet

TPT24857 Datasheet Preview — Preview of TPT24857 PDF

Datasheet Specifications

Part number: TPT24857
Manufacturer: 3PEAK
File Size: 672.28 KB
Datasheet: TPT24857-3PEAK.pdf
Description: memory card Voltage-Level Translator

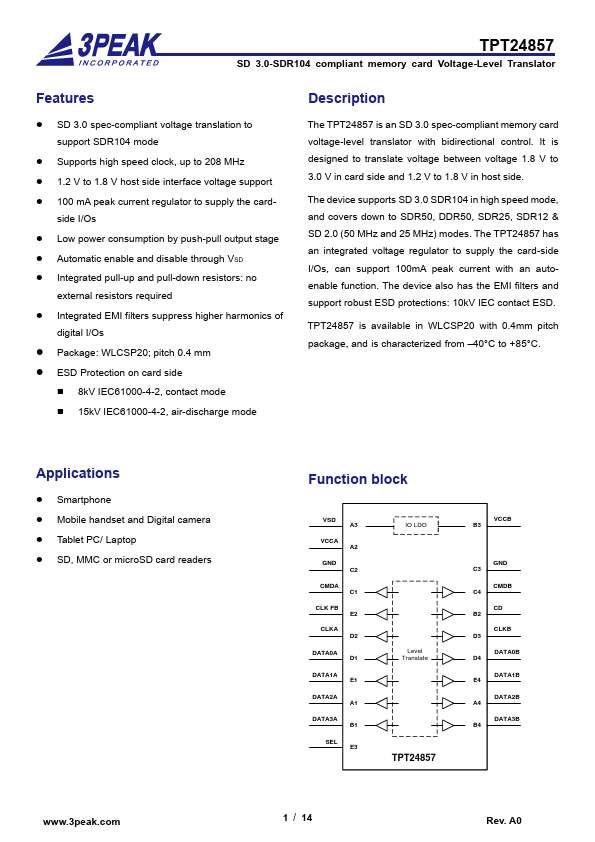

Features

* SD 3.0 spec-compliant voltage translation to support SDR104 mode
* Supports high speed clock, up to 208 MHz
* 1.2 V to 1.8 V host side interface voltage support
* 100 mA peak current regulator to supply the card- side I/Os
* Low power consumption by push-pull output stage

Applications

* Smartphone
* Mobile handset and Digital camera
* Tablet PC/ Laptop
* SD, MMC or microSD card readers Function block VSD A3 VCCA A2 GND C2 CMDA C1 CLK FB E2 CLKA D2 DATA0A D1 DATA1A E1 DATA2A A1 DATA3A B1 SEL E3 IO LDO Level Translate TPT24857 VCCB B3 GND C3 CMDB C4 CD B2 CLKB D
