TPC5161 16bit SAR ADC

TPC5161 Description

TPC5161 16bit SAR ADC with Pseudo differential input .
The TPC5161 is an 16-bit analog-to-digital converter (ADC).

TPC5161 Features

* 16bit SAR ADC without zero latency
* Throughput speed: 600 KSPS
* Pseudo differential analog input
* 0V to VREF
* External VREF
* 2.5V to VDD
* High linearity
* INL:±1.5 LSB typical
* DNL:±0.5 LSB typical
* THD:
* 102dB at 1kHz

TPC5161 Applications

* Data acquisitions
* Instruments
* Industry Measurement and Control
* Medical Equipment

📥 Download Datasheet

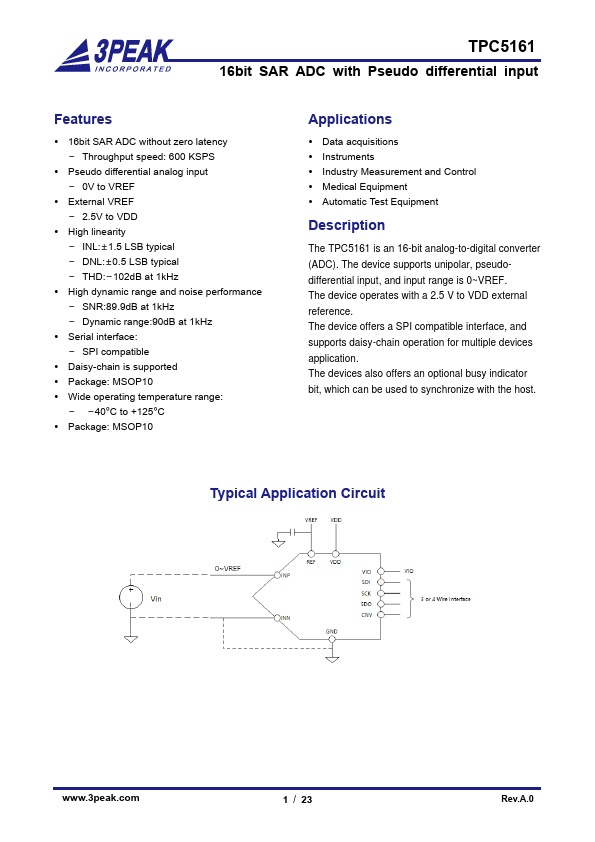

Preview of TPC5161 PDF

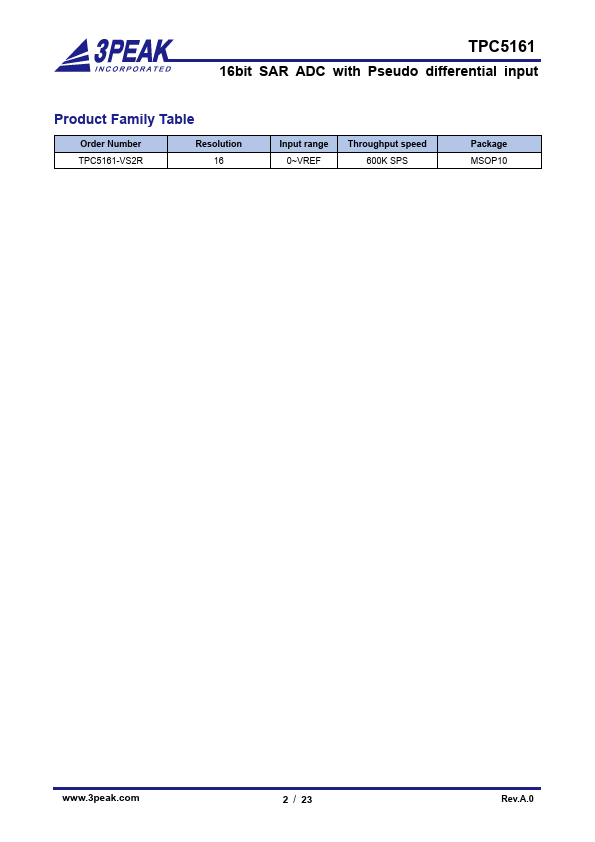

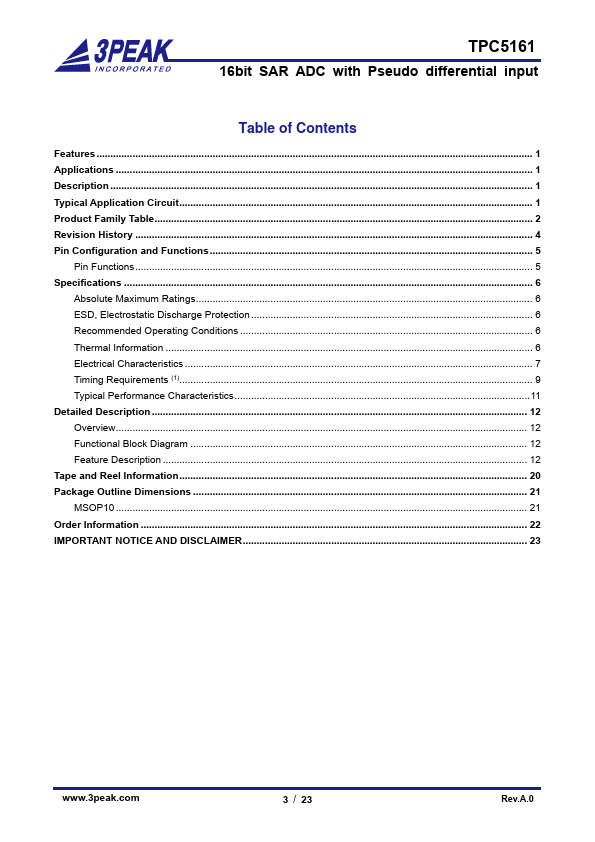

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPC5161
Manufacturer
3PEAK
File Size
2.44 MB
Datasheet
TPC5161-3PEAK.pdf
Description
16bit SAR ADC
