TPC5180 18-Bit SAR ADC

TPC5180 Description

TPC5180 18-Bit SAR ADC with Fully Differential Inputs .
The TPC5180 is an 18-bit analog-to-digital converter (ADC).

TPC5180 Applications

* 18-bit SAR ADC without Zero Latency
* Throughput Speed: 300 KSPS
* Unipolar, Differential Analog Input
* -VREF to VREF
* External VREF
* 2.5 V to VDD
* High Linearity
* DNL: ±0.6 LSB Typical
* INL: ±2 LSB Typical
* TH

📥 Download Datasheet

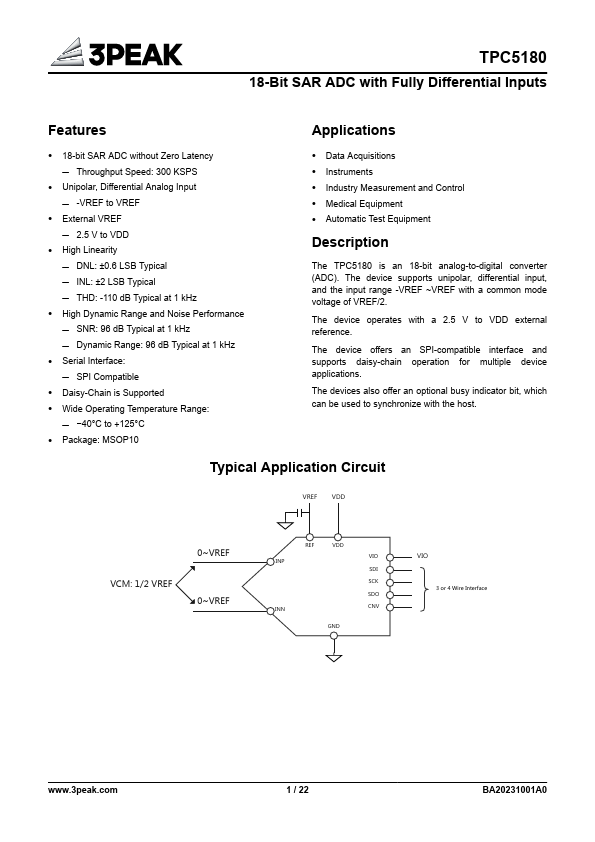

Preview of TPC5180 PDF

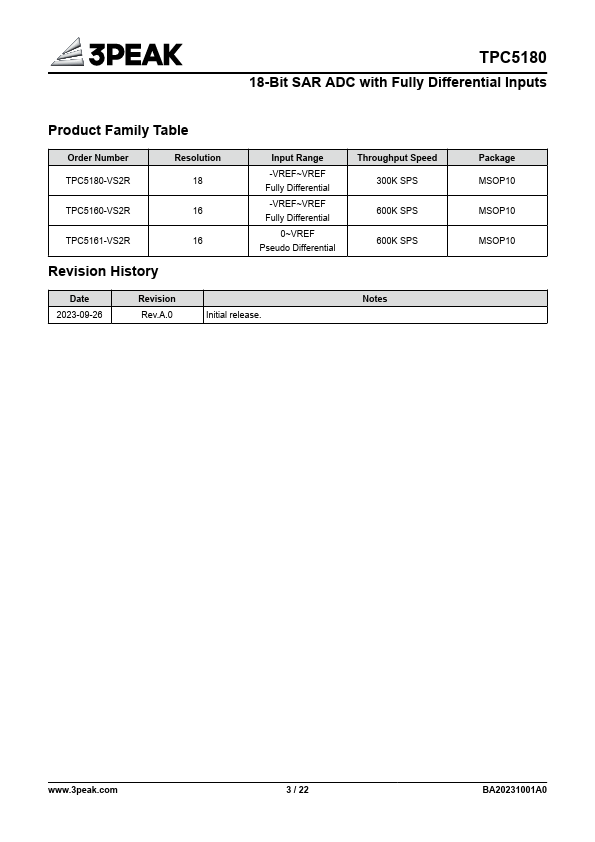

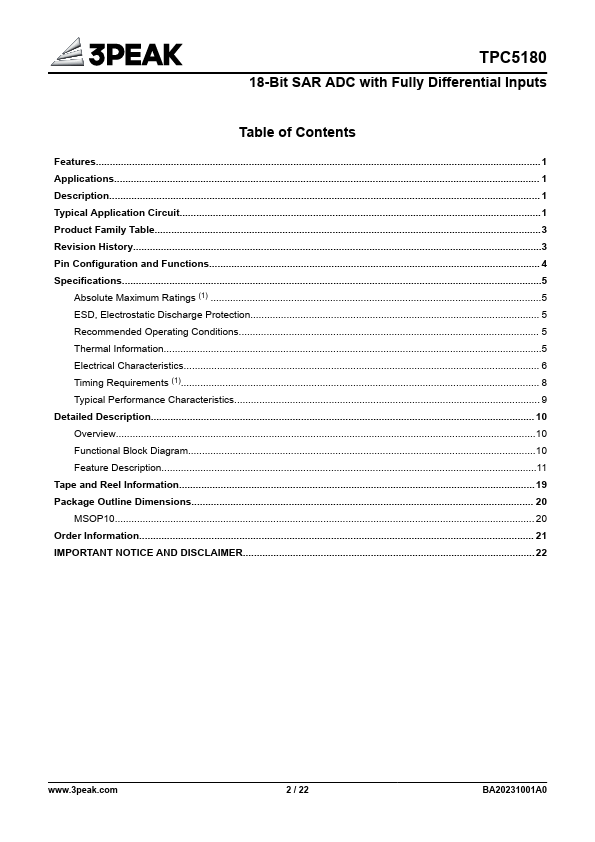

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPC5180
Manufacturer
3PEAK
File Size
8.88 MB
Datasheet
TPC5180-3PEAK.pdf
Description
18-Bit SAR ADC
