TPC112S4, TPC116S4 High Performance DACs

TPC112S4 Description

TPC116S4/TPC112S4 Quad 16-/12-Bit, Low-Power, High-Performance DACs .
The TPC116S4/TPC112S4 are pin-compatible 16bit and 12-bit digital-to-analog converters.

TPC112S4 Features

* Quad, 16-/12-Bit Pin Compatible DACs TPC116S4: 16 bits TPC112S4: 12 bits
* Low Power Consumption (800 μA typ)
* Differential Nonlinearity: ±1 LSB (max)
* Glitch Energy: 2 nV-s
* Power-on Reset to Zero
* Supply Range: 2.7 V to 5.5 V
* Buffered Rail-to-rail Output Operati

TPC112S4 Applications

* Gain and Offset Adjustment
* Process Control and Servo Loops
* Programmable Voltage and Current Sources
* Programmable Attenuators

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPC112S4, TPC116S4. Please refer to the document for exact specifications by model.

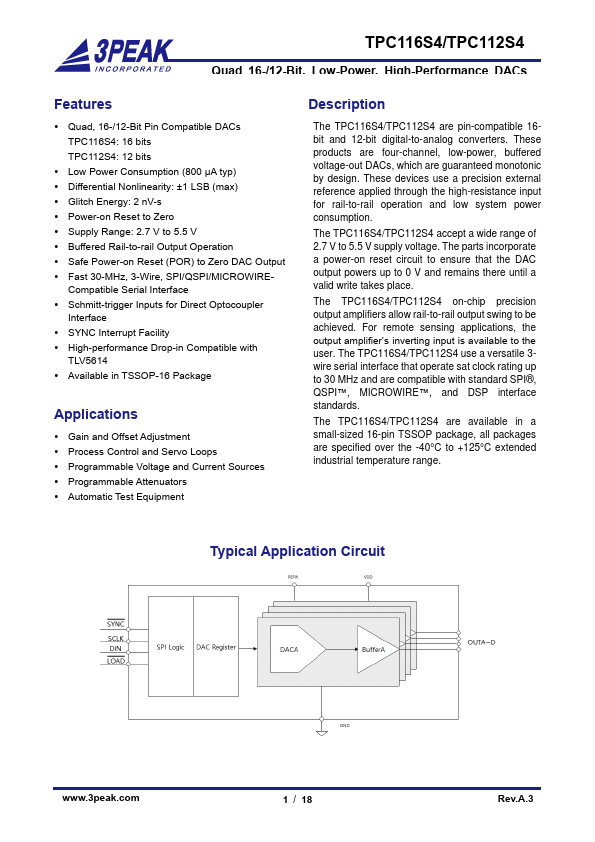

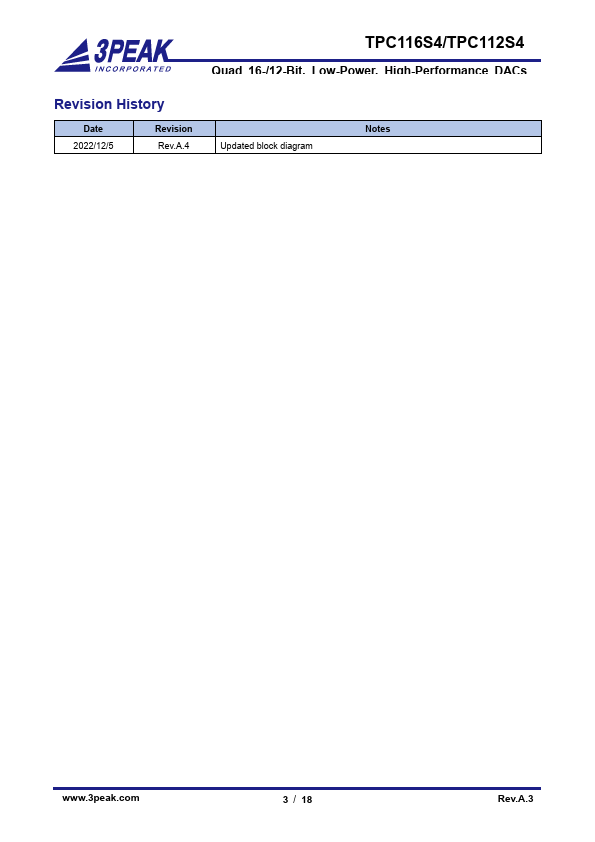

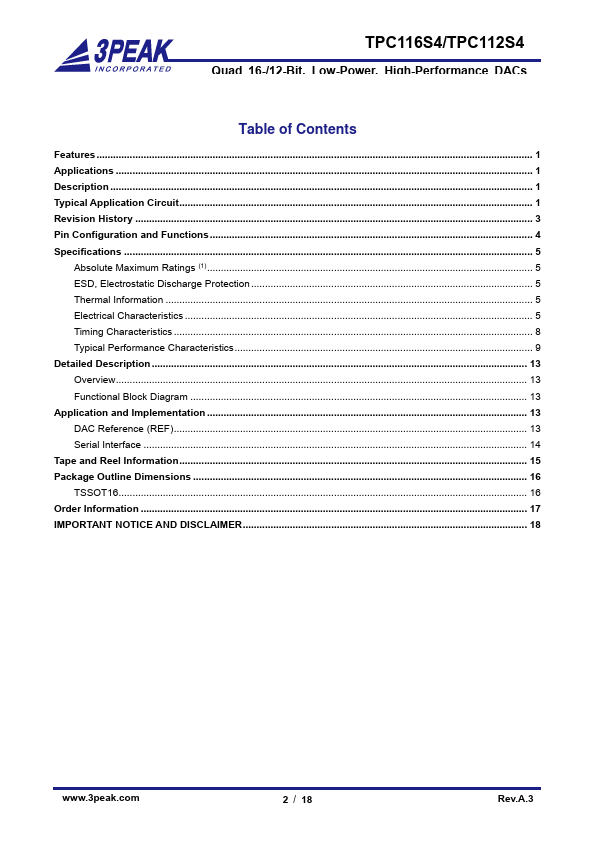

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPC112S4, TPC116S4
Manufacturer
3PEAK
File Size
827.71 KB
Datasheet
TPC116S4-3PEAK.pdf
Description
High Performance DACs
Note
This datasheet PDF includes multiple part numbers: TPC112S4, TPC116S4.
Please refer to the document for exact specifications by model.
