PMEG1030EH - MEGA Schottky barrier rectifiers

Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages.

Table 1.

Features

  • Forward current: 3 A.
  • Reverse voltage: 10 V.
  • Ultra low forward voltage.
  • Small and flat lead SMD package 1.3.

📥 Download Datasheet

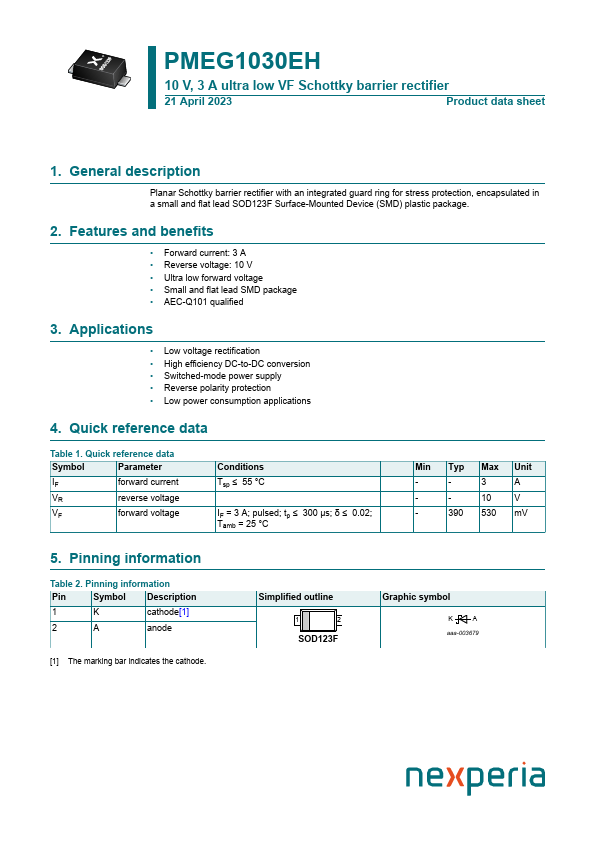

Datasheet preview – PMEG1030EH

Datasheet Details

Part number PMEG1030EH
Manufacturer nexperia
File Size 638.06 KB
Description MEGA Schottky barrier rectifiers
Datasheet download datasheet PMEG1030EH Datasheet

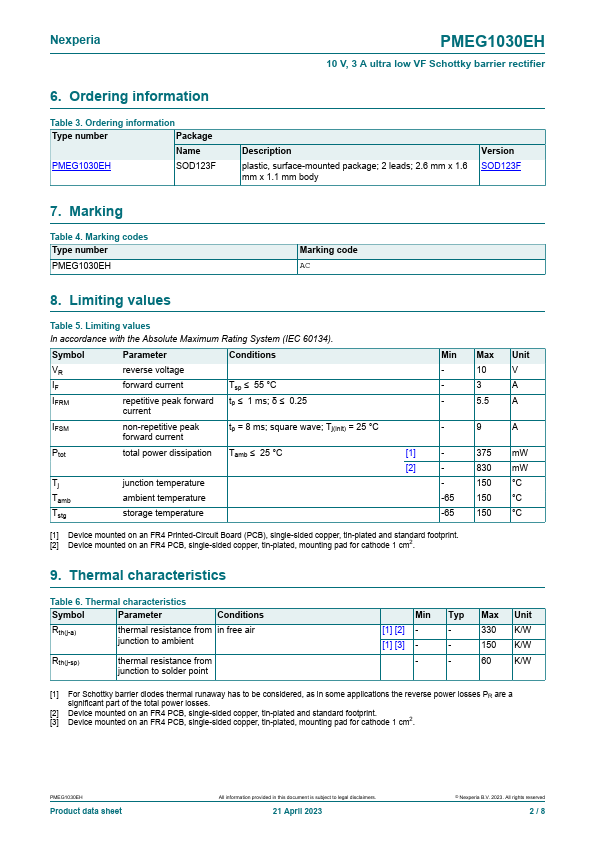

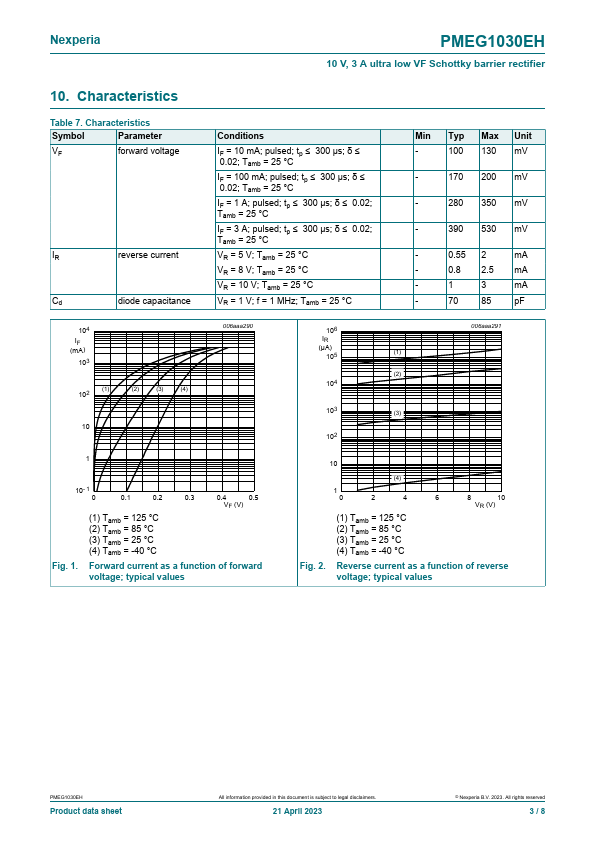

Additional preview pages of the PMEG1030EH datasheet.

📁 Similar Datasheet

  • PMEG1030EH - 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS (NXP Semiconductors)
  • PMEG1030EJ - 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS (NXP Semiconductors)
  • PMEG10010ELR - 1A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10020AELP - 2A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10020AELR - low leakage current Schottky barrier rectifier (NXP Semiconductors)
  • PMEG10020ELR - 2A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10030ELP - 3A low leakage current Schottky barrier rectifier (NXP)
  • PMEG1020EA - Ultra low VFMEGA Schottky barrier diode (NXP Semiconductors)
  • PMEG1020EH - 10V 2A ultra low VF MEGA Schottky barrier rectifiers (NXP Semiconductors)
  • PMEG1020EJ - 10V 2A ultra low VF MEGA Schottky barrier rectifiers (NXP Semiconductors)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
PMEG1030EH; PMEG1030EJ 10 V, 3 A ultra low VF MEGA Schottky barrier rectifiers Rev. 04 — 15 January 2010 Product data sheet 1. Product profile 1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages. Table 1. Product overview Type number Package Nexperia PMEG1030EH SOD123F PMEG1030EJ SOD323F JEITA SC-90 Configuration single isolated diodes single isolated diodes 1.2 Features „ Forward current: 3 A „ Reverse voltage: 10 V „ Ultra low forward voltage „ Small and flat lead SMD package 1.
