PMEG1020EA - Ultra low VFMEGA Schottky barrier diode

Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD323 (SC-76) very small SMD plastic package.

Marking code: E2.

Features

  • Forward current: 2 A.
  • Reverse voltage: 10 V.
  • Ultra low forward voltage.
  • Very small plastic SMD package.

📥 Download Datasheet

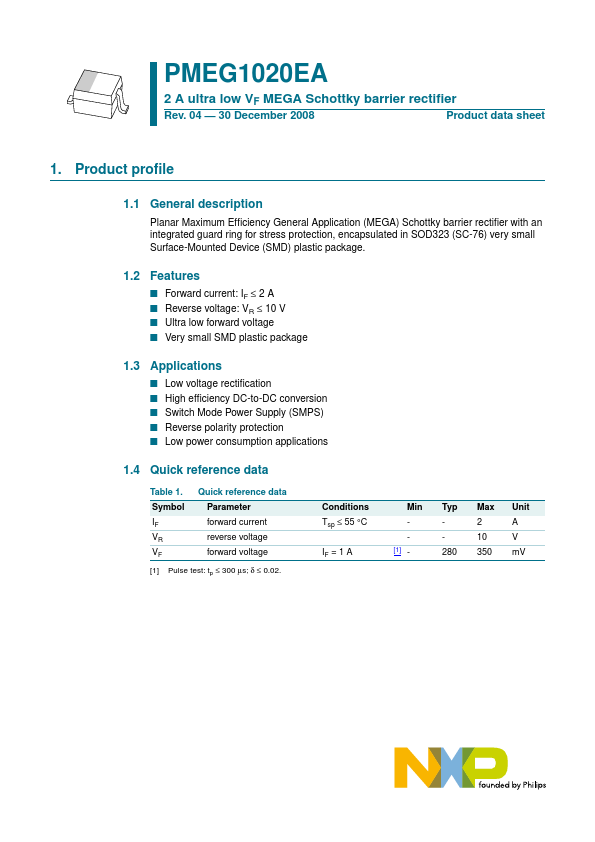

Datasheet preview – PMEG1020EA

Datasheet Details

Part number PMEG1020EA
Manufacturer NXP Semiconductors
File Size 80.31 KB
Description Ultra low VFMEGA Schottky barrier diode
Datasheet download datasheet PMEG1020EA Datasheet

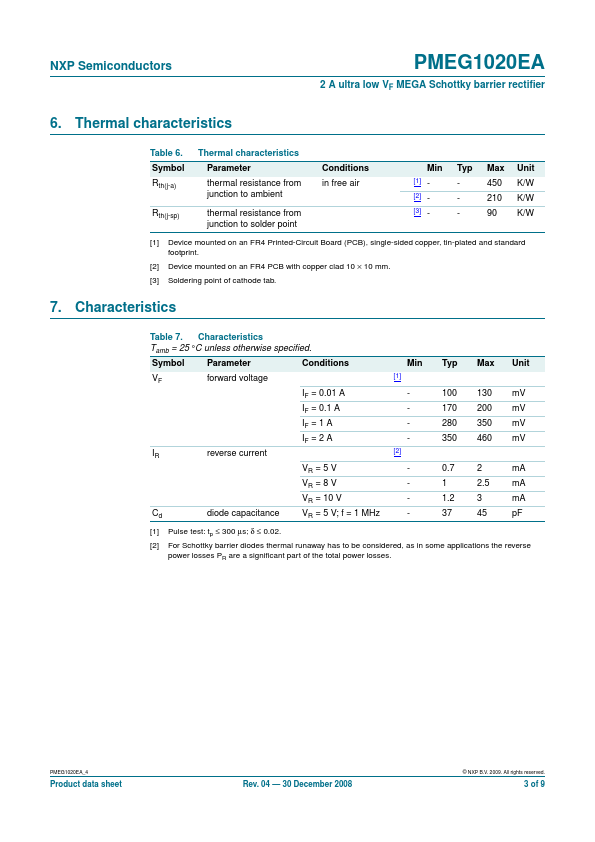

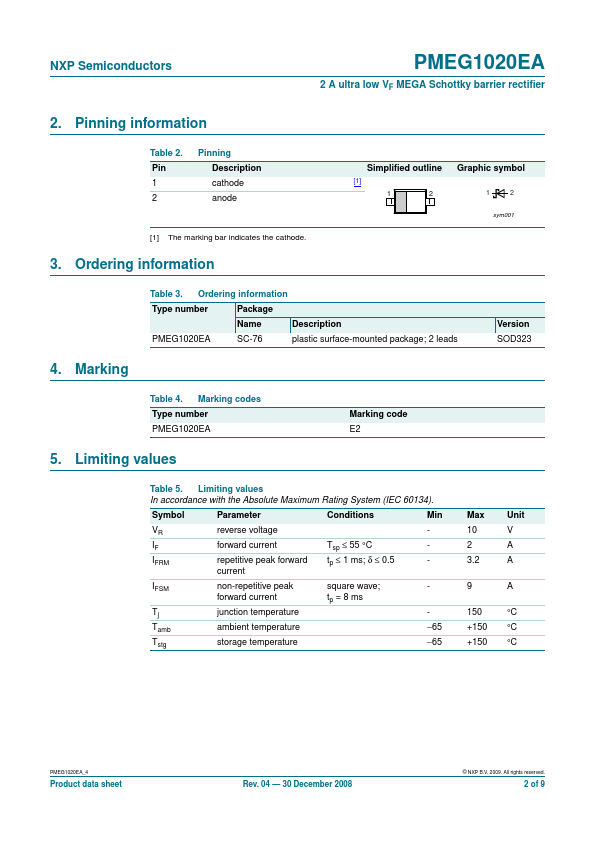

Additional preview pages of the PMEG1020EA datasheet.

📁 Similar Datasheet

  • PMEG1020EH - MEGA Schottky barrier rectifiers (nexperia)
  • PMEG1020EJ - MEGA Schottky barrier rectifiers (nexperia)
  • PMEG10010ELR - 1A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10010ELR - 1A low leakage current Schottky barrier rectifier (nexperia)
  • PMEG10020AELP - 2A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10020AELP - Schottky barrier rectifier (nexperia)
  • PMEG10020AELP-Q - 2A low leakage current Schottky barrier rectifier (nexperia)
  • PMEG10020AELR - Schottky barrier rectifier (nexperia)
  • PMEG10020ELR - 2A low leakage current Schottky barrier rectifier (NXP)
  • PMEG10020ELR - Schottky barrier rectifier (nexperia)
Other Datasheets by NXP Semiconductors
  • PMEG1020EH - 10V 2A ultra low VF MEGA Schottky barrier rectifiers
  • PMEG1020EJ - 10V 2A ultra low VF MEGA Schottky barrier rectifiers
  • PMEG1020EV - Ultra low VF MEGA Schottky barrier rectifier
  • PMEG10020AELR - low leakage current Schottky barrier rectifier
  • PMEG1030EH - 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS
  • PMEG1030EJ - 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS
  • PMEG2005AEV - (PMEGx005AEV) Very low VF MEGA Schottky barrier rectifiers
  • PMEG2005EH - 0.5 A very low VF MEGA Schottky barrier rectifiers

Full PDF Text Transcription

Click to expand full text
DISCRETE SEMICONDUCTORS www.DataSheet4U.com DATA SHEET dbook, halfpage M3D049 PMEG1020EA Ultra low VF MEGA Schottky barrier diode Preliminary specification 2003 Mar 07 Philips Semiconductors www.DataSheet4U.com Preliminary specification Ultra low VF MEGA Schottky barrier diode FEATURES • Forward current: 2 A • Reverse voltage: 10 V • Ultra low forward voltage • Very small plastic SMD package. APPLICATIONS • Low voltage rectification • High efficiency DC/DC conversion • Switch mode power supply • Inverse polarity protection • Low power consumption applications. DESCRIPTION Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD323 (SC-76) very small SMD plastic package.
