SI1903DL-T1-GE3 - 20V Dual P-Channel MOSFET

Key Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC SC-70=-6 S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View S1 G1 S2 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI1903DL Dual P-Channel 2.5-V (G-S) MOSFET Vishay Siliconix
SI1903DL Dual P-Channel MOSFET Kexin
SI1900DL Dual N-Channel MOSFET Vishay Siliconix
SI1901DL P-Channel MOSFET Vishay Siliconix
Si1902CDL Dual N-Channel MOSFET Vishay

Other Datasheets by VBsemi

Part Number Description
SI1967DH-T1-GE3 Dual P-Channel MOSFET
SI1304BDL N-Channel 20V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

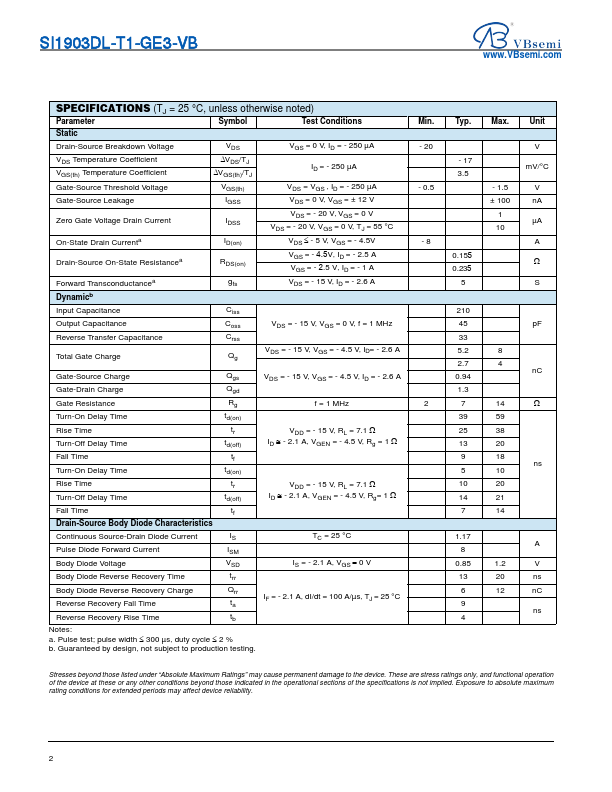

SI1903DL-T1-GE3-VB www.VBsemi.com SI1903DL-T1-GE3-VB Datasheet Dual P-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) - 20 RDS(on) () 0.155 at VGS = - 4.5V 0.235 at VGS = - 2.5 V ID (A)a - 1.8 - 1.5 Qg (Typ.) 2.
