RB705D Datasheet PDF (Schottky barrier diode)

RB705D - Schottky barrier diode

Features

1) Small surface mounting type. (SMD3) 2) Low reverse current and low forward voltage. 3) Multiple diodes with common cathode configuration. 2.8±0.2 +0.2.
0.1 0~0.1 +0.1.
0.05 +0.1.

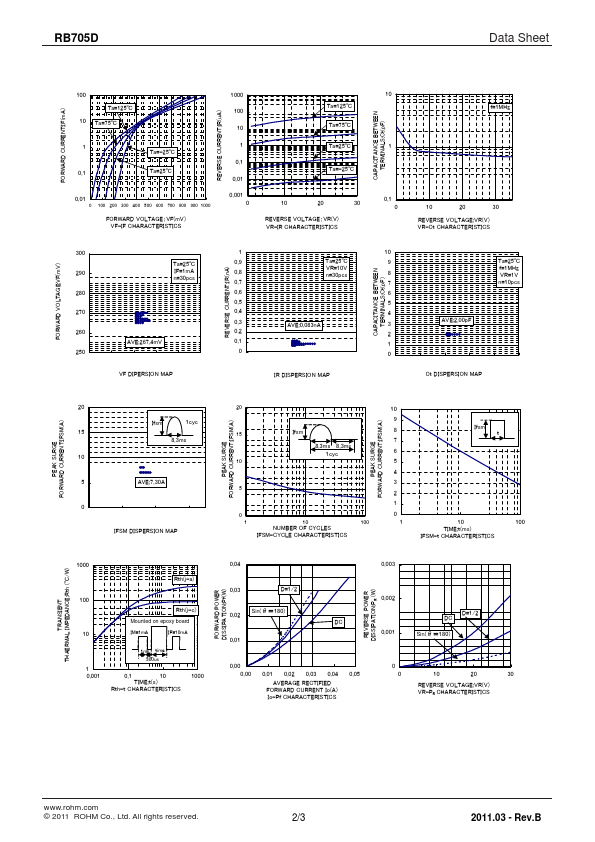

0.06 RB705D Diodes zElectrical characteristic curves (Ta = 25°C) Typ. pulse measurement Ta=125°C Ta=75°C 10m =1 25 °C.

Datasheet Details

Part number	RB705D
Manufacturer	ROHM
File Size	30.26 KB
Description	Schottky barrier diode
Datasheet	RB705D Datasheet
Additional preview pages of the RB705D datasheet.

📁 Similar Datasheet

RB706D-40 - Schottky barrier diode (Guangdong Kexin)

RB706F-40 - SILICON EPITAXIAL SCHOTTKY BARRIER DIODE (SEMTECH)

RB706F-40 - Schottky Barrier Diodes (LGE)

RB706F-40 - Schottky Barrier Diode (Taiwan Semiconductor)

RB706F-40 - Schottky barrier Diode (JCET)

RB706F-40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)

RB706F-40 - Schottky Barrier Diode (GME)

RB706F-40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (LITE-ON)

RB706F-40 - Schottky Barrier Diode (MCC)

RB706F-40G - Schottky Barrier Diode (Zowie Technology)

Full PDF Text Transcription

Click to expand full text

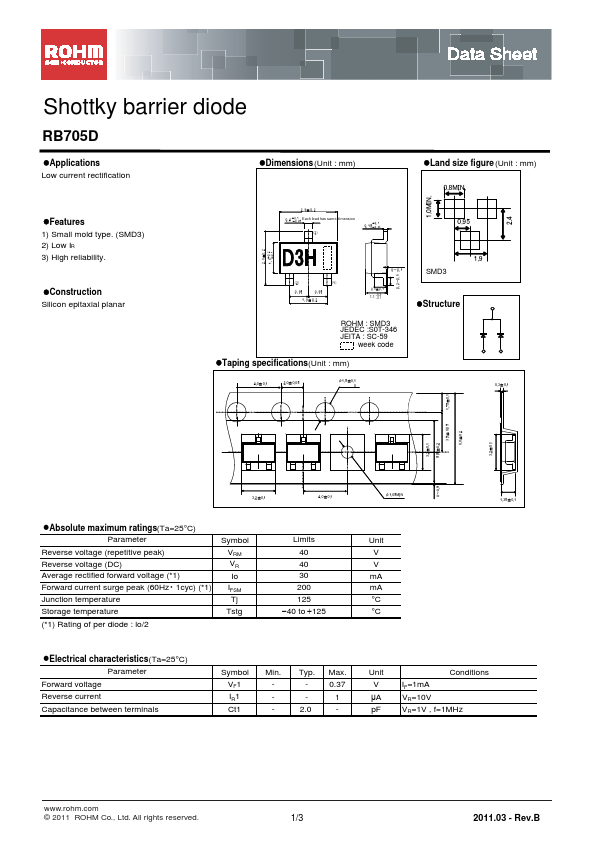

RB705D Diodes Schottky barrier diode RB705D zApplications General purpose detection High speed switching zExternal dimensions (Units : mm) 2.9±0.2 1.9±0.2 0.95 0.95 1.1 +0.2 −0.1 0.8±0.1 1.6 0.4 0.15 (All leads have the same dimensions) zConstruction Silicon epitaxial planar ROHM : SMD3 EIAJ : SC-59 JEDEC : SOT-346 zCircuit zAbsolute maximum ratings (Ta = 25°C) Parameter Peak reverse voltage DC reverse voltage Mean rectifying current Peak forward surge current∗ Junction temperature Storage temperature ∗60 Hz for 1 Symbol VRM VR IO IFSM Tj Tstg Limits 40 40 30 200 125 −40~+125 Unit V V mA mA °C °C zElectrical characteristics (Ta = 25°C) Parameter Forward voltage Reverse current Capacitance between terminals Symbol VF IR CT Min. − − − Typ. − − 2.0 Max. 0.
