RT9086 - LDO Regulator

Description

The RT9086 is a high performance positive low dropout (LDO) regulator designed for applications requiring very low dropout voltage and ultra-high Power Supply Ripple Rejection (PSRR) low noise, low quiescent current that can supply up to 250mA output current.

Features

  • a precise 2% output regulation over line, load, and temperature variations in WL-CSP-4B 0.67x0.67 (BSC) package. The output voltage is available from 1.2V to 4.5V in 25mV steps. Ordering Information RT9086 - Package Type B : SOT-23-5 QZ : ZQFN-4L 1x1 WSC : WL-CSP-4B 0.67x0.67 (BSC) Lead Plating System G : Green (Halogen Free and Pb Free) (For SOT-23-5 and ZQFN-4L 1x1 Only) Output Voltage (Refer to Output Voltage Table) Note : Richtek products are :.
  • RoHS compliant and compatible with t.

📥 Download Datasheet

Datasheet preview – RT9086

Datasheet Details

Part number RT9086
Manufacturer Richtek
File Size 1.02 MB
Description LDO Regulator
Datasheet download datasheet RT9086 Datasheet

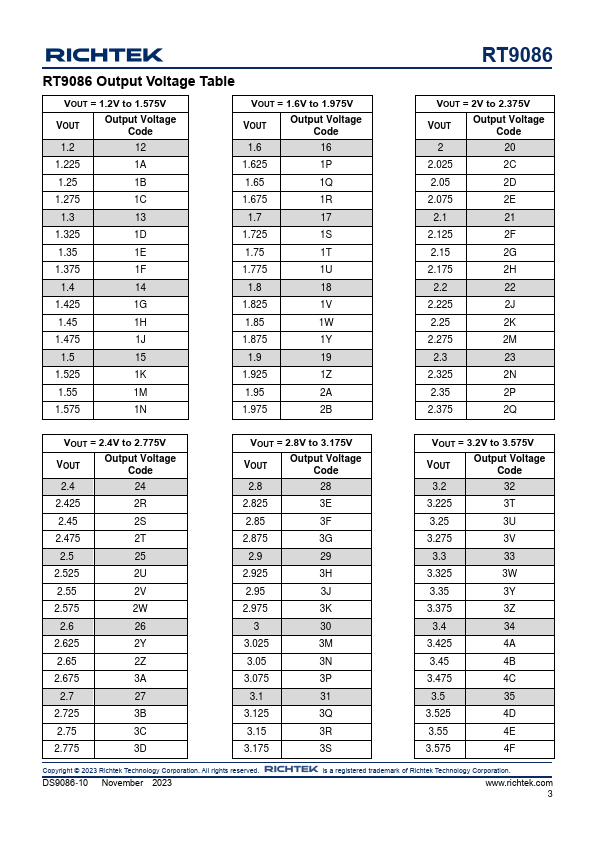

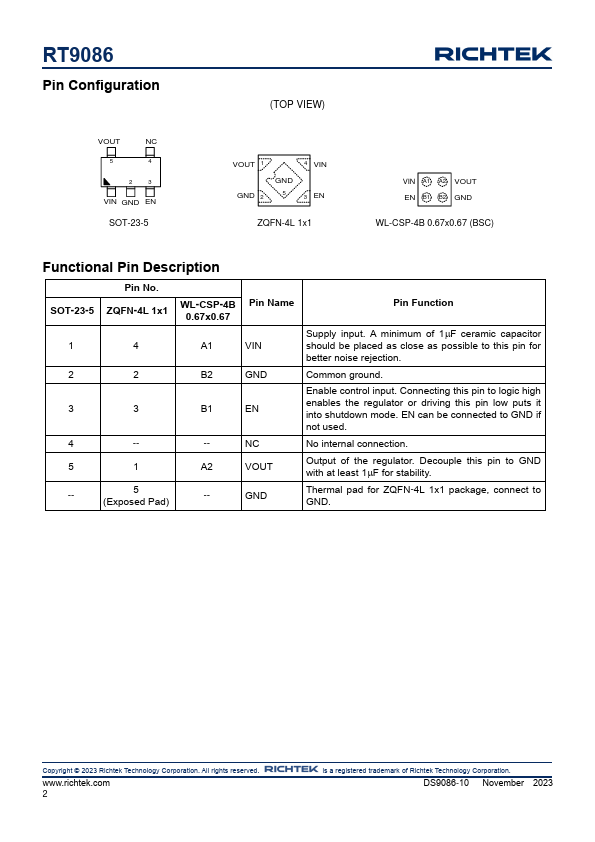

Additional preview pages of the RT9086 datasheet.

📁 Similar Datasheet

  • RT9080 - 600mA Low-Dropout Linear Regulator (Richtek Technology)
  • RT9088 - DDR Termination Regulator (Richtek Technology)
  • RT9089A - DDR Termination Regulator (Richtek Technology)
  • RT9001 - Ultra-Fast Transient Response LDO Regulator (Richtek Technology)
  • RT9002A - (RT9002x) Dual Low-Dropout Regulator (Richtek Technology)
  • RT9002B - (RT9002x) Dual Low-Dropout Regulator (Richtek Technology)
  • RT9002C - (RT9002x) Dual Low-Dropout Regulator (Richtek Technology)
  • RT9005A - (RT9005A / RT9005B) DDR VDDQ and Termination Voltage Regulator (Richtek Technology)
  • RT9005B - (RT9005A / RT9005B) DDR VDDQ and Termination Voltage Regulator (Richtek Technology)
  • RT9006A - (RT9006A / RT9006B) Dual LDO Regulator (Richtek Technology)
Other Datasheets by Richtek
  • RT9081A - Ultra Low Dropout Linear Regulator
  • RT9081D - Ultra Low Dropout Linear Regulator
  • RT9085 - Ultra Low Dropout Linear Regulator
  • RT9085A - Ultra Low Dropout Linear Regulator
  • RT9088A - DDR Termination Regulator
  • RT9009 - Ultra-Fast CMOS LDO Regulator
  • RT9013B - Low Noise Ultra-Fast Without Bypass Capacitor CMOS LDO Regulator
  • RT9018C - Ultra Low Dropout Regulator

Full PDF Text Transcription

Click to expand full text

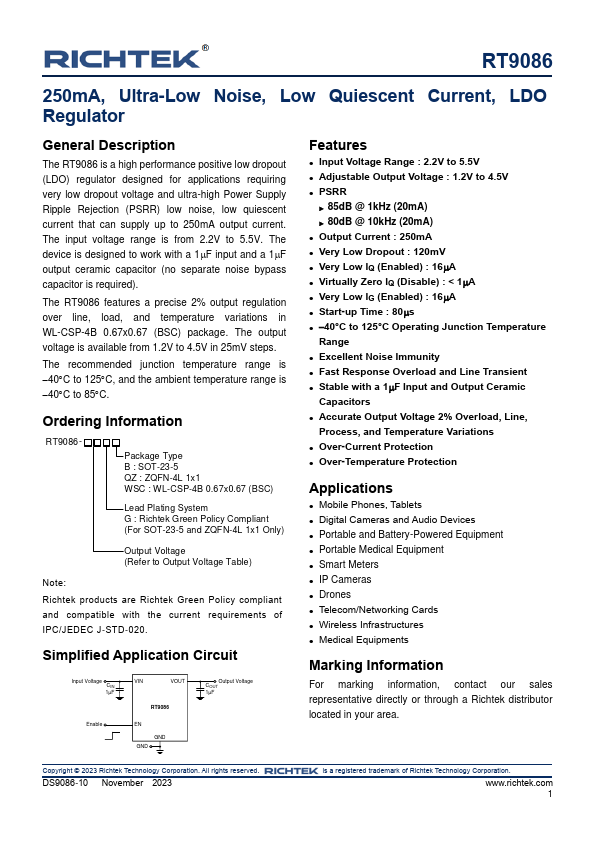

RT9086 250mA, Ultra-Low Noise, Low Quiescent Current, LDO Regulator General Description The RT9086 is a high performance positive low dropout (LDO) regulator designed for applications requiring very low dropout voltage and ultra-high Power Supply Ripple Rejection (PSRR) low noise, low quiescent current that can supply up to 250mA output current. The input voltage range is from 2.2V to 5.5V. The device is designed to work with a 1F input and a 1F output ceramic capacitor (no separate noise bypass capacitor is required). The RT9086 features a precise 2% output regulation over line, load, and temperature variations in WL-CSP-4B 0.67x0.67 (BSC) package. The output voltage is available from 1.2V to 4.5V in 25mV steps.
