RT9088 - DDR Termination Regulator

Description

The RT9088 is a sink/source tracking termination regulator.

It is specifically designed for low-cost and low-external component count systems.

The RT9088 possesses a high speed operating amplifier that provides fast load transient response and only requires a minimum 30μF ceramic output capacitor.

Features

  • required to power the DDRIII and Low Power DDRIII / DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9088 provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR.

📥 Download Datasheet

Datasheet preview – RT9088

Datasheet Details

Part number RT9088
Manufacturer Richtek Technology
File Size 228.56 KB
Description DDR Termination Regulator
Datasheet download datasheet RT9088 Datasheet
Additional preview pages of the RT9088 datasheet.

📁 Similar Datasheet

  • RT9088A - DDR Termination Regulator (Richtek)
  • RT9081A - Ultra Low Dropout Linear Regulator (Richtek)
  • RT9081D - Ultra Low Dropout Linear Regulator (Richtek)
  • RT9085 - Ultra Low Dropout Linear Regulator (Richtek)
  • RT9085A - Ultra Low Dropout Linear Regulator (Richtek)
  • RT9086 - LDO Regulator (Richtek)
  • RT9009 - Ultra-Fast CMOS LDO Regulator (Richtek)
  • RT9013B - Low Noise Ultra-Fast Without Bypass Capacitor CMOS LDO Regulator (Richtek)
  • RT9018C - Ultra Low Dropout Regulator (Richtek)
  • RT9027A - (RT9027A / RT9027B) Linear Fan Driver (Richtek)
Other Datasheets by Richtek Technology
  • RT9080 - 600mA Low-Dropout Linear Regulator
  • RT9089A - DDR Termination Regulator
  • RT9001 - Ultra-Fast Transient Response LDO Regulator
  • RT9002A - (RT9002x) Dual Low-Dropout Regulator
  • RT9002B - (RT9002x) Dual Low-Dropout Regulator
  • RT9002C - (RT9002x) Dual Low-Dropout Regulator
  • RT9005A - (RT9005A / RT9005B) DDR VDDQ and Termination Voltage Regulator
  • RT9005B - (RT9005A / RT9005B) DDR VDDQ and Termination Voltage Regulator

Full PDF Text Transcription

Click to expand full text

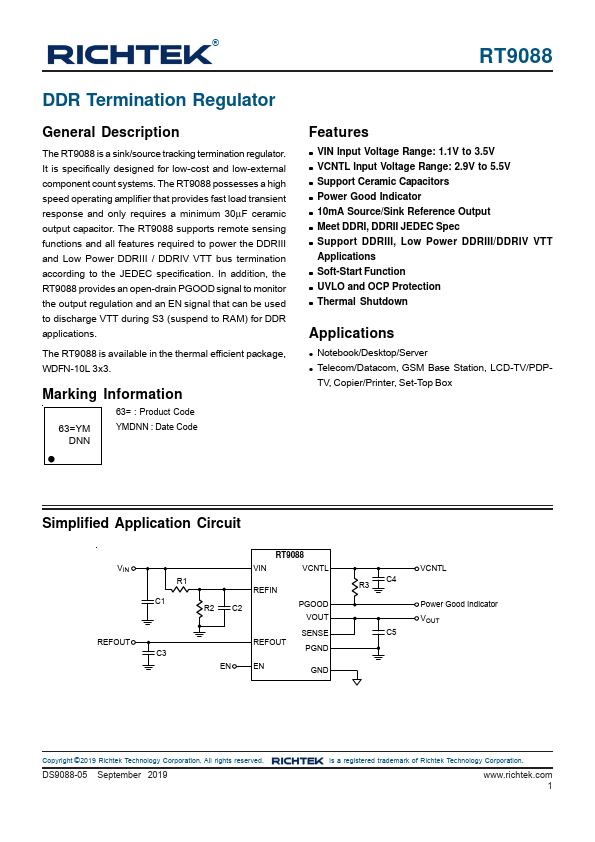

® RT9088 DDR Termination Regulator General Description The RT9088 is a sink/source tracking termination regulator. It is specifically designed for low-cost and low-external component count systems. The RT9088 possesses a high speed operating amplifier that provides fast load transient response and only requires a minimum 30μF ceramic output capacitor. The RT9088 supports remote sensing functions and all features required to power the DDRIII and Low Power DDRIII / DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9088 provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR applications. The RT9088 is available in the thermal efficient package, WDFN-10L 3x3.
