BSM080D12P2C008 - SiC Power Module

Features

  • 1) Low surge, low switching loss. 2) High-speed switching possible. 3) Reduced temperature dependence. lCircuit diagram Datasheet 1 10 9 8(N. C) 3,4 5 6 7(N. C) 2.
  • Do not connnect to NC pin. lConstruction This product is a half bridge module consisting of SiC-DMOS and SiC SBD from ROHM. lDimensions & Pin layout (Unit : mm) 10 9 8 7 6 5 4 1 3 2 (M2.6 FOR.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSM100GAL120DN2 IGBT Siemens Semiconductor Group
BSM100GB120DN2 IGBT Siemens Semiconductor Group
BSM100GB120DN2K IGBT Siemens Semiconductor Group
BSM100GB170DN2 IGBT Siemens Semiconductor Group
BSM100GB60DLC IGBT-Module eupec

Other Datasheets by ROHM

Part Number Description
BSM120C12P2C201 SiC
BSM120D12P2C005 SiC Power Module
BSM180C12P2E202 SiC
BSM180D12P2C101 SiC
BSM180D12P3C007 SiC

Full PDF Text Transcription

Click to expand full text

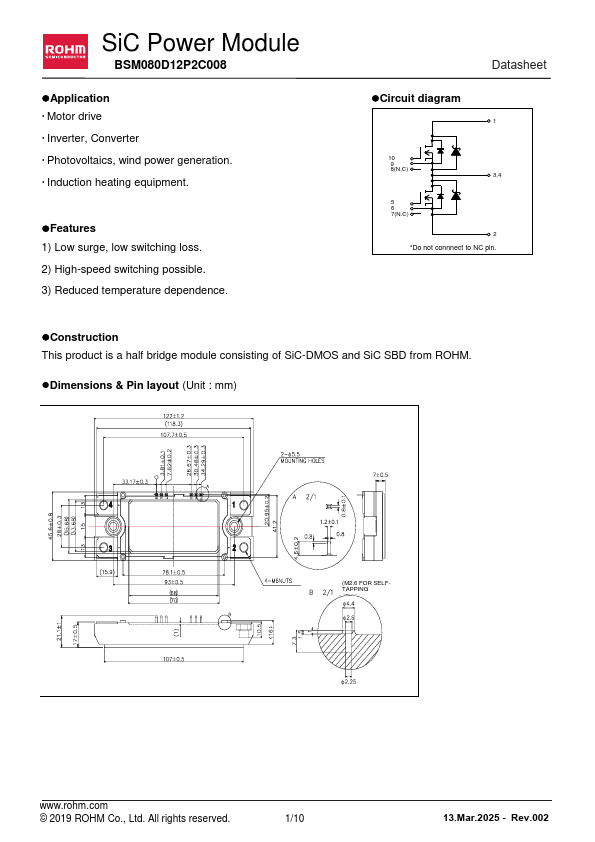

SiC Power Module BSM080D12P2C008 lApplication  Motor drive  Inverter, Converter  Photovoltaics, wind power generation.  Induction heating equipment. lFeatures 1) Low surge, low switching loss. 2) High-speed switching possible. 3) Reduced temperature dependence. lCircuit diagram Datasheet 1 10 9 8(N.C) 3,4 5 6 7(N.C) 2 *Do not connnect to NC pin. lConstruction This product is a half bridge module consisting of SiC-DMOS and SiC SBD from ROHM. lDimensions & Pin layout (Unit : mm) 10 9 8 7 6 5 4 1 3 2 (M2.6 FOR SELFTAPPING www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 1/10 13.Mar.2025 - Rev.
