SMMBT4403L - Switching Transistor

Datasheet Summary

Features

S Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	SMMBT4403L
Manufacturer	ON Semiconductor
File Size	154.42 KB
Description	Switching Transistor
Datasheet	SMMBT4403L Datasheet
Additional preview pages of the SMMBT4403L datasheet.

📁 Similar Datasheet

SMMBT3904WT1G - NPN Transistor (onsemi)
SMMBT3906WT1G - PNP Transistor (onsemi)
SMMB912D - Dual N-Channel MOSFET (Vishay)
SMMB912DK - Dual N-Channel MOSFET (Vishay)
SMMBD2837LT1G - Monolithic Dual Switching Diodes (onsemi)
SMM-102-02-F-D - SOCKET STRIP (Samtec)
SMM-102-02-F-S - SOCKET STRIP (Samtec)
SMM-102-02-F-x - SOCKET STRIP (Samtec)
SMM-1xx-02-x-x - SOCKET STRIP (Samtec)
SMM0102 - Thin Film Micro-MELF Resistors (Vishay Siliconix)

Other Datasheets by ON Semiconductor

SMMBT4401L - Switching Transistor
SMMBT2222AL - General Purpose Transistors
SMMBT2222AWT1G - General Purpose Transistor
SMMBT2907AL - PNP Silicon Transistors
SMMBT3904L - NPN Transistor
SMMBT3904LT1G - NPN Transistor
SMMBT3904LT3G - NPN Transistor
SMMBT3904TT1G - General Purpose Transistors

Full PDF Text Transcription

Click to expand full text

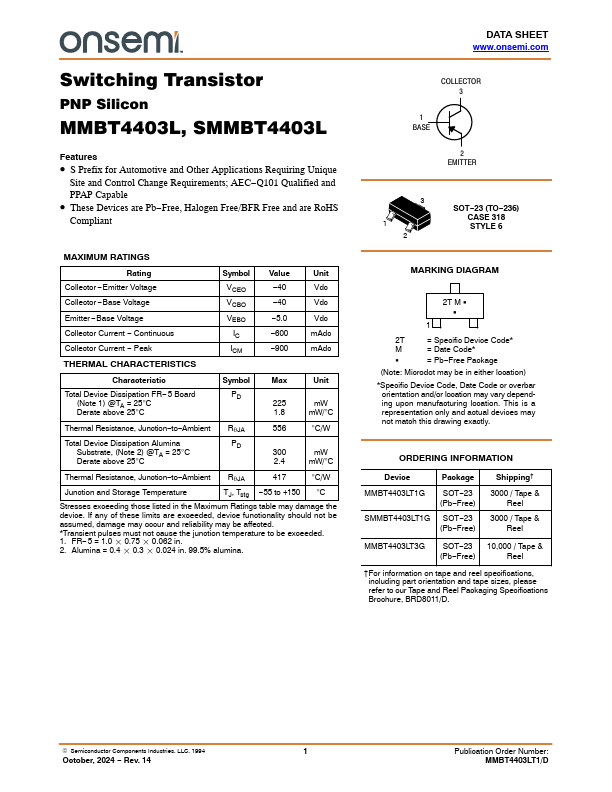

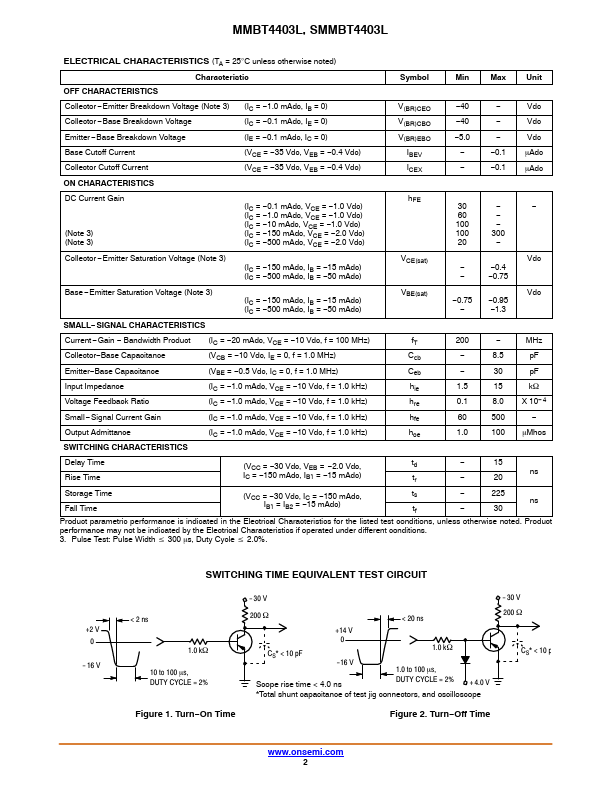

MMBT4403L, SMMBT4403L Switching Transistor PNP Silicon Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Collector Current − Peak THERMAL CHARACTERISTICS Symbol VCEO VCBO VEBO IC ICM Value −40 −40 −5.0 −600 −900 Unit Vdc Vdc Vdc mAdc mAdc Characteristic Total Device Dissipation FR− 5 Board (Note 1) @TA = 25°C Derate above 25°C Symbol Max Unit PD 225 mW 1.
