SMMBT3904L - NPN Transistor

Datasheet Summary

Features

These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.
S Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	SMMBT3904L
Manufacturer	ON Semiconductor
File Size	216.29 KB
Description	NPN Transistor
Datasheet	SMMBT3904L Datasheet

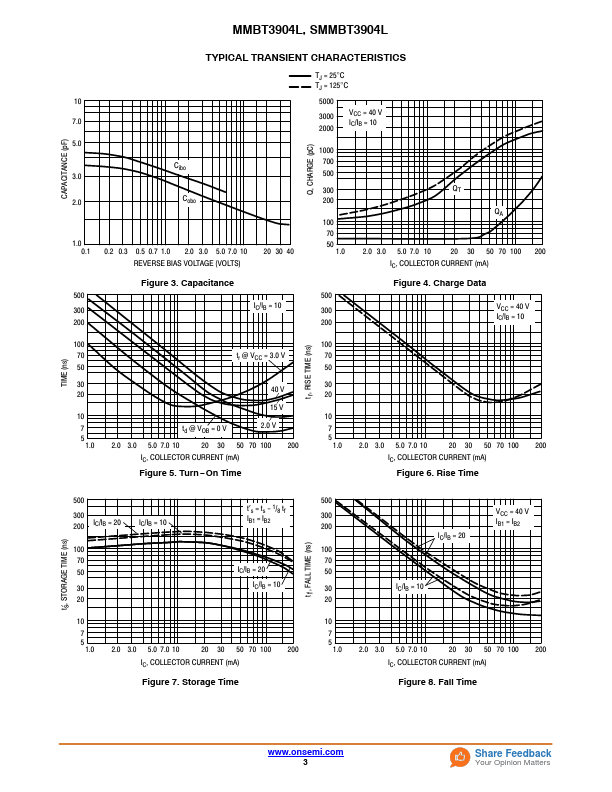

Additional preview pages of the SMMBT3904L datasheet.

📁 Similar Datasheet

SMMBT3904WT1G - NPN Transistor (onsemi)
SMMBT3906WT1G - PNP Transistor (onsemi)
SMMB912D - Dual N-Channel MOSFET (Vishay)
SMMB912DK - Dual N-Channel MOSFET (Vishay)
SMMBD2837LT1G - Monolithic Dual Switching Diodes (onsemi)
SMM-102-02-F-D - SOCKET STRIP (Samtec)
SMM-102-02-F-S - SOCKET STRIP (Samtec)
SMM-102-02-F-x - SOCKET STRIP (Samtec)
SMM-1xx-02-x-x - SOCKET STRIP (Samtec)
SMM0102 - Thin Film Micro-MELF Resistors (Vishay Siliconix)

Other Datasheets by ON Semiconductor

SMMBT3904LT1G - NPN Transistor
SMMBT3904LT3G - NPN Transistor
SMMBT3904TT1G - General Purpose Transistors
SMMBT3906L - PNP Transistor
SMMBT2222AL - General Purpose Transistors
SMMBT2222AWT1G - General Purpose Transistor
SMMBT2907AL - PNP Silicon Transistors
SMMBT4401L - Switching Transistor

Full PDF Text Transcription

Click to expand full text

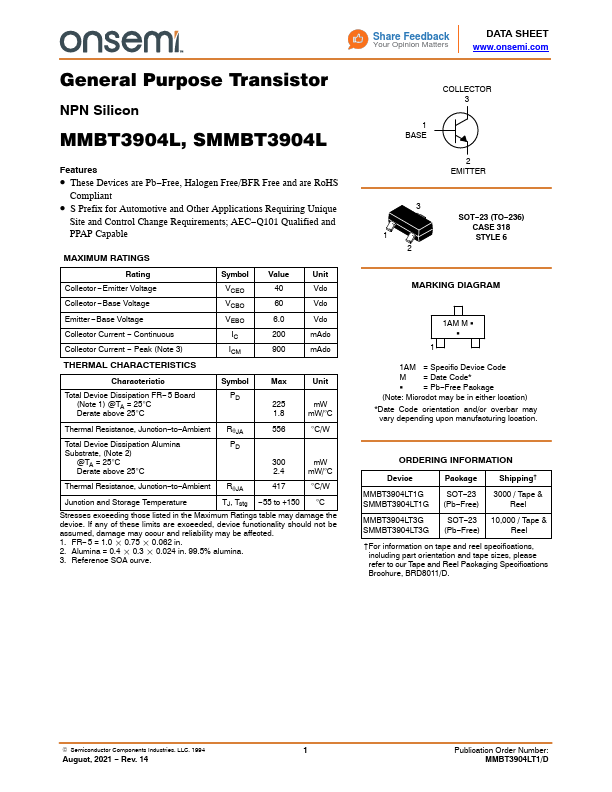

General Purpose Transistor NPN Silicon MMBT3904L, SMMBT3904L Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Collector Current − Peak (Note 3) THERMAL CHARACTERISTICS Symbol VCEO VCBO VEBO IC ICM Value 40 60 6.0 200 900 Unit Vdc Vdc Vdc mAdc mAdc Characteristic Total Device Dissipation FR− 5 Board (Note 1) @TA = 25°C Derate above 25°C Symbol PD Max 225 1.
