SMMBT2222AWT1G - General Purpose Transistor

Datasheet Summary

Features

AEC.
Q101 Qualified and PPAP Capable.
S Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	SMMBT2222AWT1G
Manufacturer	ON Semiconductor
File Size	124.34 KB
Description	General Purpose Transistor
Datasheet	SMMBT2222AWT1G Datasheet
Additional preview pages of the SMMBT2222AWT1G datasheet.

📁 Similar Datasheet

SMMBT3904WT1G - NPN Transistor (onsemi)
SMMBT3906WT1G - PNP Transistor (onsemi)
SMMB912D - Dual N-Channel MOSFET (Vishay)
SMMB912DK - Dual N-Channel MOSFET (Vishay)
SMMBD2837LT1G - Monolithic Dual Switching Diodes (onsemi)
SMM-102-02-F-D - SOCKET STRIP (Samtec)
SMM-102-02-F-S - SOCKET STRIP (Samtec)
SMM-102-02-F-x - SOCKET STRIP (Samtec)
SMM-1xx-02-x-x - SOCKET STRIP (Samtec)
SMM0102 - Thin Film Micro-MELF Resistors (Vishay Siliconix)

Other Datasheets by ON Semiconductor

SMMBT2222AL - General Purpose Transistors
SMMBT2907AL - PNP Silicon Transistors
SMMBT3904L - NPN Transistor
SMMBT3904LT1G - NPN Transistor
SMMBT3904LT3G - NPN Transistor
SMMBT3904TT1G - General Purpose Transistors
SMMBT3906L - PNP Transistor
SMMBT4401L - Switching Transistor

Full PDF Text Transcription

Click to expand full text

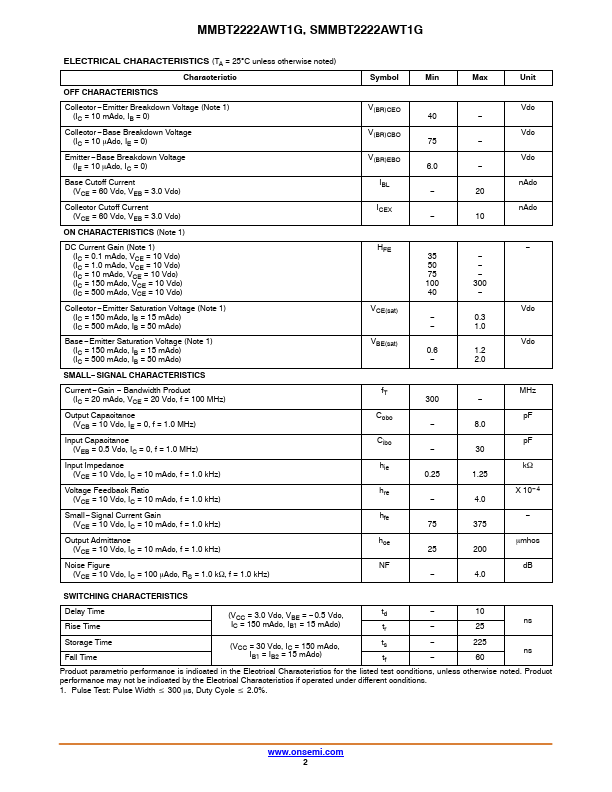

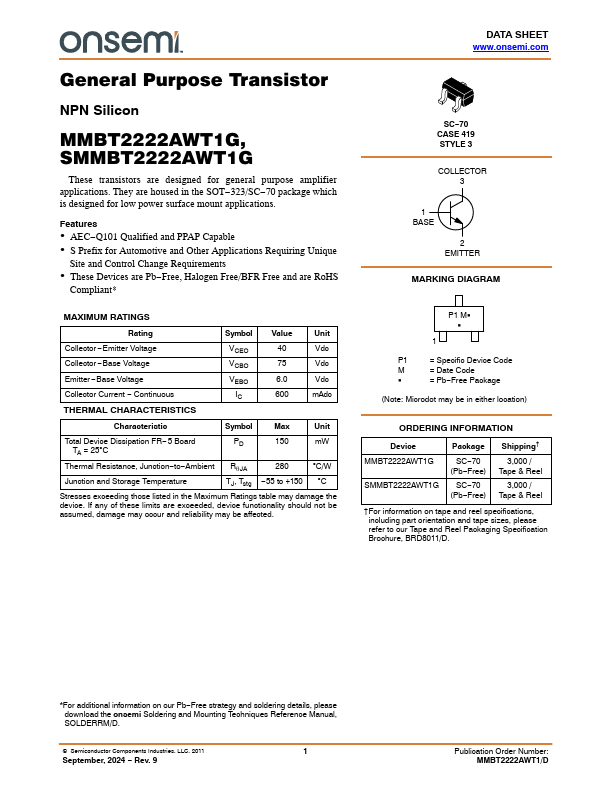

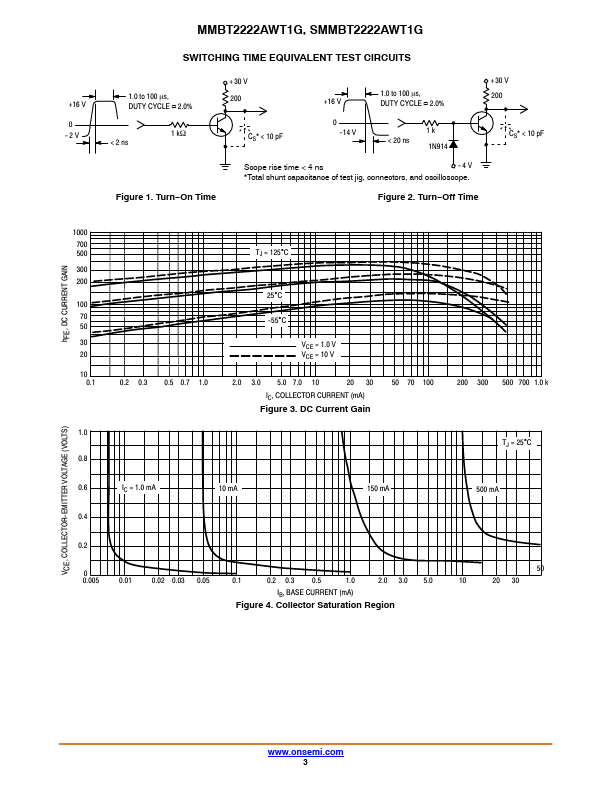

MMBT2222AWT1G, SMMBT2222AWT1G General Purpose Transistor NPN Silicon These transistors are designed for general purpose amplifier applications. They are housed in the SOT−323/SC−70 package which is designed for low power surface mount applications. Features  AEC−Q101 Qualified and PPAP Capable  S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements  These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS Symbol VCEO VCBO VEBO IC Value 40 75 6.
