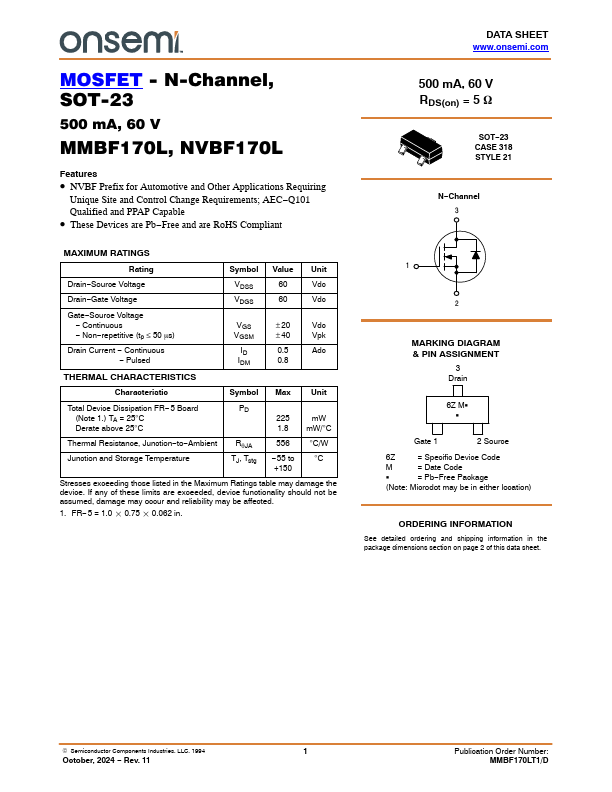

MMBF170L, NVBF170L
MOSFET – N-Channel, SOT-23
500 mA, 60 V
Features
• NVBF Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS
Rating
Symbol Value Unit
Drain−Source Voltage
Drain−Gate Voltage
Gate−Source Voltage − Continuous − Non−repetitive (tp ≤ 50 ms)
Drain Current − Continuous − Pulsed
THERMAL CHARACTERISTICS
VDSS
60
Vdc
VDGS
60
Vdc
VGS
± 20
Vdc
VGSM
± 40
Vpk
ID
0.5
Adc
IDM
0.8
Characteristic
Symbol Max Unit
Total Device Dissipation FR− 5 Board
(Note 1.) TA = 25°C Derate above 25°C
PD
225
mW
1.
