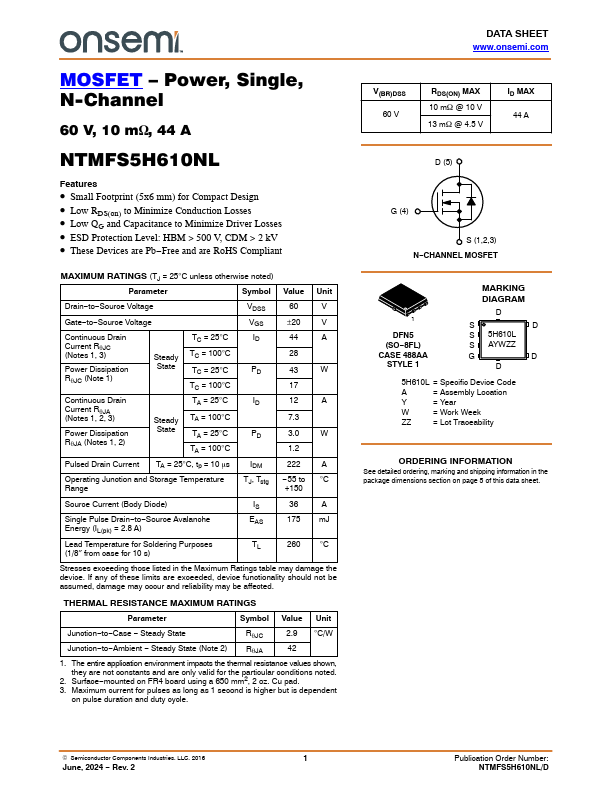

NTMFS5H610NL
MOSFET – Power, Single, N-Channel
60 V, 10 mW, 44 A
Features
• Small Footprint (5x6 mm) for Compact Design • Low RDS(on) to Minimize Conduction Losses • Low QG and Capacitance to Minimize Driver Losses • These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain−to−Source Voltage
VDSS
60
V
Gate−to−Source Voltage
VGS
±20
V
Continuous Drain Current RqJC (Notes 1, 3)
Power Dissipation RqJC (Note 1)
TC = 25°C
ID
Steady TC = 100°C
State TC = 25°C
PD
TC = 100°C
44
A
28
43
W
17
Continuous Drain Current RqJA (Notes 1, 2, 3)
Power Dissipation RqJA (Notes 1, 2)
TA = 25°C
ID
Steady TA = 100°C
State TA = 25°C
PD
TA = 100°C
12
A
7.3
3.0
W
1.
