NTMFS4H013NF - Power MOSFET

Features

  • Integrated Schottky Diode.
  • Optimized Design to Minimize Conduction and Switching Losses.
  • Optimized Package to Minimize Parasitic Inductances.
  • Optimized material for improved thermal performance.
  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are RoHS Compliant.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTMFS010N10G N-Channel Power MOSFET onsemi
NTMFS2D1N08X N-Channel Power MOSFET onsemi
NTMFS6H800NL N-Channel Power MOSFET onsemi
NTMFSC1D9N08X 80V 201A N-Channel Power MOSFET onsemi
NTMFSC2D6N08X 80V 154A N-Channel Power MOSFET onsemi

Other Datasheets by onsemi

Part Number Description
NTMFS4H01N Single N-Channel Power MOSFET
NTMFS4H01NF Power MOSFET
NTMFS4H02N Power MOSFET
NTMFS4H02NF Power MOSFET
NTMFS4H11NF Power MOSFET

Full PDF Text Transcription

Click to expand full text

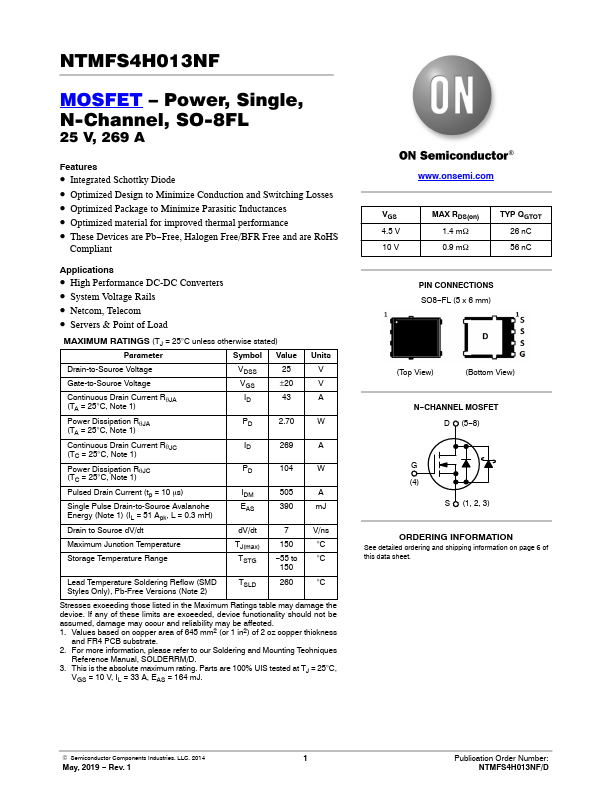

NTMFS4H013NF Power MOSFET 25 V, 269 A, Single N−Channel, SO−8FL Features • Integrated Schottky Diode • Optimized Design to Minimize Conduction and Switching Losses • Optimized Package to Minimize Parasitic Inductances • Optimized material for improved thermal performance • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Applications • High Performance DC-DC Converters • System Voltage Rails • Netcom, Telecom • Servers & Point of Load MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Units Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current RqJA (TA = 25°C, Note 1) Power Dissipation RqJA (TA = 25°C, Note 1) Continuous Drain Current RqJC (TC = 25°C, Note 1) Power Dissipation RqJC (TC = 25°C, Note 1) Pulsed Drain Curre
