NTLJS2103P - P-Channel Power MOSFET

Features

  • Recommended Replacement Device.
  • NTLUS3A40P.
  • WDFN Package Provides Exposed Drain Pad for Excellent Thermal Conduction.
  • 2x2 mm Footprint Same as SC.
  • 88 Package.
  • Lowest RDS(on) Solution in 2x2 mm Package.
  • 1.2 V RDS(on) Rating for Operation at Low Voltage Logic Level Gate Drive.
  • Low Profile (< 0.8 mm) for Easy Fit in Thin Environments.
  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are RoHS Compliant Appli.

📥 Download Datasheet

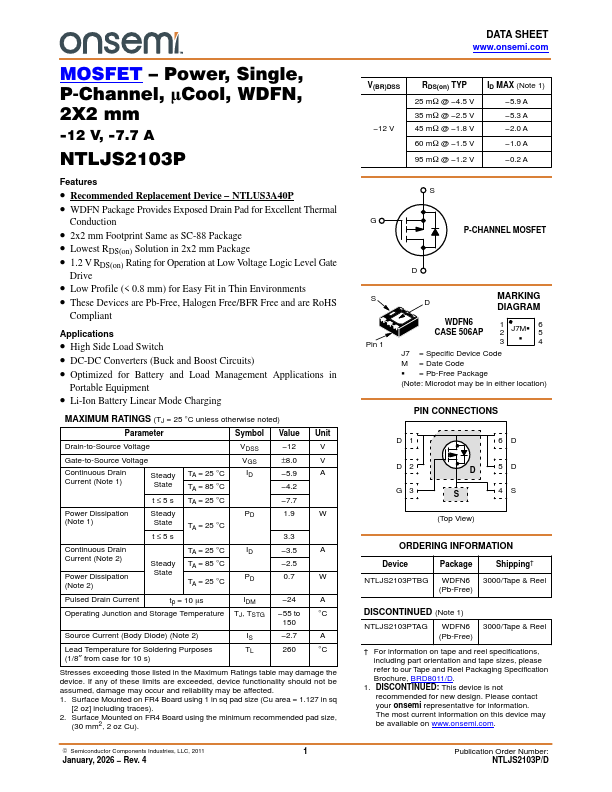

Datasheet preview – NTLJS2103P

Datasheet Details

Part number NTLJS2103P
Manufacturer onsemi
File Size 217.05 KB
Description P-Channel Power MOSFET
Datasheet download datasheet NTLJS2103P Datasheet

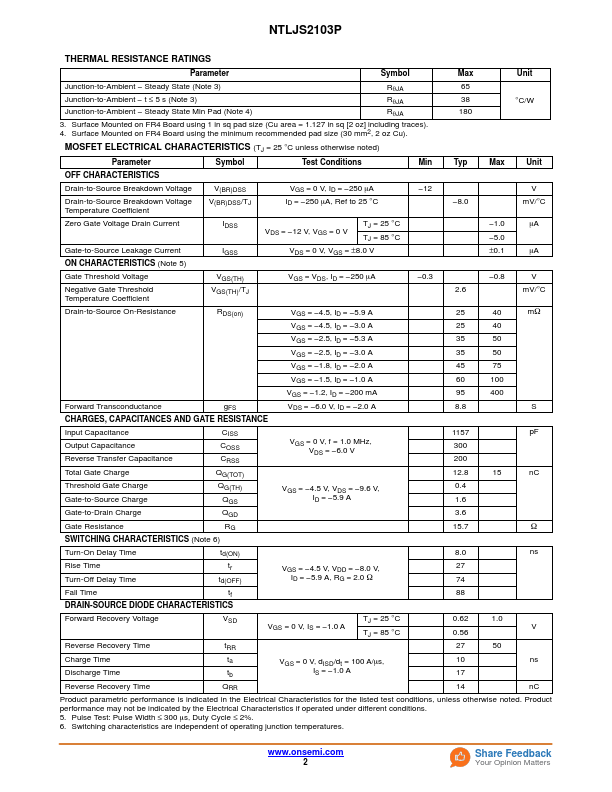

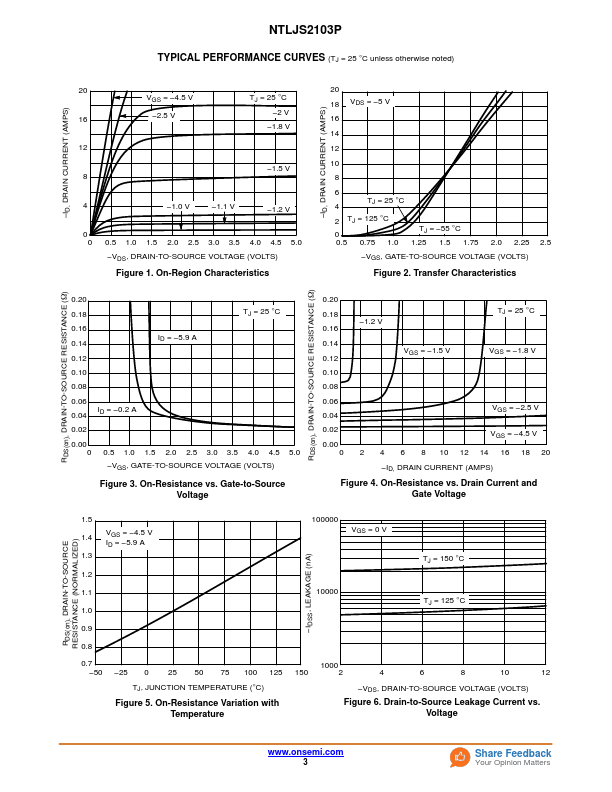

Additional preview pages of the NTLJS2103P datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
NTLJS2103P MOSFET – Power, Single, P-Channel, mCool, WDFN, 2X2 mm -12 V, -7.7 A Features • Recommended Replacement Device − NTLUS3A40P • WDFN Package Provides Exposed Drain Pad for Excellent Thermal Conduction • 2x2 mm Footprint Same as SC−88 Package • Lowest RDS(on) Solution in 2x2 mm Package • 1.2 V RDS(on) Rating for Operation at Low Voltage Logic Level Gate Drive • Low Profile (< 0.
