NSVBCP69T1G - PNP Transistor

Features

  • High Current: IC =.
  • 1.0 A.
  • The SOT.
  • 223 Package Can Be Soldered Using Wave or Reflow.
  • SOT.
  • 223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
  • NPN Complement is BCP68.
  • AEC.
  • Q101 Qualified and PPAP Capable.
  • NSV Prefix for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSVA253 SAW FILTER New Japan Radio
NSVA254 SAW FILTER New Japan Radio
NSVA276 SAW FILTER New Japan Radio
NSVA277 SAW FILTER New Japan Radio
NSVA279 SAW FILTER New Japan Radio

Other Datasheets by onsemi

Part Number Description
NSVBC114EPDXV6T1G Dual Bias Resistor Transistors
NSVBC818-40L General Purpose Transistors
NSVBC847BDW1T2G Dual General Purpose Transistors
NSVBC856BM3 General Purpose Transistor
NSVBC856BM3T5G General Purpose Transistor

Full PDF Text Transcription

Click to expand full text

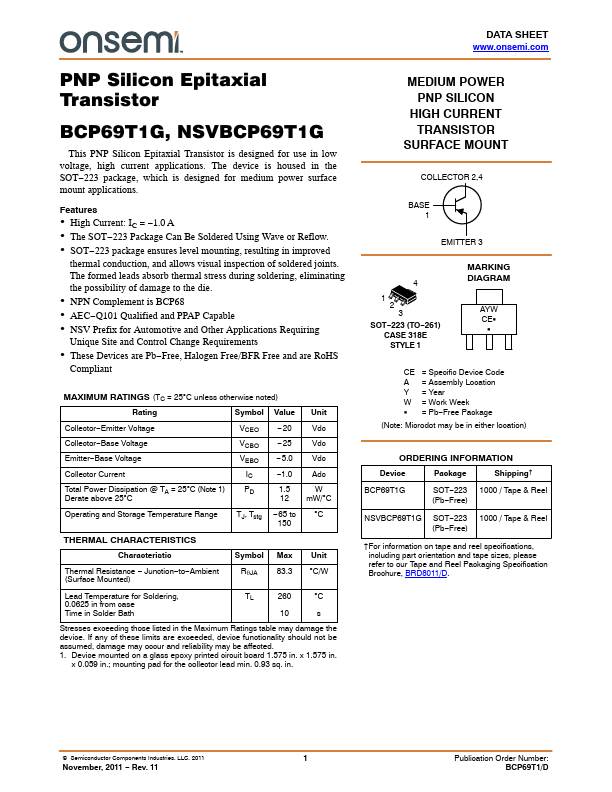

BCP69T1G, NSVBCP69T1G PNP Silicon Epitaxial Transistor This PNP Silicon Epitaxial Transistor is designed for use in low voltage, high current applications. The device is housed in the SOT−223 package, which is designed for medium power surface mount applications. Features • High Current: IC = −1.0 A • The SOT−223 Package Can Be Soldered Using Wave or Reflow. • SOT−223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
