2SD999 Datasheet NPN Transistor

Manufacturer: MLSM

📥 Download Datasheet

Datasheet Details

Part number 2SD999
Manufacturer MLSM
File Size 580.59 KB
Description NPN Transistor
Download 2SD999 Download (PDF)

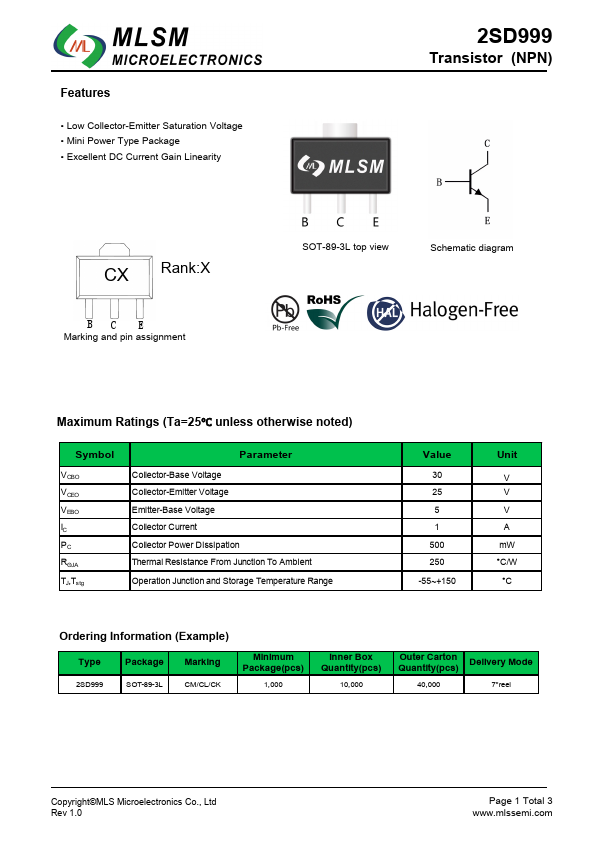

Key Features

  • Low Collector-Emitter Saturation Voltage.
  • Mini Power Type Package.
  • Excellent DC Current Gain Linearity 2SD999 Transistor (NPN) X:Rank CX Rank:X BC E Marking and pin assignment SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To A.
