MCAC6D9N06LQ - N-CHANNEL MOSFET

Features

  • Fully Automotive Qualified to AEC-Q101.
  • Trench LV MOSFET Technology.
  • High Density Cell Design For Ultra Low RDS(on).
  • Moisture Sensitivity Level 1.
  • Halogen Free. "Green"Device(Note1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range : -55°C to +175°C.
  • Storage Temperature R.

📥 Download Datasheet

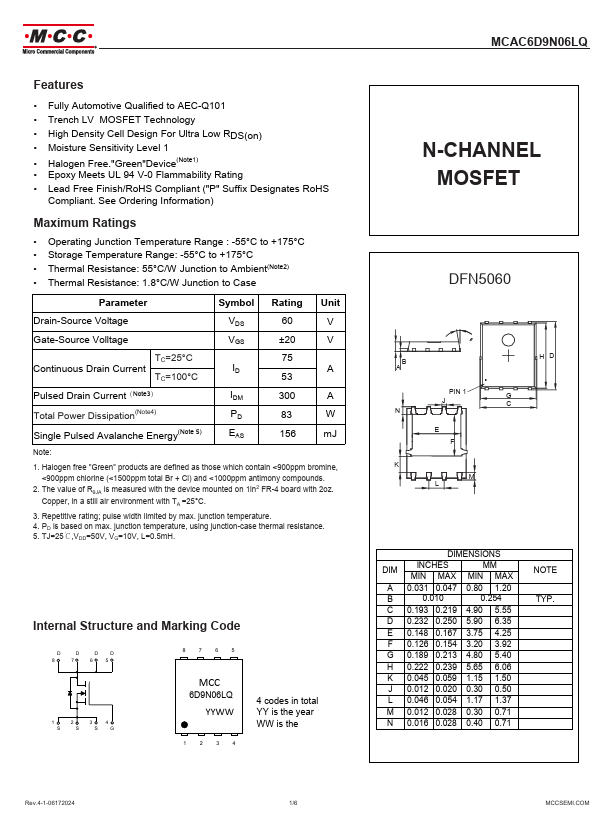

Datasheet preview – MCAC6D9N06LQ

📁 Similar Datasheet

  • MCA-352 - Frequency Mixer (Mini-Circuits)
  • MCA-35H - Frequency Mixer (Mini-Circuits)
  • MCA002 - MULTI CHIP ARRAY MOSFET (TT)
  • MCA002 - N-CHANNEL MOSFETS (Seme LAB)
  • MCA0401 - MULTI-CHIP ARRAY (Seme LAB)
  • MCA1-60 - Ceramic Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-60LH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-60MH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-80MH - Frequency Mixer WIDE BAND (Mini-Circuits)
  • MCA1-80MH - Frequency Mixer WIDE BAND (Mini-Circuits)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • Fully Automotive Qualified to AEC-Q101 • Trench LV MOSFET Technology • High Density Cell Design For Ultra Low RDS(on) • Moisture Sensitivity Level 1 • Halogen Free."Green"Device(Note1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range : -55°C to +175°C • Storage Temperature Range: -55°C to +175°C • Thermal Resistance: 55°C/W Junction to Ambient(Note2) • Thermal Resistance: 1.
