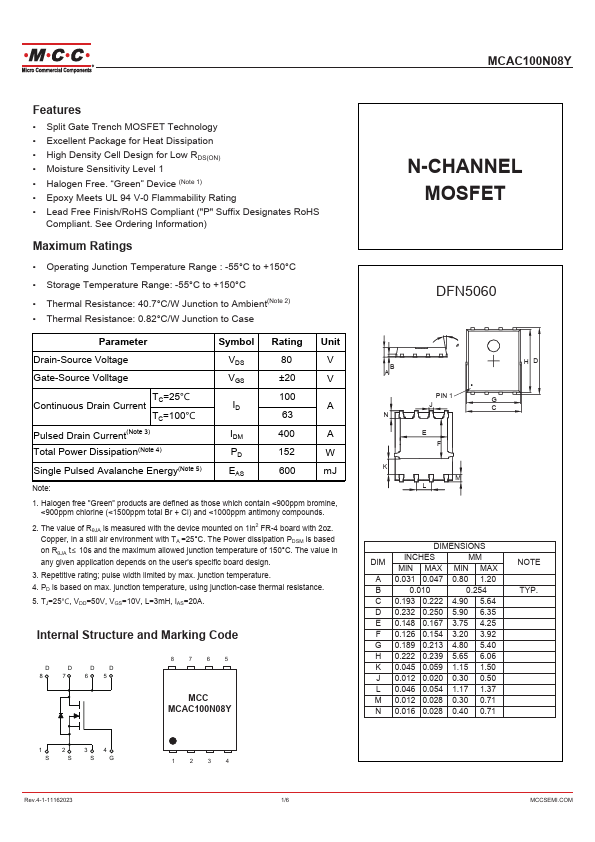

MCAC100N08Y
Features
- Split Gate Trench MOSFET Technology
- Excellent Package for Heat Dissipation
- High Density Cell Design for Low RDS(ON)
- Moisture Sensitivity Level 1
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range : -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 40.7°C/W Junction to Ambient(Note 2)
- Thermal Resistance: 0.82°C/W Junction to Case
Parameter
Symbol Rating Unit
Drain-Source Voltage
Gate-Source Volltage
±20
Continuous Drain Current TC=25℃
TC=100℃
Pulsed Drain Current(Note 3)
Total Power Dissipation(Note 4)
Single Pulsed Avalanche Energy(Note 5)
600 m J
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)...
