ZXTP2013Z - PNP Transistor

Key Features

  • s.
  • 3.5 amps continuous current.
  • Up to 10 amps peak current.
  • Very low saturation voltages PNP Transistor ZXTP2013Z Transistors 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings TA = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -140 Collector - Emitter Voltage VCEO -100 V Emitter - Base Voltage VEBO -7 Continuous Collector Current Peak Pulse Current IC -3.5 A ICM -10 Power Dissipation at TA = 25℃ (a).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXTP2013Z PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2013Z 100V PNP LOW SATURATION MEDIUM POWER TRANSISTOR DIODES
ZXTP2013G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors
ZXTP2013G 100V PNP MEDIUM POWER LOW SATURATION TRANSISTOR Diodes
ZXTP2012A PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
ZXTP2014Z PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

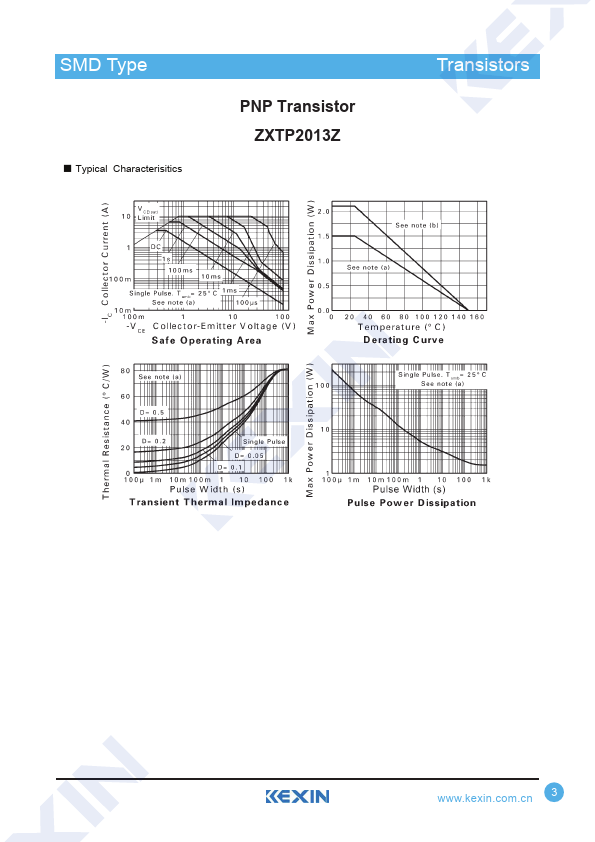

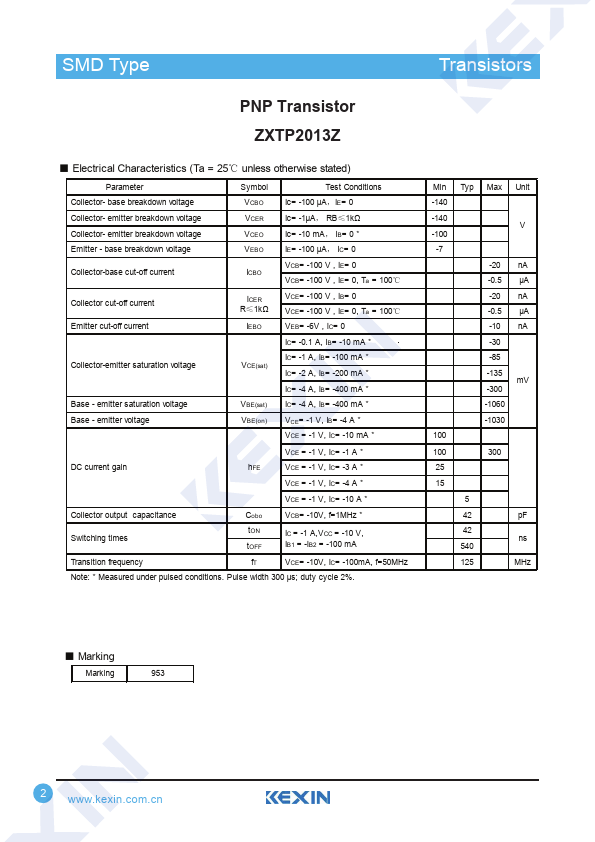

SMD Type ■ Features ● 3.5 amps continuous current ● Up to 10 amps peak current ● Very low saturation voltages PNP Transistor ZXTP2013Z Transistors 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings TA = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -140 Collector - Emitter Voltage VCEO -100 V Emitter - Base Voltage VEBO -7 Continuous Collector Current Peak Pulse Current IC -3.5 A ICM -10 Power Dissipation at TA = 25℃ (a) Power Dissipation at TA = 25℃ (b) 1.5 Pd W 2.1 Thermal Resistance Junction to Ambient (a) Thermal Resistance Junction to Ambient (b) 83 RθJA ℃/W 60 Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Notes: (a) For a device surface mounted on 25mm x 25mm x 1.
