ZXTP2013Z - 100V PNP LOW SATURATION MEDIUM POWER TRANSISTOR

Key Features

  • BVCEO > -100V.
  • IC = -3.5A High Continuous Current.
  • RSAT = 57mΩ for a Low Equivalent On-Resistance.
  • Low Saturation Voltage VCE(SAT) < -85mV @ IC = -1A.
  • hFE Specified Up to -10A for High Current Gain Hold Up.
  • Complementary NPN Type: ZXTN2011Z.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXTP2013Z PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2013Z PNP Transistor Kexin
ZXTP2013G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors
ZXTP2012A PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2012G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
ZXTP2013G 100V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2012G 60V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2012Z 60V PNP LOW SATURATION MEDIUM POWER TRANSISTOR
ZXTP2014G 140V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2014Z 140V PNP HIGH-VOLTAGE TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

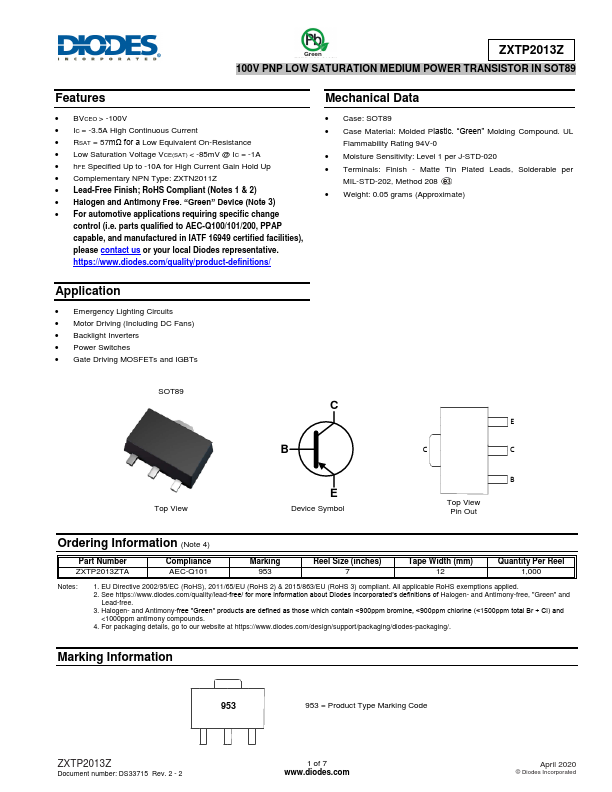

Green ZXTP2013Z 100V PNP LOW SATURATION MEDIUM POWER TRANSISTOR IN SOT89 Features  BVCEO > -100V  IC = -3.5A High Continuous Current  RSAT = 57mΩ for a Low Equivalent On-Resistance  Low Saturation Voltage VCE(SAT) < -85mV @ IC = -1A  hFE Specified Up to -10A for High Current Gain Hold Up  Complementary NPN Type: ZXTN2011Z  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Mechanical Data  Case: SOT89  Case Material: Molded Plastic.
