ZXTP2014Z - PNP Transistor

Key Features

  • s.
  • 3 amps continuous current.
  • Up to 10 amps peak current.
  • Very low saturation voltages.
  • Marking: 2014 1.70 0.1 0.42 0.1 0.46 0.1 Transistors 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Peak Pulse Current Power Dissipation at TA=25°C (a) Power Dissipation at TA=25°C (b) Thermal Resistance Junction to Ambient Junction Temperature St.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXTP2014Z PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2014Z 140V PNP HIGH-VOLTAGE TRANSISTOR DIODES
ZXTP2014G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors
ZXTP2014G 140V PNP MEDIUM POWER LOW SATURATION TRANSISTOR Diodes
ZXTP2012A PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
ZXTP2013Z PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

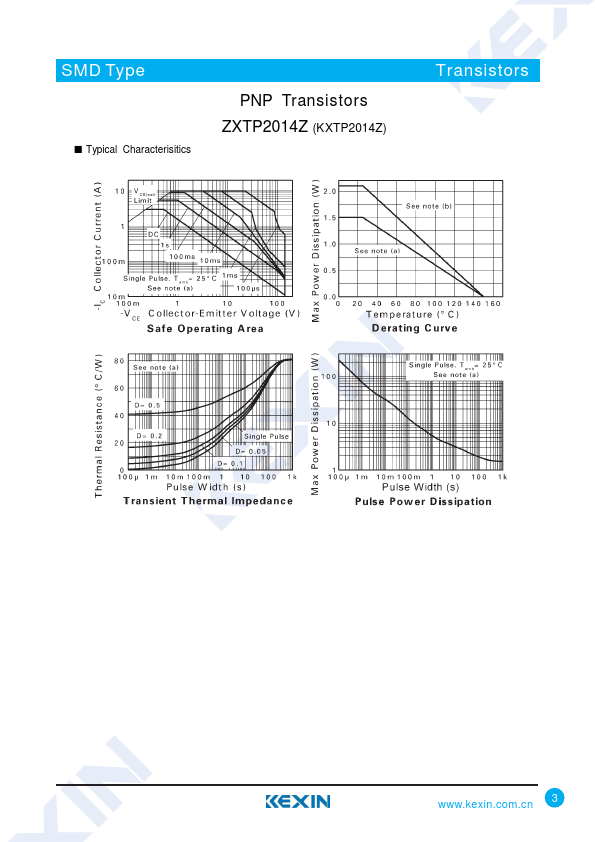

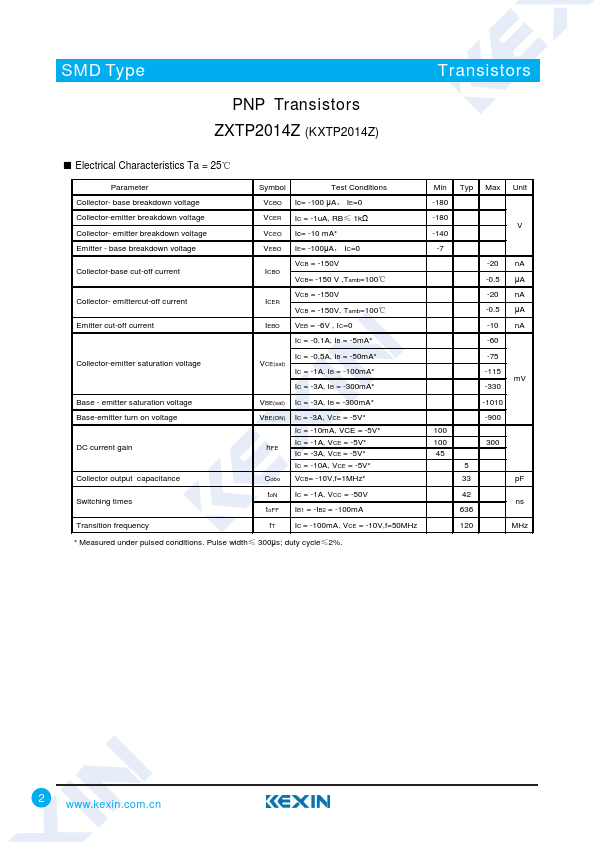

SMD Type PNP Transistors ZXTP2014Z (KXTP2014Z) ■ Features ● 3 amps continuous current ● Up to 10 amps peak current ● Very low saturation voltages ● Marking: 2014 1.70 0.1 0.42 0.1 0.46 0.1 Transistors 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Peak Pulse Current Power Dissipation at TA=25°C (a) Power Dissipation at TA=25°C (b) Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC ICM PD RθJA TJ Tstg Rating -180 -140 -7 -3 -10 1.5 2.1 83 60 150 -55 to 150 Unit V A w ℃/W ℃ NOTES: (a) For a device surface mounted on 25mm x 25mm x 1.
