NDT90N03 - N-Channel MOSFET

Features

  • s.
  • VDS (V) = 30V.
  • ID = 85 A (VGS = 10V).
  • RDS(ON) ＜ 5mΩ (VGS = 10V).
  • RDS(ON) ＜ 8mΩ (VGS = 4.5V).
  • High Power and current handing capability.
  • Lead free product is acquired.
  • Surface Mount Package +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 Unit: mm 1 Gate 2 D.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT90N04 N-Channel MOSFET
NDT110N03 N-Channel MOSFET
NDT15N10 N-Channel MOSFET
NDT50N03 N-Channel MOSFET
NDT5N20 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

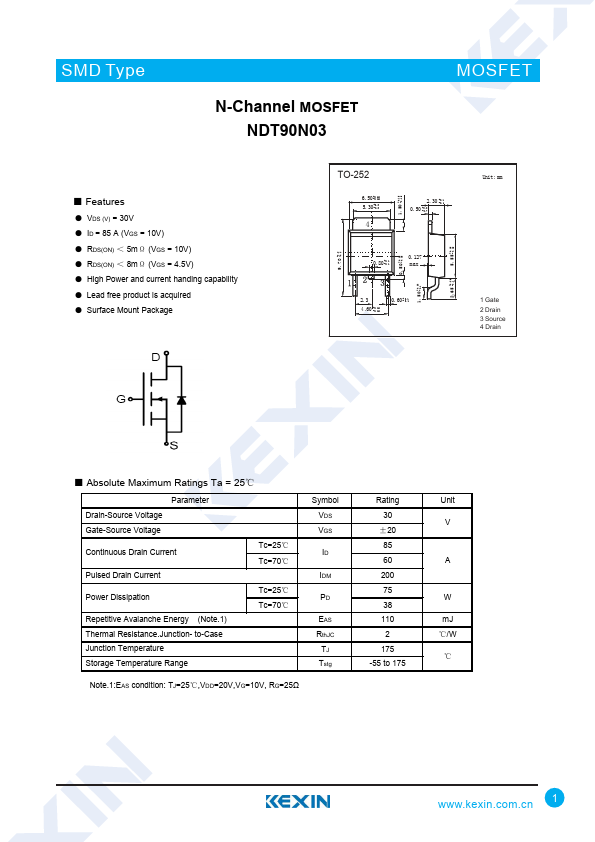

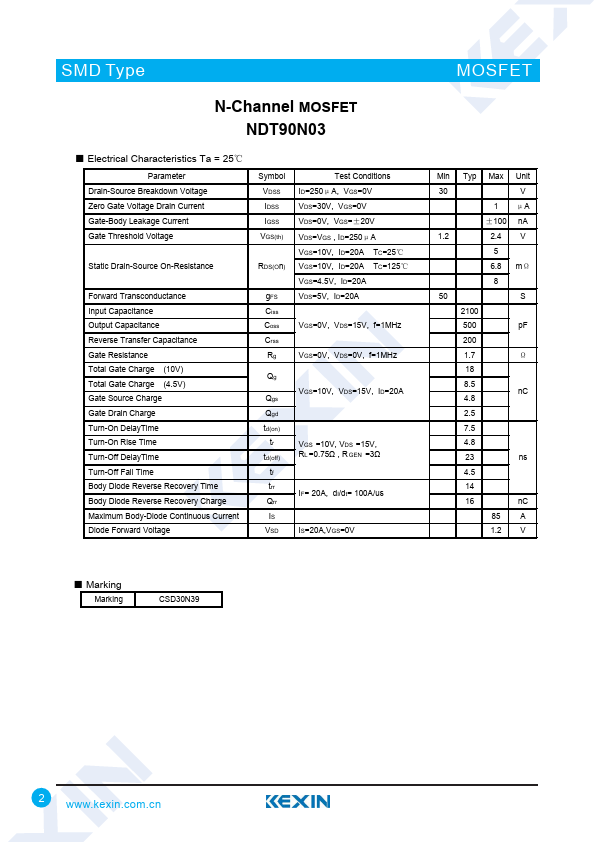

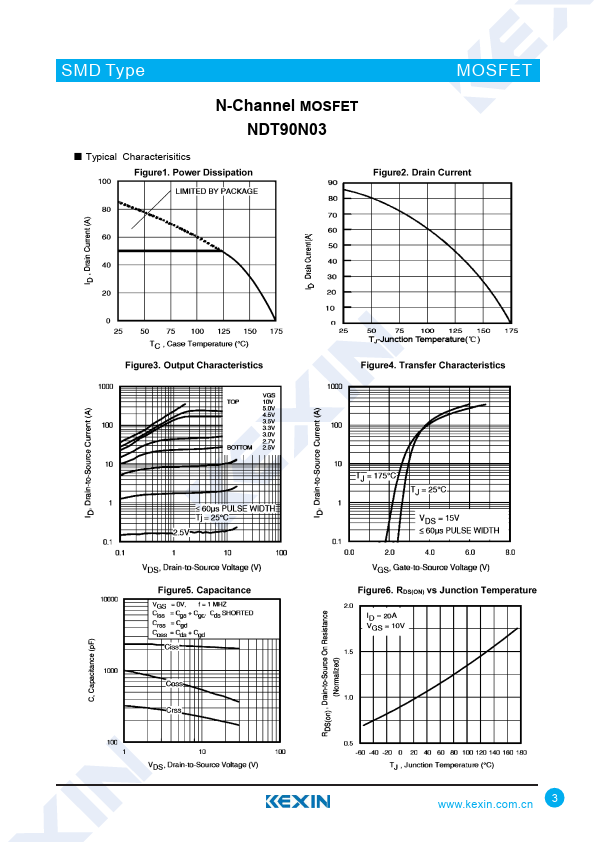

SMD Type N-Channel MOSFET NDT90N03 MOSFET ■ Features ● VDS (V) = 30V ● ID = 85 A (VGS = 10V) ● RDS(ON) ＜ 5mΩ (VGS = 10V) ● RDS(ON) ＜ 8mΩ (VGS = 4.5V) ● High Power and current handing capability ● Lead free product is acquired ● Surface Mount Package +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 0.80+0.1 -0.1 0.127 m ax + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 + 5.55 0.15 -0.15 Unit: mm 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Tc=25℃ Tc=70℃ Power Dissipation Repetitive Avalanche Energy (Note.1) Thermal Resistance.
