NDT70N03 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 33A (VGS = 10V).
  • RDS(ON) ＜ 4.3mΩ (VGS = 10V) D.
  • RDS(ON) ＜ 6.5mΩ (VGS = 4.5V) G S + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 0.15 1 .5 0 -0.15 3.80 + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Volta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT70N06 N-Channel Trench Power MOSFET
NDT06N02 N-Channel MOSFET
NDT06N03 N-Channel MOSFET
NDT110N03 N-Channel MOSFET
NDT15N10 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

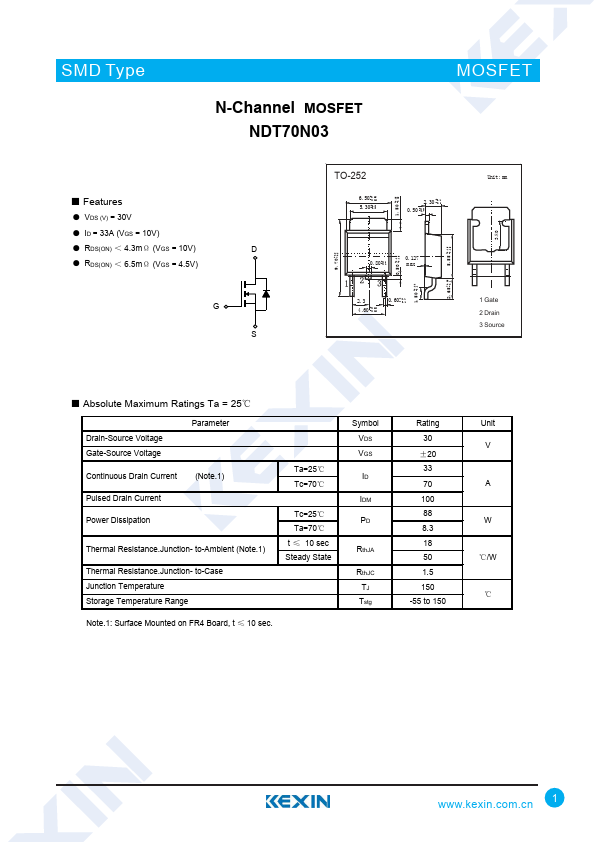

SMD Type N-Channel MOSFET NDT70N03 MOSFET ■ Features ● VDS (V) = 30V ● ID = 33A (VGS = 10V) ● RDS(ON) ＜ 4.3mΩ (VGS = 10V) D ● RDS(ON) ＜ 6.5mΩ (VGS = 4.5V) G S + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 0.15 1 .5 0 -0.15 3.80 + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 2.65 0.25 -0.1 1 Gate 2 Drain 3 Source ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current (Note.1) Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient (Note.1) Thermal Resistance.
