KX4N60F - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 2.4 A (VGS = 10V).
  • RDS(ON) ＜ 2.5Ω (VGS = 10V) MOSFET N-Channel MOSFET KX4N60F TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 D G S 1.47max 9.75 ±0.20 1 23 2.54typ 2.54typ 0.80 ±0.20 0.50 ±0.20 2.76 ±0.20.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Continuous Drain Current Ta=25℃ Ta=100℃ Pulsed Drain Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KX4N60 N-Channel MOSFET
KX4N15DY N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

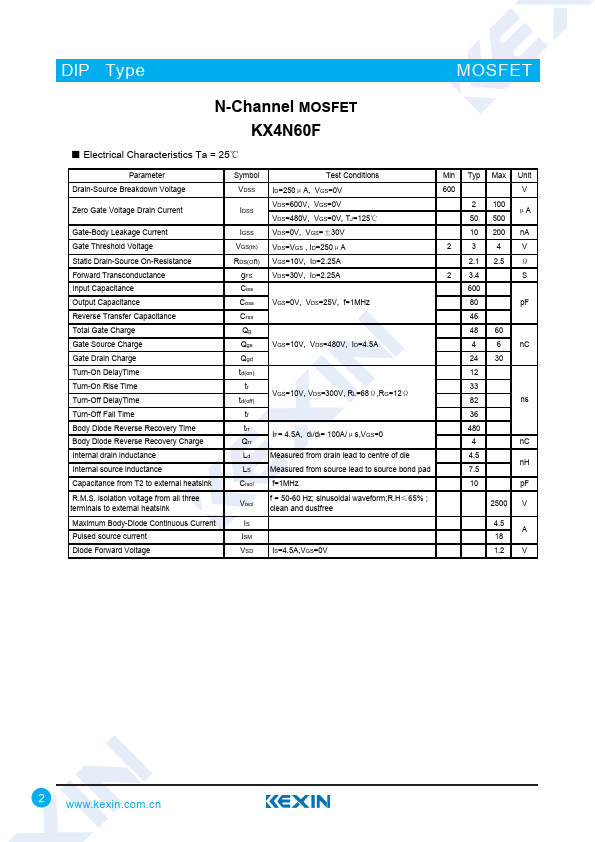

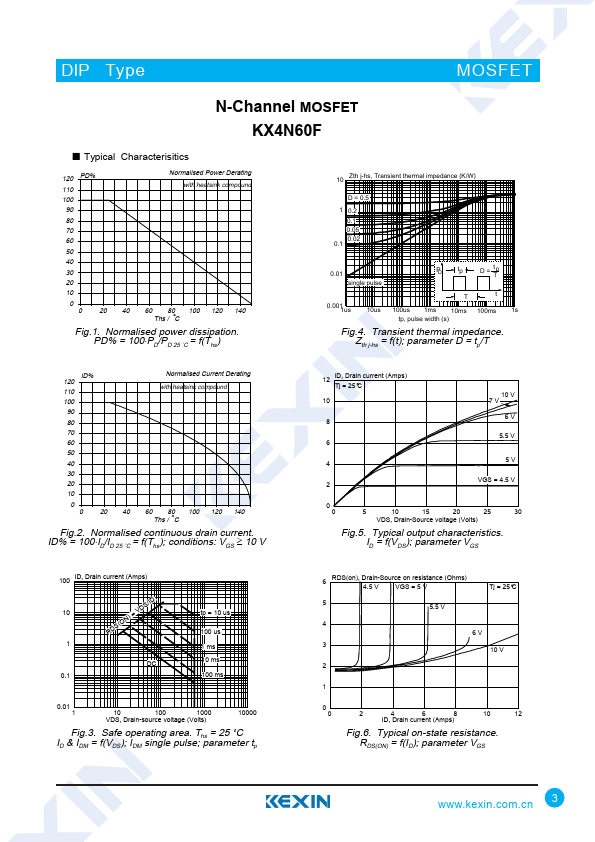

DIP Type ■ Features ● VDS (V) = 600V ● ID = 2.4 A (VGS = 10V) ● RDS(ON) ＜ 2.5Ω (VGS = 10V) MOSFET N-Channel MOSFET KX4N60F TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 D G S 1.47max 9.75 ±0.20 1 23 2.54typ 2.54typ 0.80 ±0.20 0.50 ±0.20 2.76 ±0.20 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Continuous Drain Current Ta=25℃ Ta=100℃ Pulsed Drain Current Repetitive and Non-Repetitive Avalanche Current Power Dissipation Non-Repetitive Avalanche Energy Repetitive Avalanche Energy Thermal Resistance.Junction- to-Ambient Thermal Resistance.
