KRF7805Z - Power MOSFET

Key Features

  • Absolute Maximum Ratings Ta = 25 Parameter Symbol Continuous Drain Current, VGS @ 10V,TA = 25 ID Continuous Drain Current, VGS @ 10V,TA = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation Ta = 25.
  • 1 PD Power Dissipation Ta = 70.
  • 1 PD Linear Derating Factor Gate-to-Source Voltage VGS Drain-Source Voltage VDS Operating Junction and Storage Temperature Range TJ,TSTG Junction-to-Ambient R JA Junction-to-Drain Lead R JL Single Pulse Avalanche Energy.
  • 3 EAS Av.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7855 N-Channel MOSFET
KRF7104 Power MOSFET
KRF7105 Power MOSFET
KRF7204 Power MOSFET
KRF7205 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

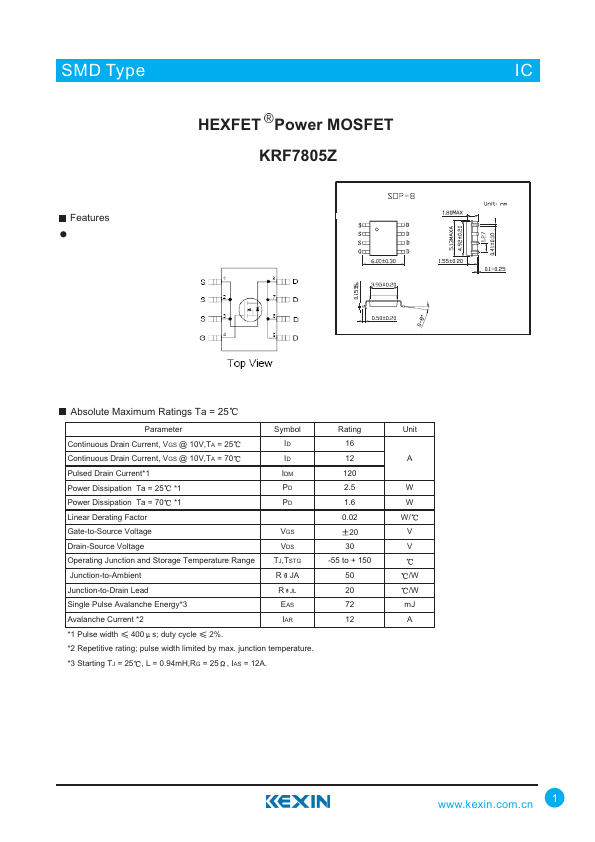

SMD Type ICIC HEXFET Power MOSFET KRF7805Z Features Absolute Maximum Ratings Ta = 25 Parameter Symbol Continuous Drain Current, VGS @ 10V,TA = 25 ID Continuous Drain Current, VGS @ 10V,TA = 70 ID Pulsed Drain Current*1 IDM Power Dissipation Ta = 25 *1 PD Power Dissipation Ta = 70 *1 PD Linear Derating Factor Gate-to-Source Voltage VGS Drain-Source Voltage VDS Operating Junction and Storage Temperature Range TJ,TSTG Junction-to-Ambient R JA Junction-to-Drain Lead R JL Single Pulse Avalanche Energy*3 EAS Avalanche Current *2 IAR *1 Pulse width 400 s; duty cycle 2%. *2 Repetitive rating; pulse width limited by max. junction temperature. *3 Starting TJ = 25 , L = 0.94mH,RG = 25 , IAS = 12A. Rating 16 12 120 2.5 1.6 0.
