KRF7703 - Power MOSFET

Key Features

  • Ultra Low On-Resistance P-Channel MOSFET Very Small SOIC Package Low Profile ( 1.2mm) Available in Tape & Reel TSSOP-8 Unit: mm 1,5,8: Drain 2,3,6,7: Source 4: Gate Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ -10V @ Ta = 25 ID Continuous Drain Current, VGS @ -10V @ Ta = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation.
  • 2 @Ta= 25 PD Power Dissipation.
  • 2 @Ta = 70 PD Linear Derating Factor Gate-to-S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7706 Power MOSFET
KRF7750 Power MOSFET
KRF7756 Power MOSFET
KRF7104 Power MOSFET
KRF7105 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

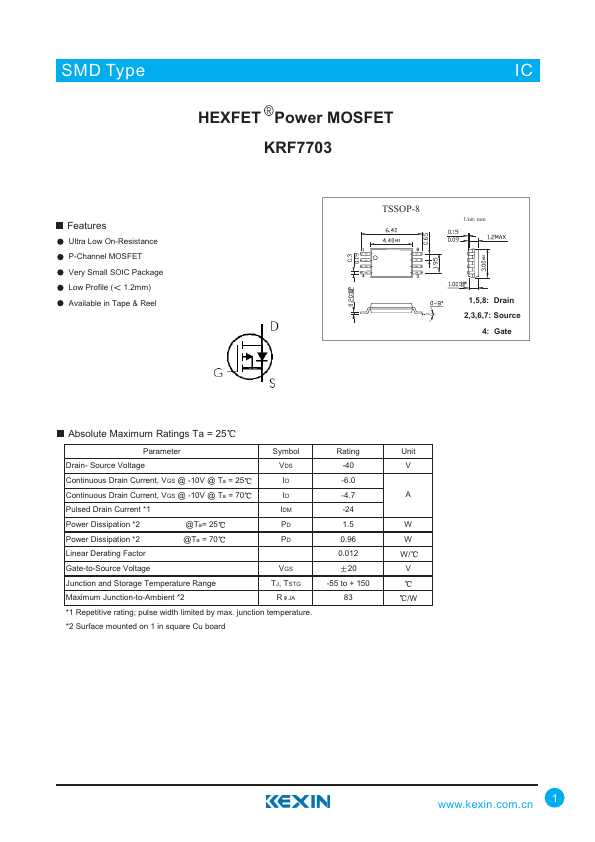

SMD Type ICIC HEXFET Power MOSFET KRF7703 Features Ultra Low On-Resistance P-Channel MOSFET Very Small SOIC Package Low Profile ( 1.2mm) Available in Tape & Reel TSSOP-8 Unit: mm 1,5,8: Drain 2,3,6,7: Source 4: Gate Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ -10V @ Ta = 25 ID Continuous Drain Current, VGS @ -10V @ Ta = 70 ID Pulsed Drain Current *1 IDM Power Dissipation *2 @Ta= 25 PD Power Dissipation *2 @Ta = 70 PD Linear Derating Factor Gate-to-Source Voltage VGS Junction and Storage Temperature Range TJ, TSTG Maximum Junction-to-Ambient *2 R JA *1 Repetitive rating; pulse width limited by max. junction temperature. *2 Surface mounted on 1 in square Cu board Rating -40 -6.0 -4.7 -24 1.5 0.
