KRF7476PBF - Power MOSFET

Key Features

  • s.
  • VDS=15 V.
  • RDS(on)=0.008Ω@VGS=4.5V.
  • RDS(on)= 0.03Ω @VGS= 2.8 V S 1 S 2 S 3 G 4 AA 8 D 7 D 6 D 5 D Top View.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Maximum Power Dissipation Maximum Junction-to-Ambient Operating Junction and Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ, Tstg Rating 15 ±12 15 120 2.5 50 -55 to 150 Unit V V A A W °C/W ℃ www. kexin. co.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KRF-V6300D AUDIO VIDEO CONTROL CENTER INSTRUCTION MANUAL Kenwood
KRF-V7050D Audio Video Surround Receiver Kenwood
KRF-V7510D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-V8010D AV SURROUND RECEIVER SERVICE MANUAL Kenwood
KRF-X9070D AUDIO VIDEO SURROUND RECEIVER MANUAL Kenwood

Other Datasheets by Kexin Semiconductor

Part Number Description
KRF7401 Power MOSFET
KRF7410 Power MOSFET
KRF7460 Power MOSFET
KRF7494 Power MOSFET
KRF7104 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

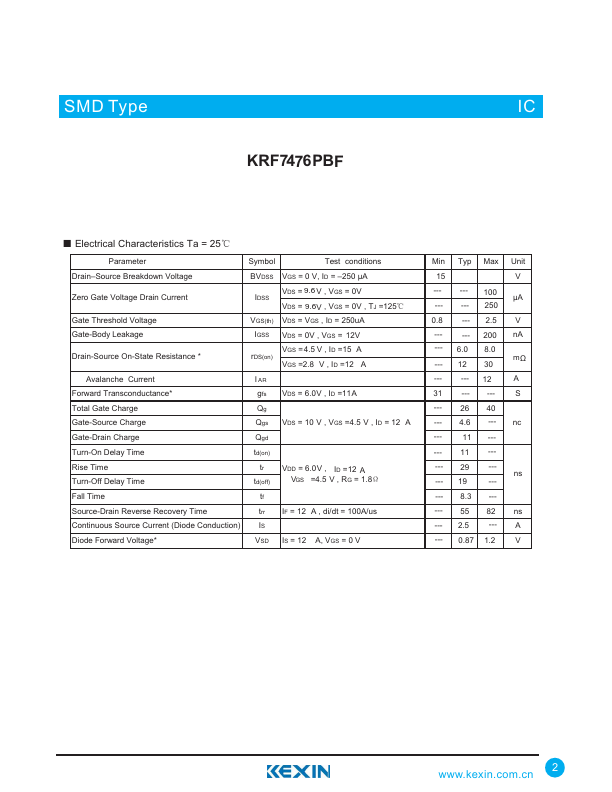

SMD Type HEXFET Power MOSFET KRF7476PBF MOSFET ■ Features ● VDS=15 V ● RDS(on)=0.008Ω@VGS=4.5V ● RDS(on)= 0.03Ω @VGS= 2.8 V S 1 S 2 S 3 G 4 AA 8 D 7 D 6 D 5 D Top View ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Maximum Power Dissipation Maximum Junction-to-Ambient Operating Junction and Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ, Tstg Rating 15 ±12 15 120 2.5 50 -55 to 150 Unit V V A A W °C/W ℃ www.kexin.com.cn 1 SMD Type ICIC SMD Type ICIC KRF7476PBF ■ Electrical Characteristics Ta = 25℃ Parameter Symbol Test conditions Drain–Source Breakdown Voltage Zero Gate Voltage Drain Current Gate Threshold Voltage BVDSS VGS = 0 V, ID = –250 μA VDS = 9.
