BCF32 Datasheet NPN General Purpose Transistors

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	BCF32
Manufacturer	Kexin Semiconductor
File Size	35.18 KB
Description	NPN General Purpose Transistors
Download	BCF32 Download (PDF)

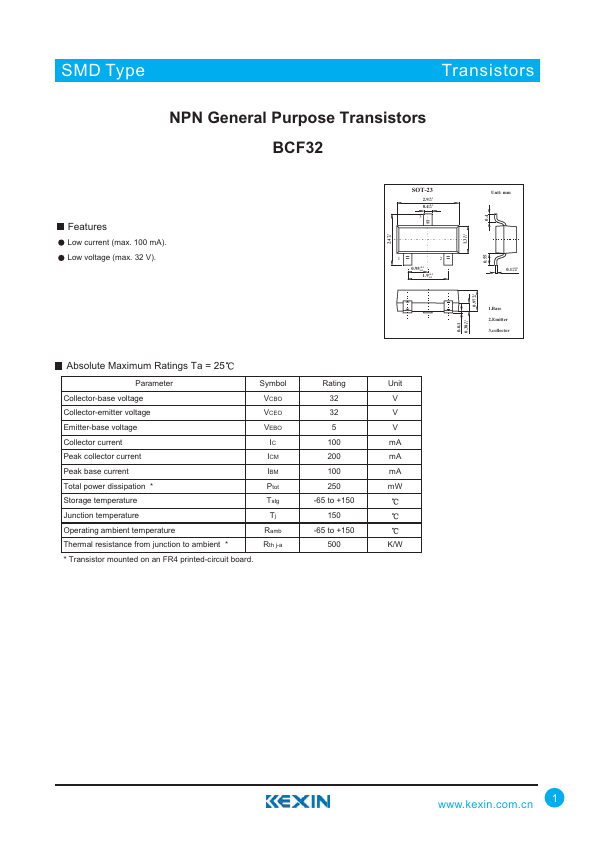

SMD Type TransistIoCrs NPN General Purpose Transistors BCF32.

Low current (max. 100 mA). Low voltage (max. 32 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 32 V Collector-emitter voltage VCEO 32 V Emitter-base voltage VEBO 5 V Collector current IC 100 mA Peak collector current ICM 200 mA Peak base current IBM 100 mA Total power dissipation.
Ptot 250 mW Storage temperature Tstg -65 to +.
