BCF29 Datasheet PNP General Purpose Transistors

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	BCF29
Manufacturer	Kexin Semiconductor
File Size	36.13 KB
Description	PNP General Purpose Transistors
Download	BCF29 Download (PDF)

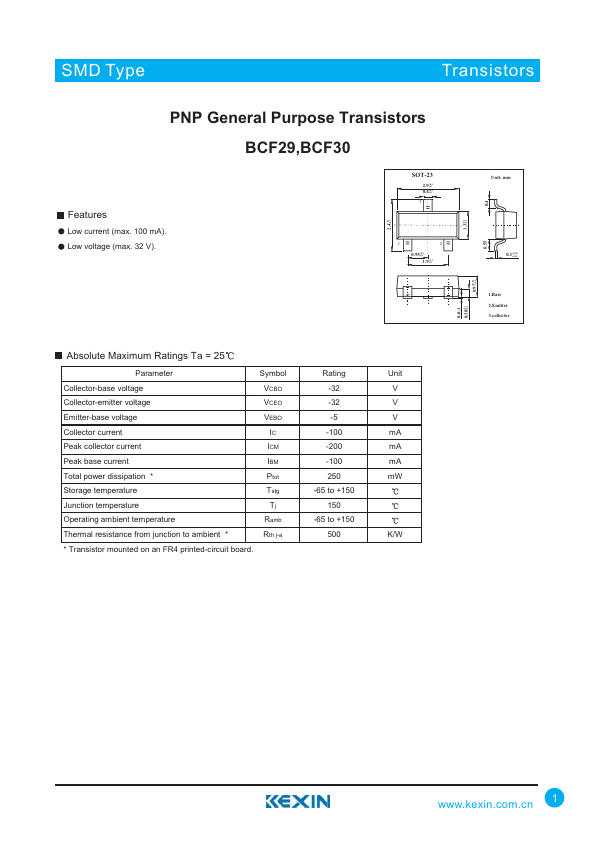

SMD Type TransistIoCrs PNP General Purpose Transistors BCF29,BCF30.

Low current (max. 100 mA). Low voltage (max. 32 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO -32 V Collector-emitter voltage VCEO -32 V Emitter-base voltage VEBO -5 V Collector current IC -100 mA Peak collector current ICM -200 mA Peak base current IBM -100 mA Total power dissipation.
Ptot 250 mW Storage temperature Tstg -6.
