AO6801E - Dual P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-2A (VGS =-10V).
  • RDS(ON) ＜ 110mΩ (VGS =-10V).
  • RDS(ON) ＜ 135mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 185mΩ (VGS =-2.5V).
  • ESD Rating: 2000V HBM D1 D2 G1 G2 S1 S2 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 0.15 +0.02 -0.02 +0.1 1.1 -0.1 1 Gate1 4 Drain2 2 Source2 5 Source1 3 Gate2 6 Drain1 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6801E 20V Dual P-Channel MOSFET VBsemi
AO6801E 30V Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO6801 Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO6801 Dual P-Channel MOSFET VBsemi
AO6801A 30V Dual P-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6801 Dual P-Channel MOSFET
AO6801A Dual P-Channel MOSFET
AO6800 Dual N-Channel MOSFET
AO6800-HF Dual N-Channel MOSFET
AO6802 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

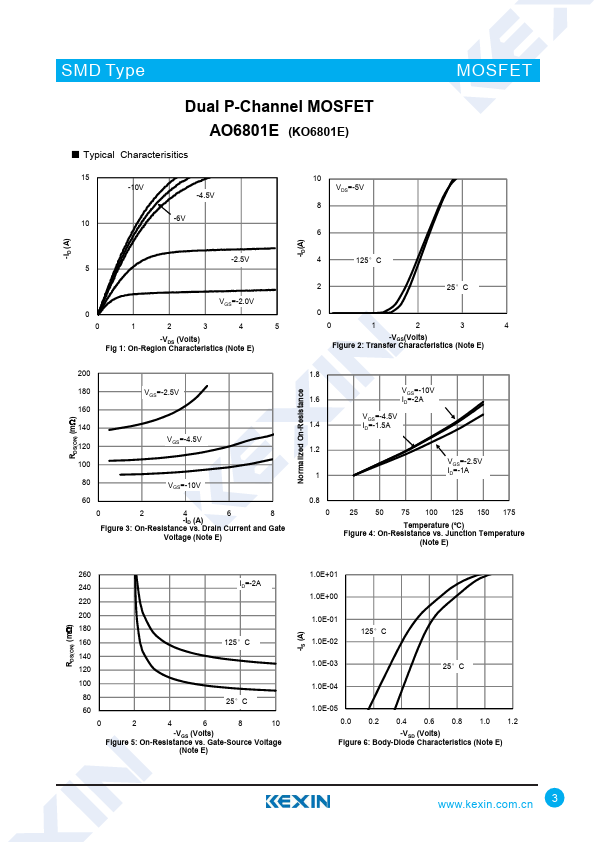

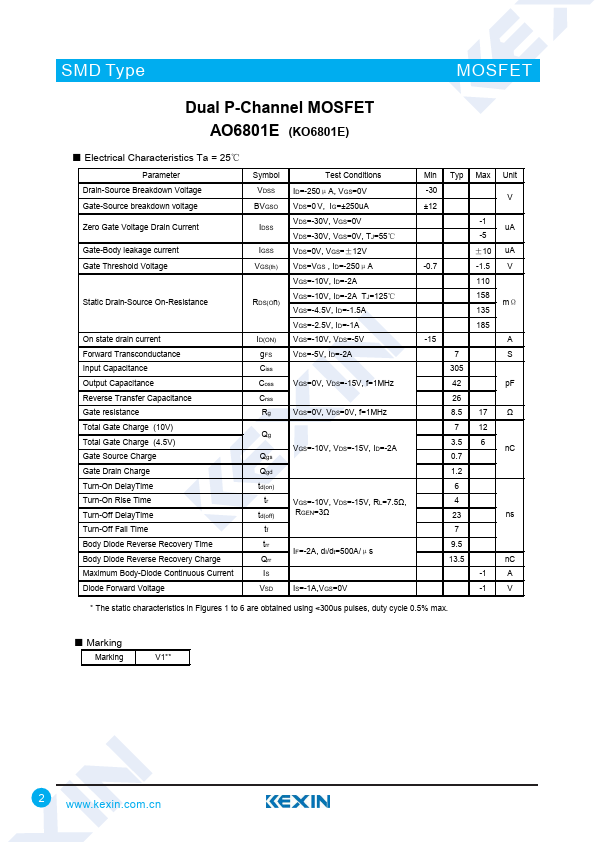

SMD Type Dual P-Channel MOSFET AO6801E (KO6801E) MOSFET ■ Features ● VDS (V) =-30V ● ID =-2A (VGS =-10V) ● RDS(ON) ＜ 110mΩ (VGS =-10V) ● RDS(ON) ＜ 135mΩ (VGS =-4.5V) ● RDS(ON) ＜ 185mΩ (VGS =-2.5V) ● ESD Rating: 2000V HBM D1 D2 G1 G2 S1 S2 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 0.15 +0.02 -0.02 +0.1 1.1 -0.1 1 Gate1 4 Drain2 2 Source2 5 Source1 3 Gate2 6 Drain1 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
