AO3418 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 3.8 A (VGS = 10V).
  • RDS(ON) ＜ 55mΩ (VGS = 10V).
  • RDS(ON) ＜ 65mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 85mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3418 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO3418 N-Channel MOSFET KERSEMI
AO3418L N-Channel MOSFET KERSEMI
AO3410 N-Channel MOSFET Alpha & Omega Semiconductors
AO3411 P-Channel MOSFET Freescale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3410 N-Channel MOSFET
AO3414 N-Channel MOSFET
AO3416 N-Channel MOSFET
AO3400 N-Channel MOSFET
AO3400A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

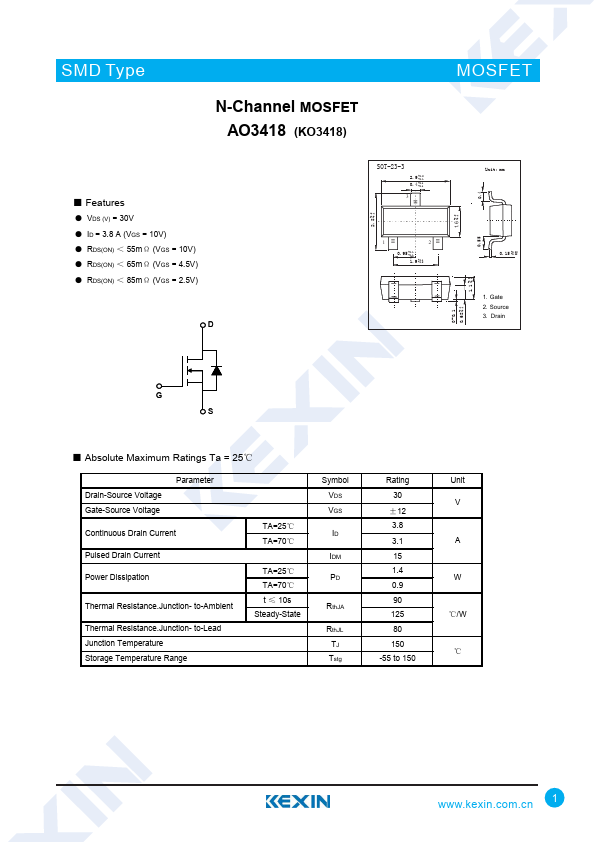

SMD Type N-Channel MOSFET AO3418 (KO3418) MOSFET ■ Features ● VDS (V) = 30V ● ID = 3.8 A (VGS = 10V) ● RDS(ON) ＜ 55mΩ (VGS = 10V) ● RDS(ON) ＜ 65mΩ (VGS = 4.5V) ● RDS(ON) ＜ 85mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
