AO3410 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 5.8 A (VGS = 10V).
  • RDS(ON) ＜ 28mΩ (VGS = 10V).
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 52mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 70mΩ (VGS = 1.8V) N-Channel MOSFET AO3410 (KO3410) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3410 N-Channel MOSFET Alpha & Omega Semiconductors
AO3411 P-Channel MOSFET Freescale
AO3413 20V P-Channel MOSFET Alpha & Omega Semiconductors
AO3414 20V N-Channel MOSFET Alpha & Omega Semiconductors
AO3414 N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3414 N-Channel MOSFET
AO3416 N-Channel MOSFET
AO3400 N-Channel MOSFET
AO3400A N-Channel MOSFET
AO3401 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

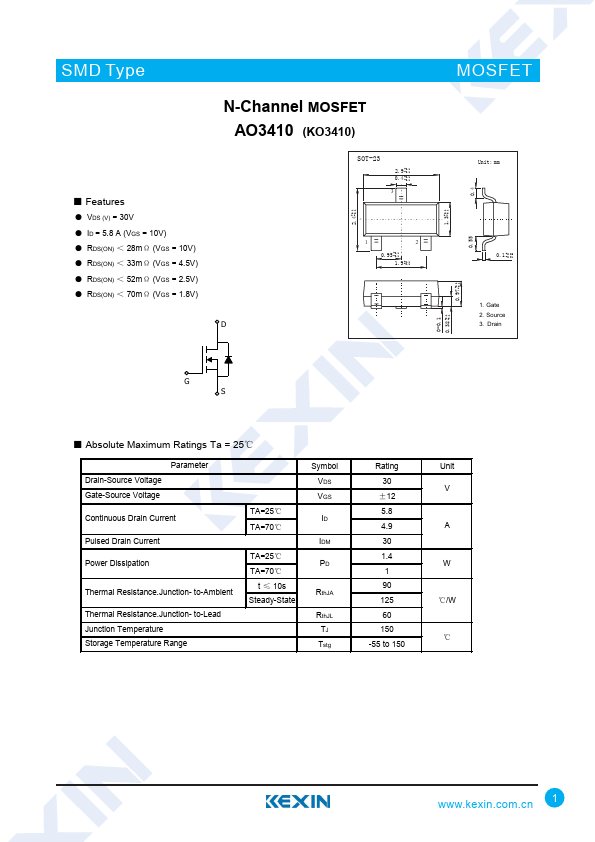

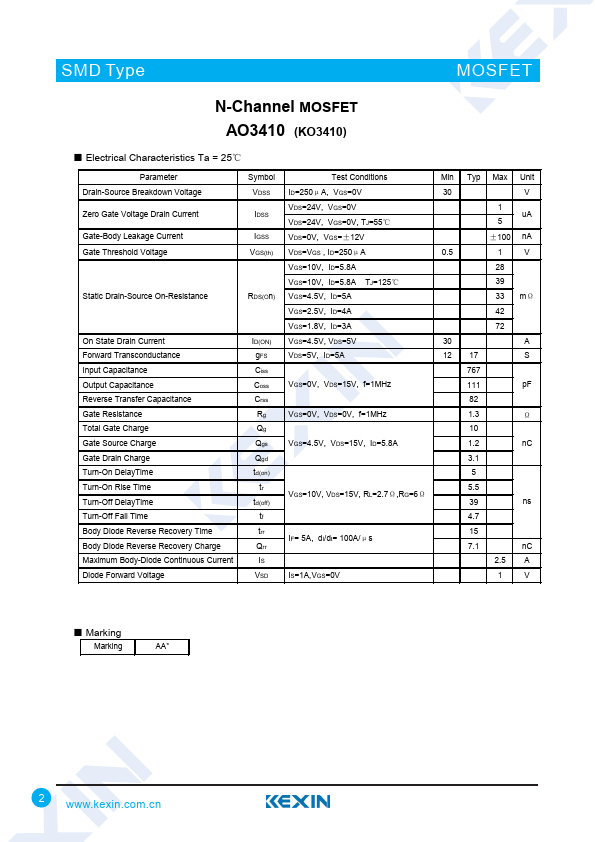

SMD Type ■ Features ● VDS (V) = 30V ● ID = 5.8 A (VGS = 10V) ● RDS(ON) ＜ 28mΩ (VGS = 10V) ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) ● RDS(ON) ＜ 52mΩ (VGS = 2.5V) ● RDS(ON) ＜ 70mΩ (VGS = 1.8V) N-Channel MOSFET AO3410 (KO3410) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
