AO3400A - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 5.7 A (VGS = 10V).
  • RDS(ON) ＜ 26.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 32mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 48mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Dra.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3400A 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO3400 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO3400 N-Channel MOSFET HOTTECH
AO3400 30V N-Channel MOSFET JinYu
AO3400 N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3400 N-Channel MOSFET
AO3401 P-Channel MOSFET
AO3402 N-Channel MOSFET
AO3403 P-Channel MOSFET
AO3404 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

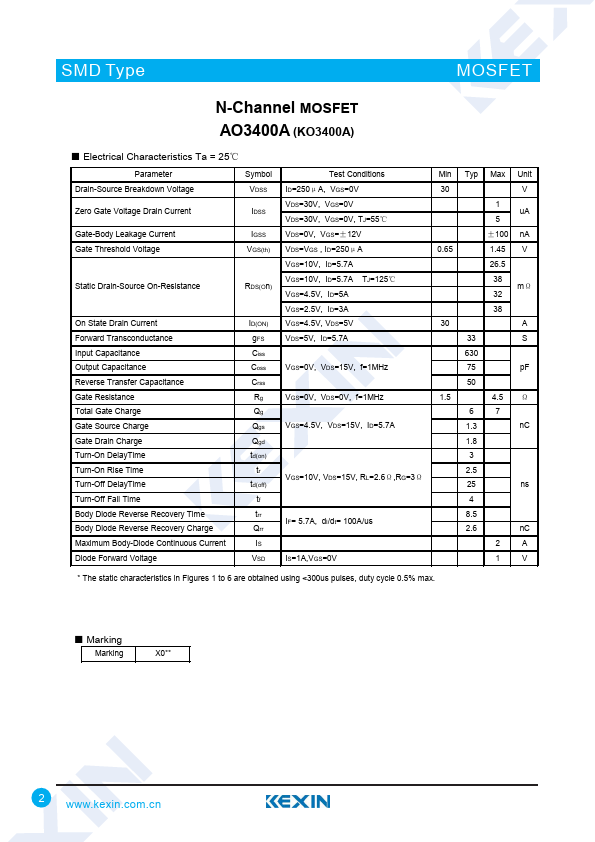

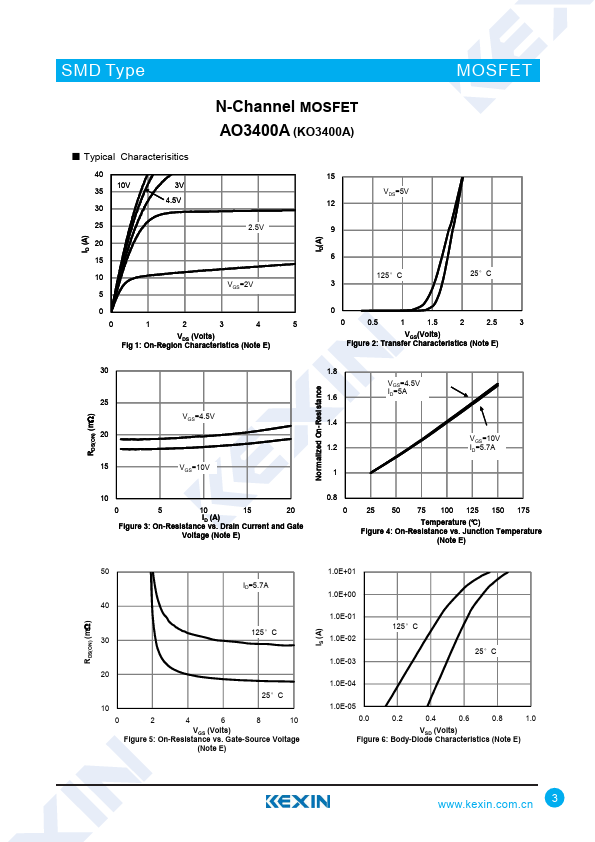

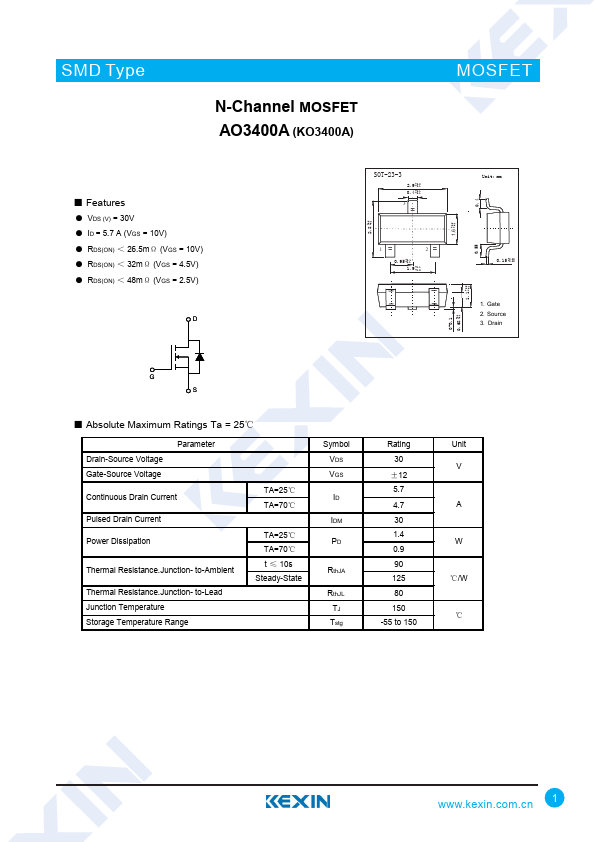

SMD Type N-Channel MOSFET AO3400A (KO3400A) MOSFET ■ Features ● VDS (V) = 30V ● ID = 5.7 A (VGS = 10V) ● RDS(ON) ＜ 26.5mΩ (VGS = 10V) ● RDS(ON) ＜ 32mΩ (VGS = 4.5V) ● RDS(ON) ＜ 48mΩ (VGS = 2.5V) D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 G S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
