78M12 - Three Terminal Positive Voltage Regulator

Features

  • s.
  • Maximum Output current IOM: 0.5 A.
  • Output voltage VO: 12V.
  • Continuous total dissipation PD: 1.25W +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 +0.15 0.50 -0.15 +0.28 1.50 -0.1 0.80+0.1 -0.1 0.127 max 12 2.3 4.60+0.15 -0.15 3 0.60+0.1 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit Vi 35 V TOPR 0 to +125 ℃.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
78M12 Voltage Regulator BLUE ROCKET ELECTRONICS
78M12 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR Unisonic Technologies
78M12 POSITIVE VOLTAGE REGULATORS STMicroelectronics
78M12 3-TERMINAL POSITIVE VOLTAGE REGULATOR New Japan Radio
78M12 500mA Positive Voltage Regulator ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
78M05 Three Terminal Positive Voltage Regulator
78M06 Three Terminal Positive Voltage Regulator
78M08 Three Terminal Positive Voltage Regulator
78M09 Three Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

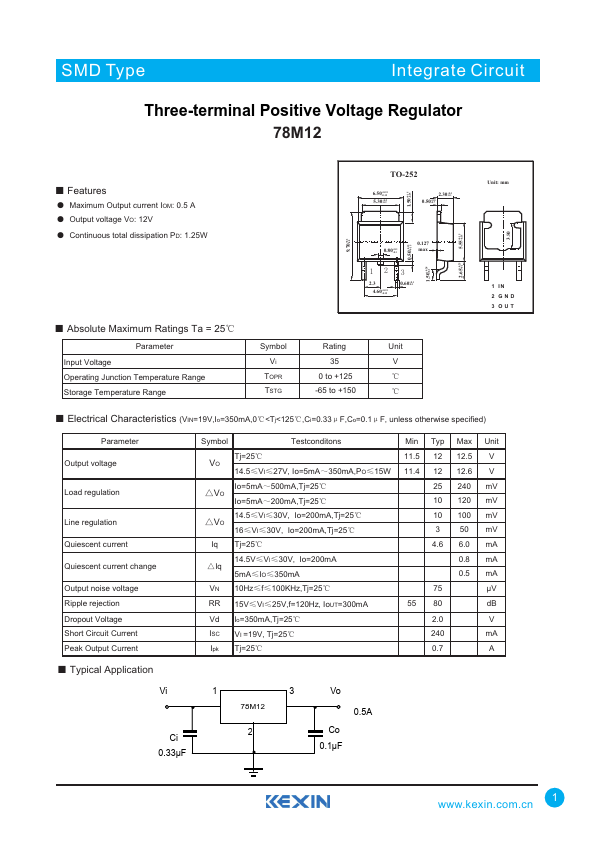

SMD Type Integrate Circuit Three-terminal Positive Voltage Regulator 78M12 ■ Features ● Maximum Output current IOM: 0.5 A ● Output voltage VO: 12V ● Continuous total dissipation PD: 1.25W +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 +0.15 0.50 -0.15 +0.28 1.50 -0.1 0.80+0.1 -0.1 0.127 max 12 2.3 4.60+0.15 -0.15 3 0.60+0.1 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit Vi 35 V TOPR 0 to +125 ℃ TSTG -65 to +150 ℃ +0.25 2.65 -0.1 +0.15 5.55 -0.15 Unit: mm 1 IN 2 GND 3 OUT 3.80 ■ Electrical Characteristics (VIN=19V,Io=350mA,0℃
