78M05 - Three Terminal Positive Voltage Regulator

Features

  • s.
  • Maximum Output Current IO: 500mA.
  • Output Voltage VO: 5V.

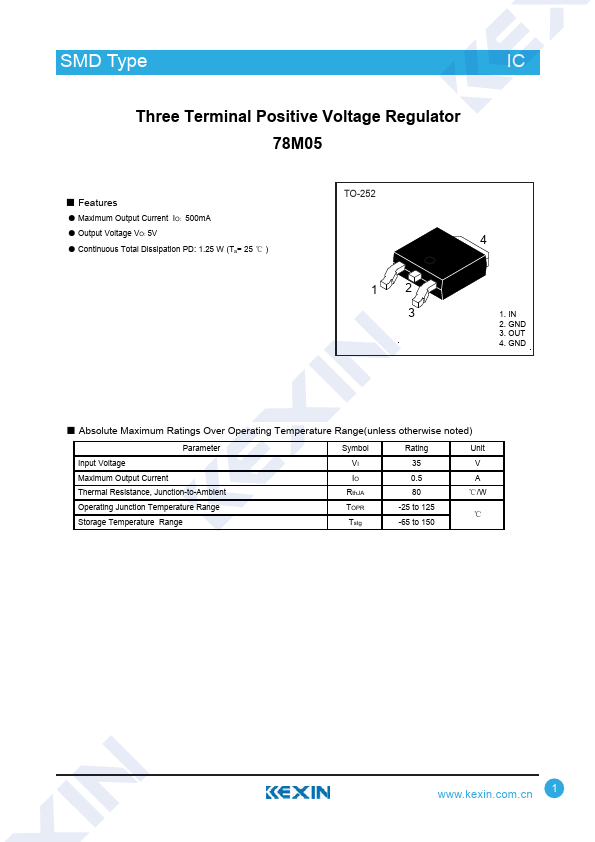

  • Continuous Total Dissipation PD: 1.25 W (Ta= 25 ℃ ) TO-252 12 3 4 1. IN 2. GND 3. OUT 4. GND.
  • Absolute Maximum Ratings Over Operating Temperature Range(unless otherwise noted) Parameter Input Voltage Maximum Output Current Thermal Resistance, Junction-to-Ambient Operating Junction Temperature Range Storage Temperature Range Symbol VI IO RthJA TOPR Tstg Rating 35 0.5 80 -25 to 125 -65 to 150 Unit V A ℃/W ℃ www.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
78M05 0.5A THREE TERMINAL POSITIVE VOLTAGE REGULATORS Toshiba Semiconductor
78M05 3-Terminal 0.5A Positive Voltage Regulator Fairchild Semiconductor
78M05 3-Terminal Positive Voltage Regulator INCHANGE
78M05 500mA Positive Voltage Regulator ON Semiconductor
78M05 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR Unisonic Technologies

Other Datasheets by Kexin Semiconductor

Part Number Description
78M06 Three Terminal Positive Voltage Regulator
78M08 Three Terminal Positive Voltage Regulator
78M09 Three Terminal Positive Voltage Regulator
78M12 Three Terminal Positive Voltage Regulator

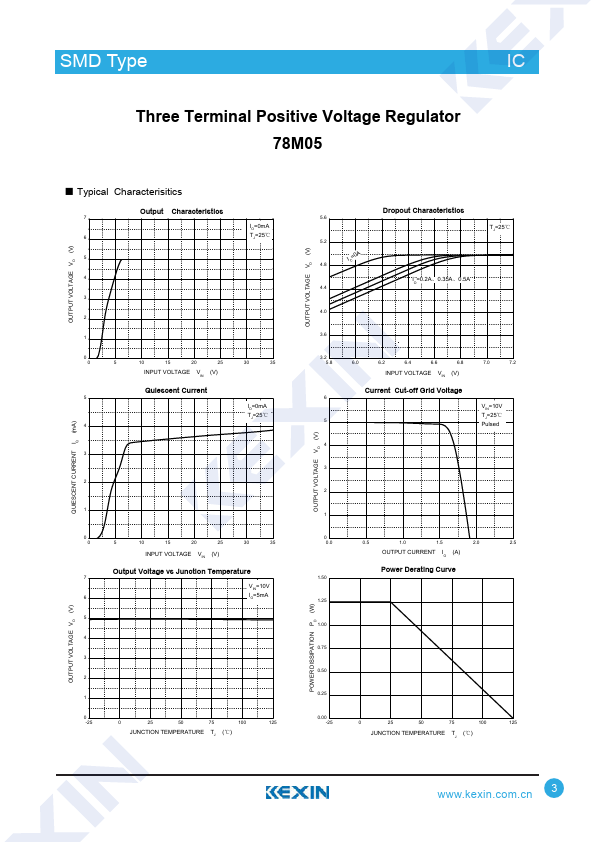

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

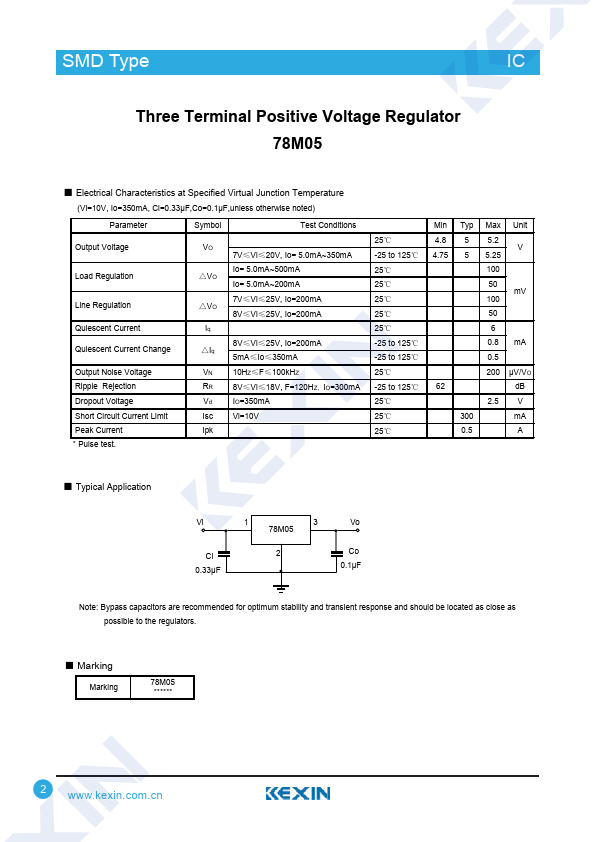

SSMMDD TTyyppee IntegTratnesCisitrocIrCusit Three Terminal Positive Voltage Regulator 78M05 ■ Features ● Maximum Output Current IO: 500mA ● Output Voltage VO: 5V ● Continuous Total Dissipation PD: 1.25 W (Ta= 25 ℃ ) TO-252 12 3 4 1. IN 2. GND 3. OUT 4. GND ■ Absolute Maximum Ratings Over Operating Temperature Range(unless otherwise noted) Parameter Input Voltage Maximum Output Current Thermal Resistance, Junction-to-Ambient Operating Junction Temperature Range Storage Temperature Range Symbol VI IO RthJA TOPR Tstg Rating 35 0.5 80 -25 to 125 -65 to 150 Unit V A ℃/W ℃ www.kexin.com.cn 1 SMD Type IC Three Terminal Positive Voltage Regulator 78M05 ■ Electrical Characteristics at Specified Virtual Junction Temperature (Vi=10V, Io=350mA, Ci=0.33μF,Co=0.
