78M08 - Three Terminal Positive Voltage Regulator

Features

  • s.
  • Maximum Output Current IO= 500mA.
  • Output Voltage VO=8V.
  • Internal Thermal Overload Protection.
  • Internal Short Circuit Current Limiting.
  • Output Transistor Safe Operating Area Protection +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1. IN 2. GND 3. OUT 4. G.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
78M08 Voltage Regulator BLUE ROCKET ELECTRONICS
78M08 3-TERMINALS 0.5A POSITIVE VOLTAGE REGULATOR Unisonic Technologies
78M08 POSITIVE VOLTAGE REGULATORS STMicroelectronics
78M08 3-TERMINAL POSITIVE VOLTAGE REGULATOR New Japan Radio
78M08 500mA Positive Voltage Regulator ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
78M05 Three Terminal Positive Voltage Regulator
78M06 Three Terminal Positive Voltage Regulator
78M09 Three Terminal Positive Voltage Regulator
78M12 Three Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

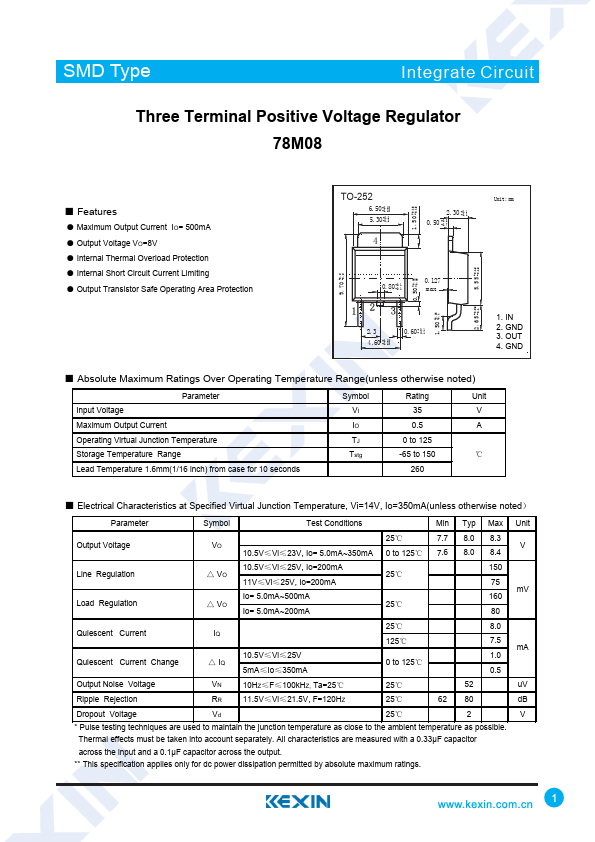

SMD Type IntegTrraatnesCisitrocrusit Three Terminal Positive Voltage Regulator 78M08 ■ Features ● Maximum Output Current IO= 500mA ● Output Voltage VO=8V ● Internal Thermal Overload Protection ● Internal Short Circuit Current Limiting ● Output Transistor Safe Operating Area Protection +0 9.70 .2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 1.50 0.15 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 5.55 0.15 -0.15 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 + 0.25 2 .6 5 -0.1 1. IN 2. GND 3. OUT 4. GND ■ Absolute Maximum Ratings Over Operating Temperature Range(unless otherwise noted) Parameter Input Voltage Maximum Output Current Operating Virtual Junction Temperature Storage Temperature Range Lead Temperature 1.
