2KK5089DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 30 V.
  • ID = 10 A.
  • Low RDS(on) trench technology.
  • Fast Switching Speed.
  • Low Thermal Impedance.
  • ESD Protected Gate MOSFET N-Channel MOSFET 2KK5089DFN DFN2X2-6 DFN2X2-6 bottom view.
  • Absolute Maximum Ratings (Ta = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TA=25℃ ID TA=70℃ Pulsed Drain Current (Note 2) IDM Avalanche Current IAS Avalanche Energy L = 0.1 mH EA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5081DFN N-Channel MOSFET
2KK5082DFN N-Channel MOSFET
2KK5085DFN N-Channel MOSFET
2KK5086DFN N-Channel MOSFET
2KK5087DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

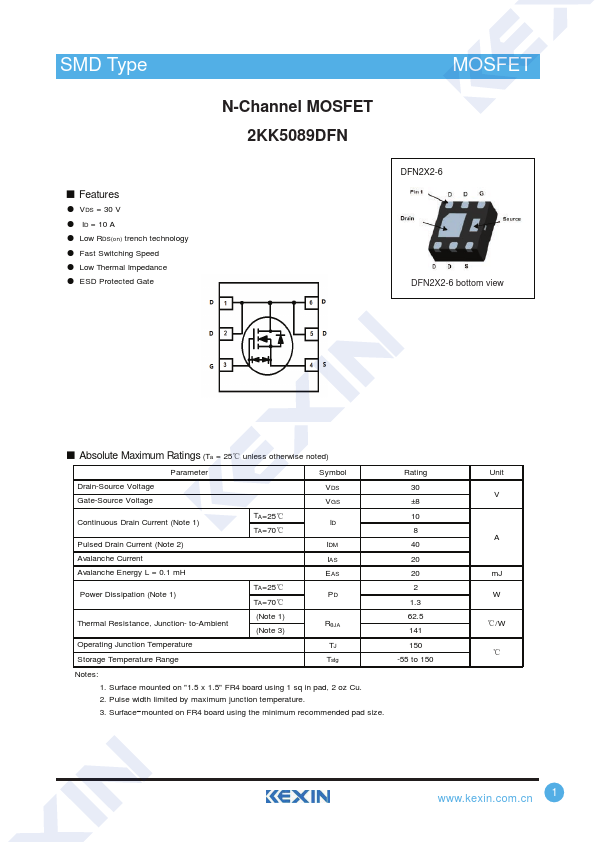

SMD Type ■ Features ● VDS = 30 V ● ID = 10 A ● Low RDS(on) trench technology ● Fast Switching Speed ● Low Thermal Impedance ● ESD Protected Gate MOSFET N-Channel MOSFET 2KK5089DFN DFN2X2-6 DFN2X2-6 bottom view ■ Absolute Maximum Ratings (Ta = 25℃ unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (Note 1) TA=25℃ ID TA=70℃ Pulsed Drain Current (Note 2) IDM Avalanche Current IAS Avalanche Energy L = 0.1 mH EAS Power Dissipation (Note 1) TA=25℃ PD TA=70℃ (Note 1) Thermal Resistance, Junction- to-Ambient RθJA (Note 3) Operating Junction Temperature TJ Storage Temperature Range Tstg Notes: 1. Surface mounted on "1.5 x 1.5" FR4 board using 1 sq in pad, 2 oz Cu. 2.
