2KK5082DFN - N-Channel MOSFET

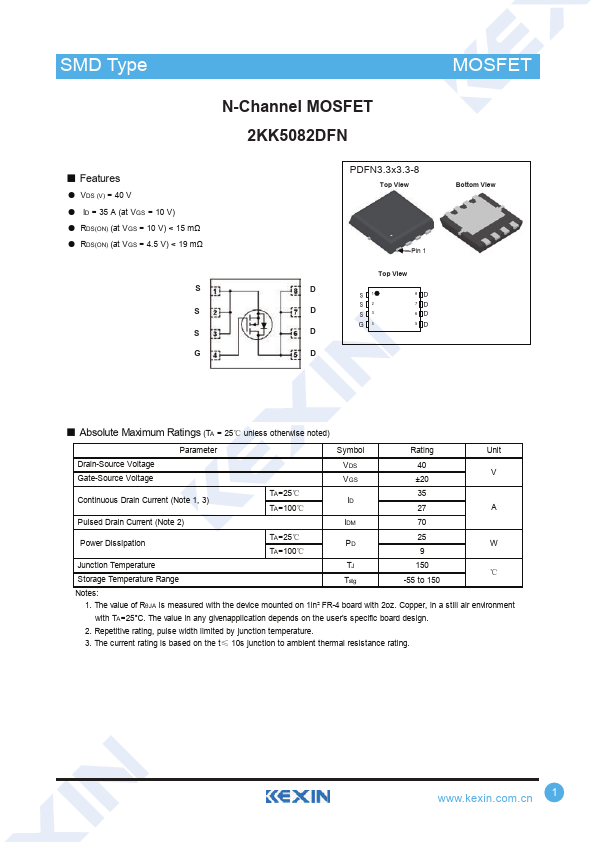

Key Features

  • s.
  • VDS (V) = 40 V.
  • ID = 35 A (at VGS = 10 V).
  • RDS(ON) (at VGS = 10 V) < 15 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 19 mΩ S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View D 1 8 2 7 D 3 6 4 5 D D Bottom View.
  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 TA=25℃ 35 Continuous Drain Current (Note 1, 3) ID TA=100℃ 27 A Pulsed Drain Current (Note 2) IDM.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5081DFN N-Channel MOSFET
2KK5085DFN N-Channel MOSFET
2KK5086DFN N-Channel MOSFET
2KK5087DFN N-Channel MOSFET
2KK5088 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

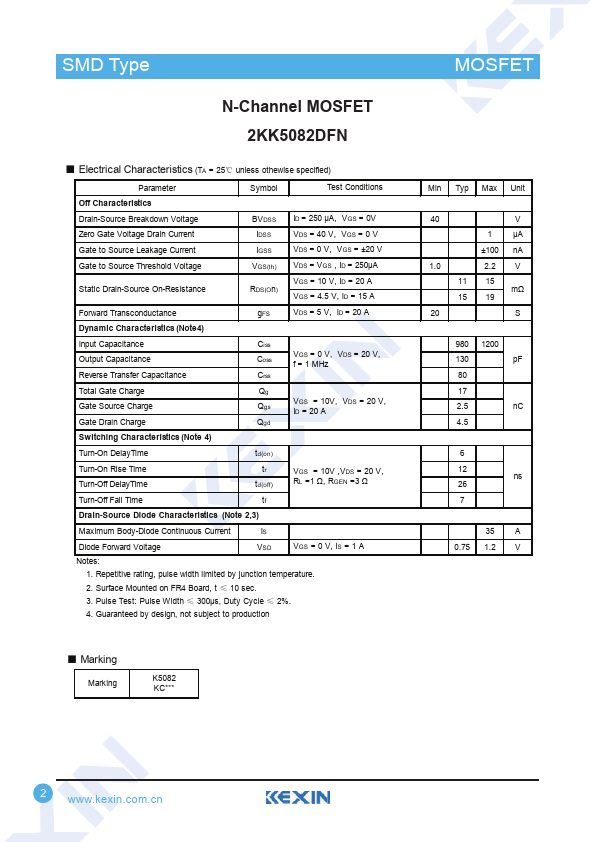

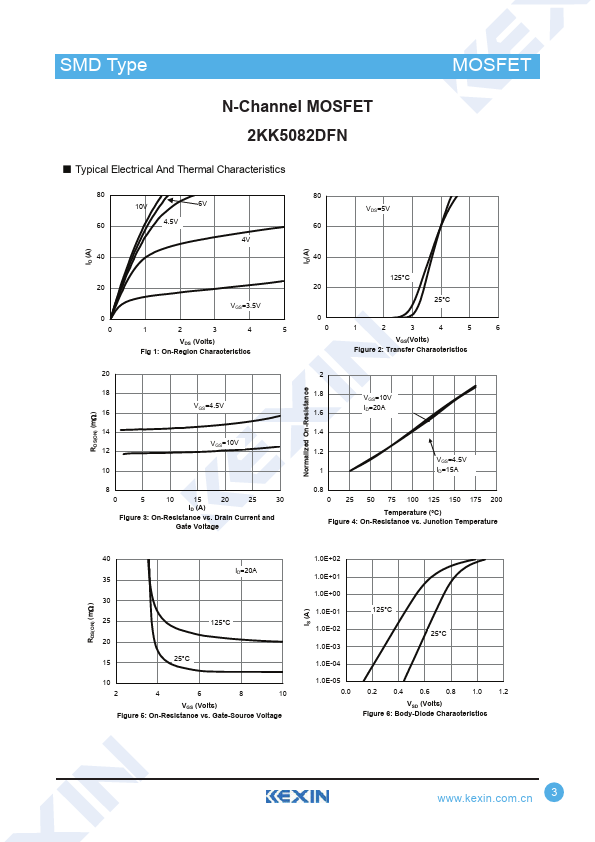

SMD Type MOSFET N-Channel MOSFET 2KK5082DFN ■ Features ● VDS (V) = 40 V ● ID = 35 A (at VGS = 10 V) ● RDS(ON) (at VGS = 10 V) < 15 mΩ ● RDS(ON) (at VGS = 4.5 V) < 19 mΩ S S S G PDFN3.3x3.3-8 Top View Pin 1 Top View D 1 8 2 7 D 3 6 4 5 D D Bottom View ■ Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ±20 TA=25℃ 35 Continuous Drain Current (Note 1, 3) ID TA=100℃ 27 A Pulsed Drain Current (Note 2) IDM 70 Power Dissipation TA=25℃ 25 PD W TA=100℃ 9 Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Notes: 1. The value of RθJA is measured with the device mounted on 1in² FR-4 board with 2oz.
