2KK5086DFN - N-Channel MOSFET

Key Features

  • s.
  • VDS = 30 V.
  • ID (at VGS=10V) = 50 A.
  • RDS(ON) (at VGS = 10 V) < 2.8 mΩ.
  • RDS(ON) (at VGS = 4.5 V) < 5.0 mΩ.
  • 100% UIS Tested.

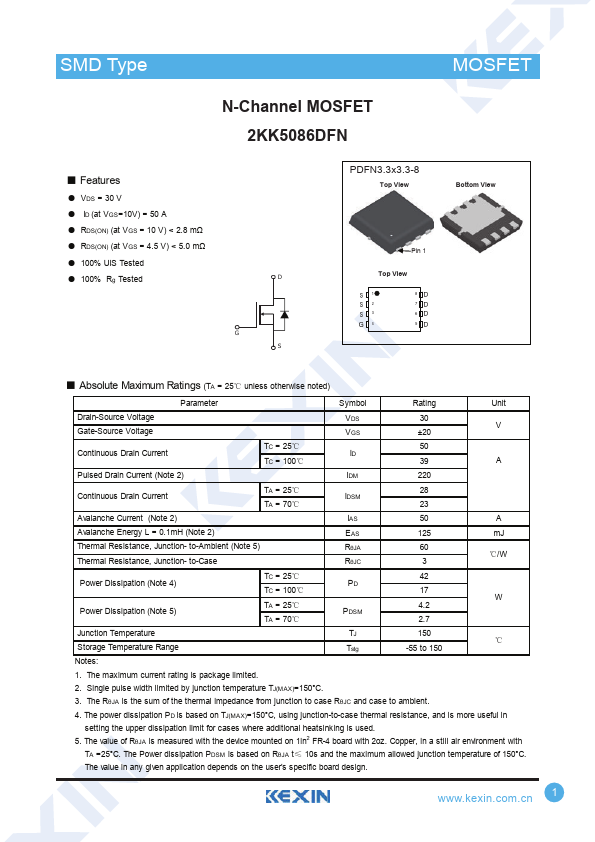

  • 100% Rg Tested D G S PDFN3.3x3.3-8 Top View Pin 1 Top View 1 8 2 7 3 6 4 5 Bottom View.

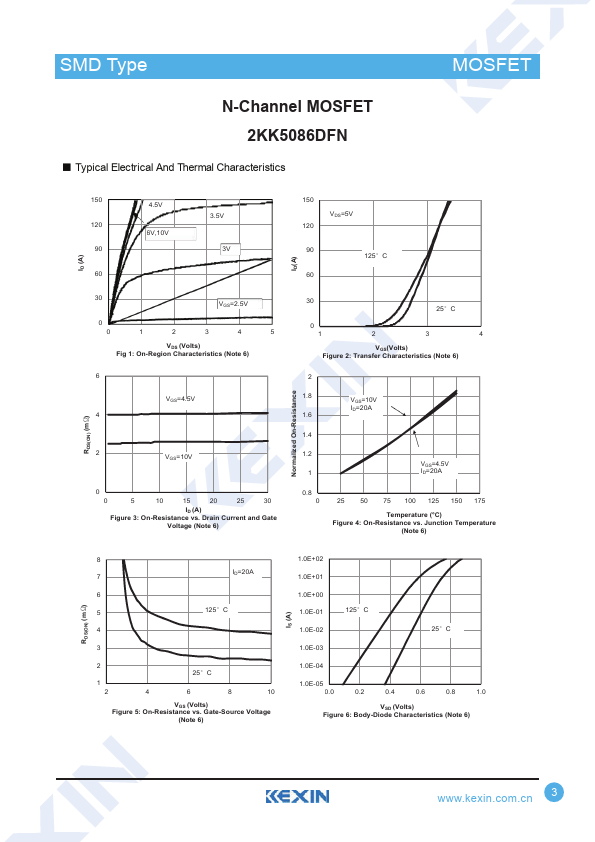

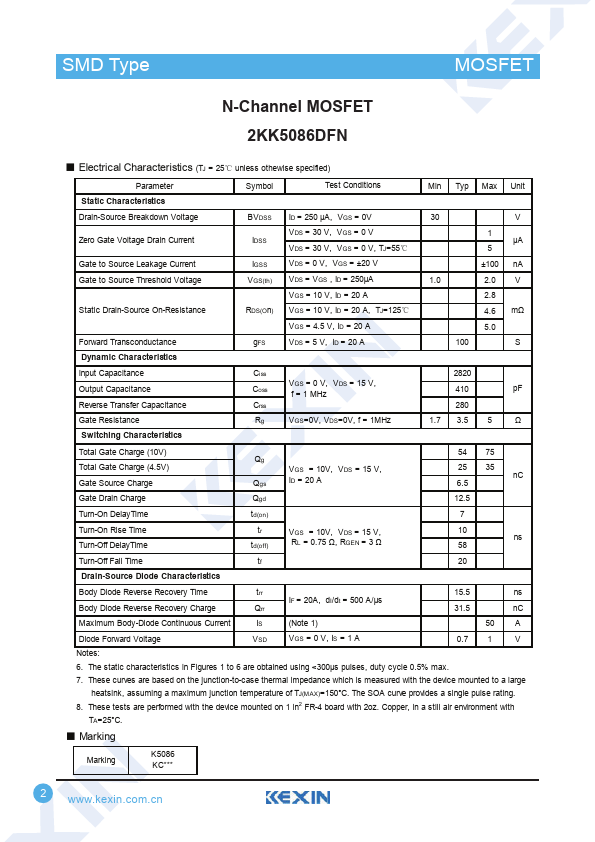

  • Absolute Maximum Ratings (TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ±20 Continuous Drain Current TC = 25℃ 50 ID TC = 100℃ 39 A Pulsed Drain.
